Thinlite 4K family

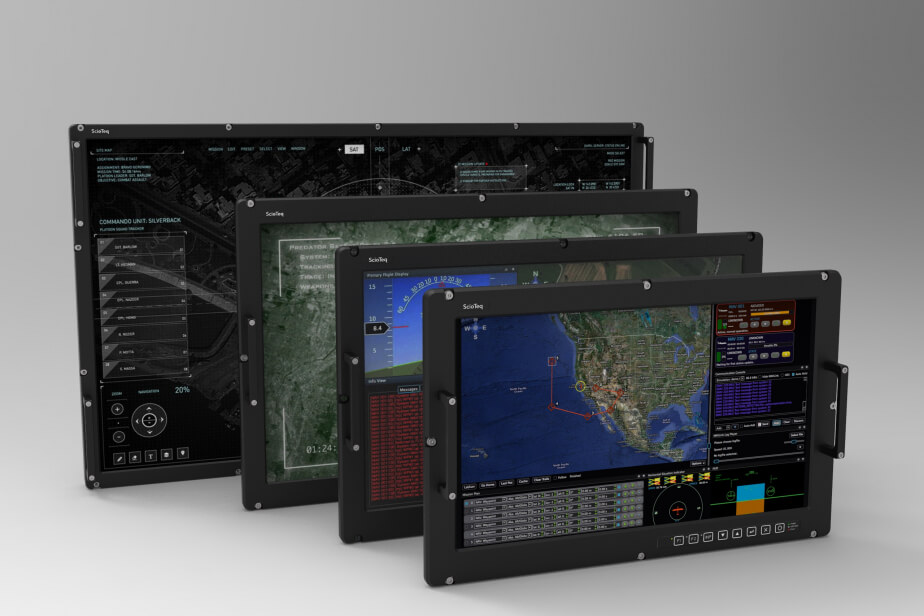

Four screen size options; 24", 27”, 32”, or 43”
Základní informace
Brilliant Clarity
- IPS Panel with UHD 3840 x 2160 @ 60Hz native resolution providing over 8 million pixels for the ultimate picture clarity
- Color Accuracy – 1.07 billion colors for perfect image consistency
Exceptional Performance
- Excellent viewing angle (up to 178º x 178º); enables users to see undistorted images from any angle
- Exclusive optically bonded LCD glass with anti-glare and anti-reflective coating for superior viewing in any light conditions
- Custom LED Backlight with outstanding dimming and contrast control
- Patented LCD Flicker Compensation (LFC) reducing operator fatigue
Maximum Flexibility – Chose your Configuration
- Four screen size options; 24", 27”, 32”, or 43”
- Full connectivity – 2 x DP 1.2, 1 x DVI-I, USB 2.0 for touchscreen control, and Ethernet for management and control
- Multi-touch PCAP, IR, or no touchscreen
- AC or DC power
- Choose ruggedization and qualification level, commercial or MIL connectors, extended temperature range, 901D
- Configurable multi-window compositions and PIP
Extreme Rugged

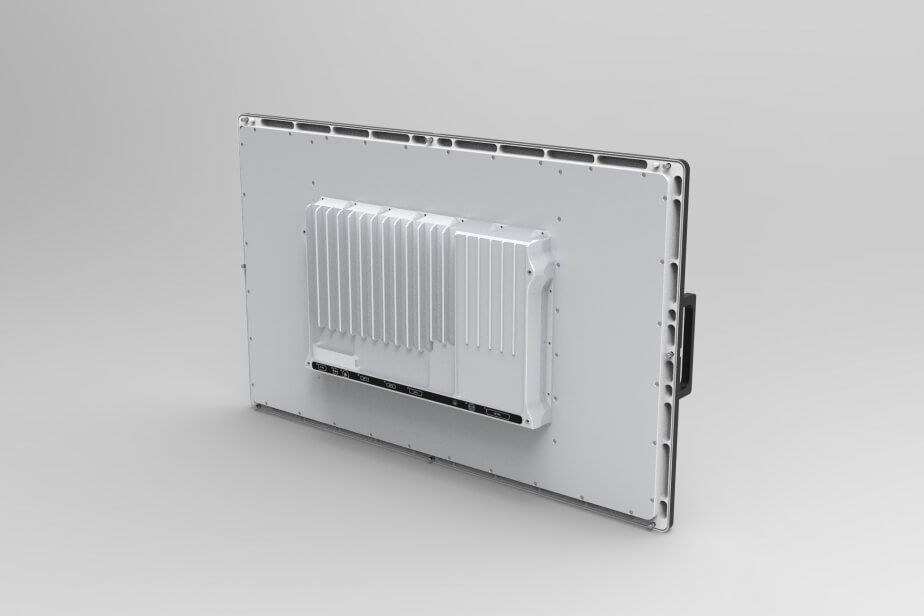

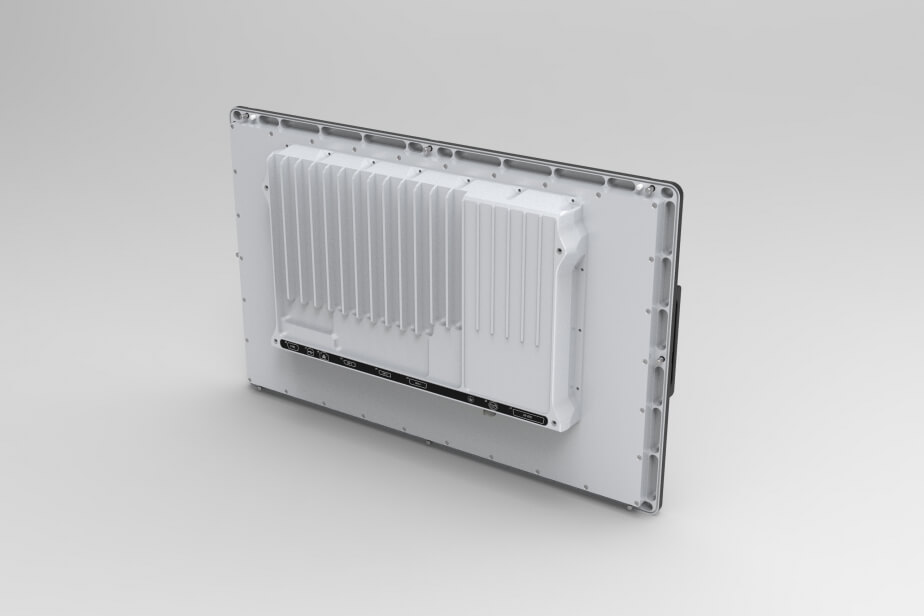

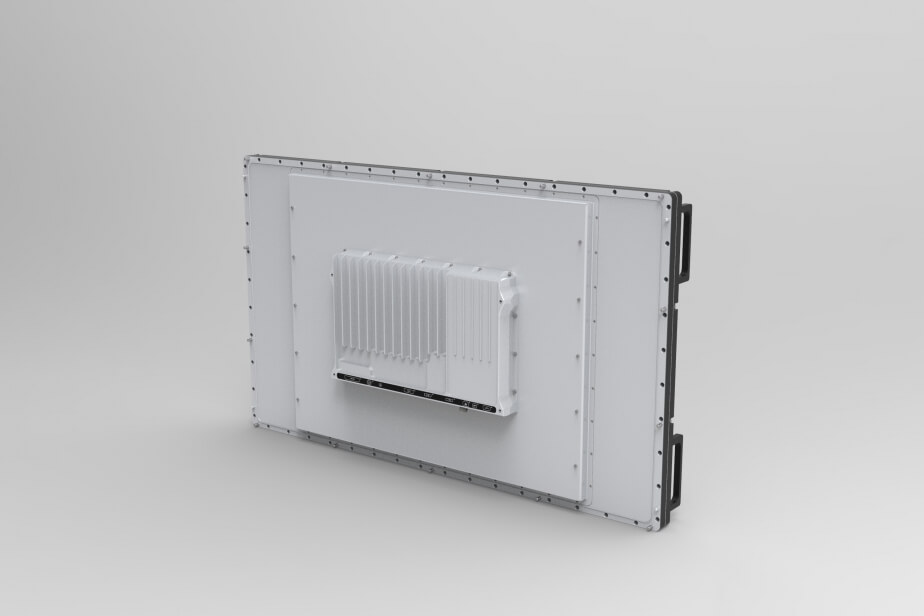

- Fan less, lightweight cast aluminum enclosure and bezel
- Environmental specifications to MIL-STD 810G
- Front side IPx5
- Optional Naval 901D grade A
- Reliability – 24/7 operation
Unmatched SWaP-C Optimization
- Combining unmatched thinness with exceptionally low weight to provide a unique, rugged display solution, especially for applications where size and weight are critical.
Specifikace
| TL-824 | TL-827 | TL-832 | TL-843 | |
| Size | 24" | 27" | 32" | 43" |
| Native resolution | 3840 x 2160 (UHD 4K) | 3840 x 2160 (UHD 4K) | 3840 x 2160 (UHD 4K) | 3840 x 2160 (UHD 4K) |
| Active Display Area | 525.66 x 295.70 mm | 596.7 x 335.66 mm | 697.31 x 392.23 mm | 941.18 x 529.49 mm |
| Pixel Pitch | 0.1369 x 0.1369 mm | 0.1554 x 0.1554 mm | 0.182 x 0.182 mm | 0.2541 x 0.2541 mm |
| Contrast Ratio | 1200:1 | 1300:1 | 1300:1 | 1000:1 |
| Dimensions (W x H x D) | 612 x 386 x 70 mm | 673 x 422 x 66 mm | 775 x 477 x 66 mm | 995 x 585 x 96.5 mm |
| Weight | TBD | TBD | 32.2 Kg (71 Lbs) | 47 Kg (103.6 Lbs) |
| Power Consumption - no heater (typical) | 45 W | 47 W | 50 W | 75 W |
| Panel type | TFT active-matrix, IPS, LED backlight |
| Aspect ratio | 16:9 |
| Pixel arrangement | RGB vertical stripes |
| Color depth | 1.07 Billion colors (10-bit) |
| Dimming ratio (typical) | 500:1 |
| Brightness (typical) | 250 cd/m² (72.5 fL) |
| Viewing angle (H/V, typical) | 178°/178° (CR ≥ 10) |
| Response time (typical) | 14ms (gray to gray, 25°C) |
| Protective front glass | Chemically strengthened anti-glare and anti-reflective coating, no ITO coating, front glass bonded to LCD panel |
| Video interface connections | 2x Display Port (DP 1.2a standard) 1x DVI-I (DVI 1.0 standard) |
| Supported input timings | max. 3840 x 2160 @60 Hz (DP) max. 3840 x 2160 @30 Hz (DVI) max. 1920 x 1200 (analog on DVI) |
| Video composition | MultiWindow mode allows for up to 12 user defineable layouts Each layout can display up to 3 video inputs simultaneously in a user defined composition |
| Control panel | Integrated in bezel |
| Remote control | Serial port (USB) |
| Power connection | Sub-D9 or MIL connector |
| Power input | 28 VDC or 115-220VAC, MIL-STD-704E and MIL-STD1275D guidelines |
| Mounting | Console mounting VESA mounting 400 x 200 mm (4 x M6 screws) |
| Finish | Front bezel painted black or black anodized Rear cover chromated, not painted |
| Options | 1. LFC - LCD flicker compensation 2. Touch screen - PCAP, IR, or none 3. Rugged - low temperature range (heater), higher vibration, and rapid decompression 4. 901D Qualification 5. Circular MIL connectors (fully sealed) |
| Regulatory compliance | FCC-A CE Directive EU RoHS Directive Safety standard EN62368 |
ENVIRONMENTAL CONDITIONS
| Ruggedness | Standard | Rugged option | |
| Vibration operational Ships | MIL-STD-167-1 Type 1 | MIL-STD-167-1 Type 1 | |
|
Vibration operational Airbone |
2g MIL-E-5400T Fig.2, curve IIa (sheet 2 of 3) | 5g MIL-E-5400T Fig.2, curve IIIa (sheet 2 of 3) | |
|
Vibration operational Randome |
N/A | MIL-STD-810F, Meth 514.5 Proc I, comp. wheeled vehicle (C2 & C3) | |
| Operational temperature | Low temp: 0°C High temp: 50°C MIL-STD-810G Meth 501.5 and Meth 502.5, Proc II |
Low temp: -25°C High temp: +55°C MIL-STD-810G Meth 501.5 and Meth 502.5, Proc II |
|
| Storage temperature | Low temp: -40°C High temp: +70°C MIL-STD-810G Meth 501.5 and Meth 502.5, Proc I |
Low temp: -40°C High temp: +70°C MIL-STD-810G Meth 501.5 and Meth 502.5, Proc I |
|
| Relative humidity | max. 95% @ 40°C MIL-STD-810G Meth 507.5, Proc II |
max. 95% @ 40°C MIL-STD-810G Meth 507.5, Proc II |
|
| Enclosure (drip) | MIL-STD-810G Meth 506.5 Proc III | MIL-STD-810G Meth 506.5 Proc III | |
| Altitude low pressure | MIL-STD-810G Meth 500.5, Proc I & II 30,000 ft (300 mbar) |
MIL-STD-810G Meth 500.5, Proc I & II 30,000 ft (300 mbar) |
|
| Rapid decompression | N/A | MIL-STD-810G Meth 500.5, Proc III 8,000 ft to 40,000 ft in 15s |
|
| EMI / EMC | MIL-STD-461G NAVY Applications | MIL-STD-461G NAVY Applications Navy fixed and Airforce Applications |
|
| Ingress protection | IPx5 on display front and IPx5 on unit level with optional circular MIL connectors | ||
