SUPER 7"
7" Fanless Panel PC with Intel® Atom™ Bay Trail Processor IP65 Waterproof
Základní informace

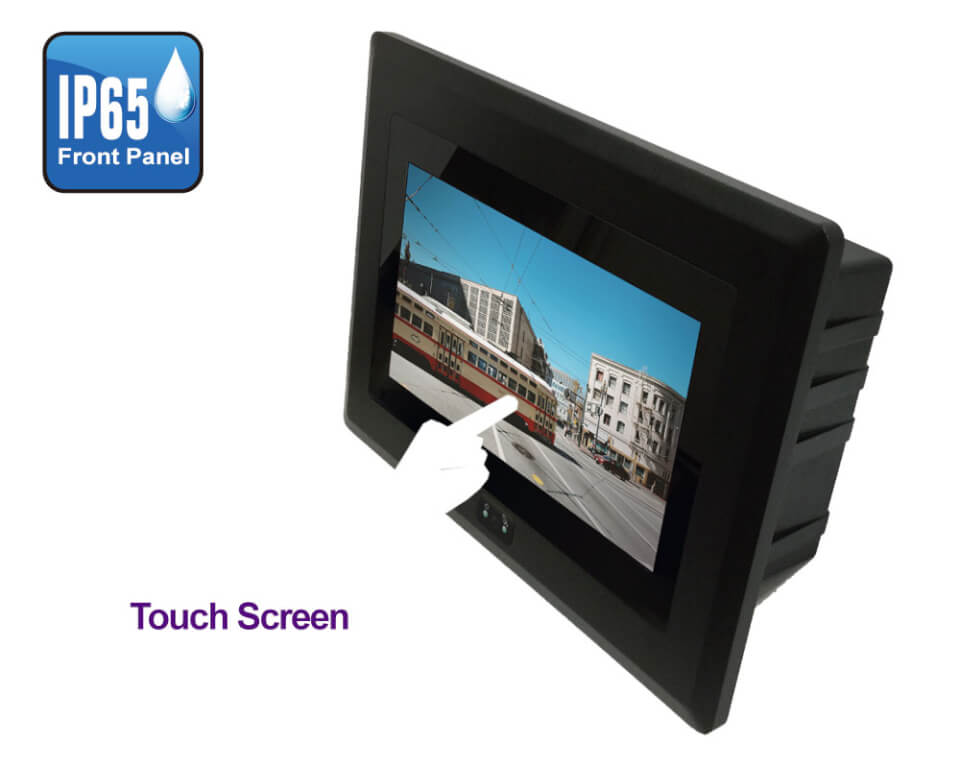

- 7" LCD with resistive touch screen
- Intel® Atom™ Bay Trail J1900 / E3825 / E3845 SoC
- DDR3L SODIMM, Max 8GB

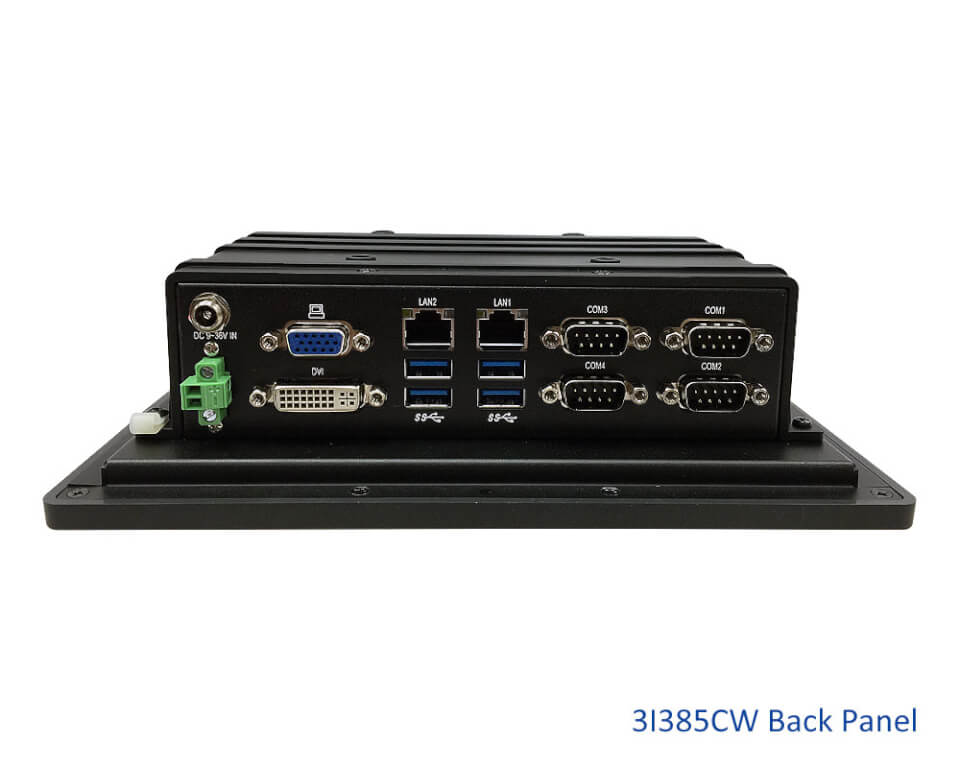

- 2 x GbE, 4 x COM, DVI, VGA, 4 x USB
- Wide Range 9~36V DC input

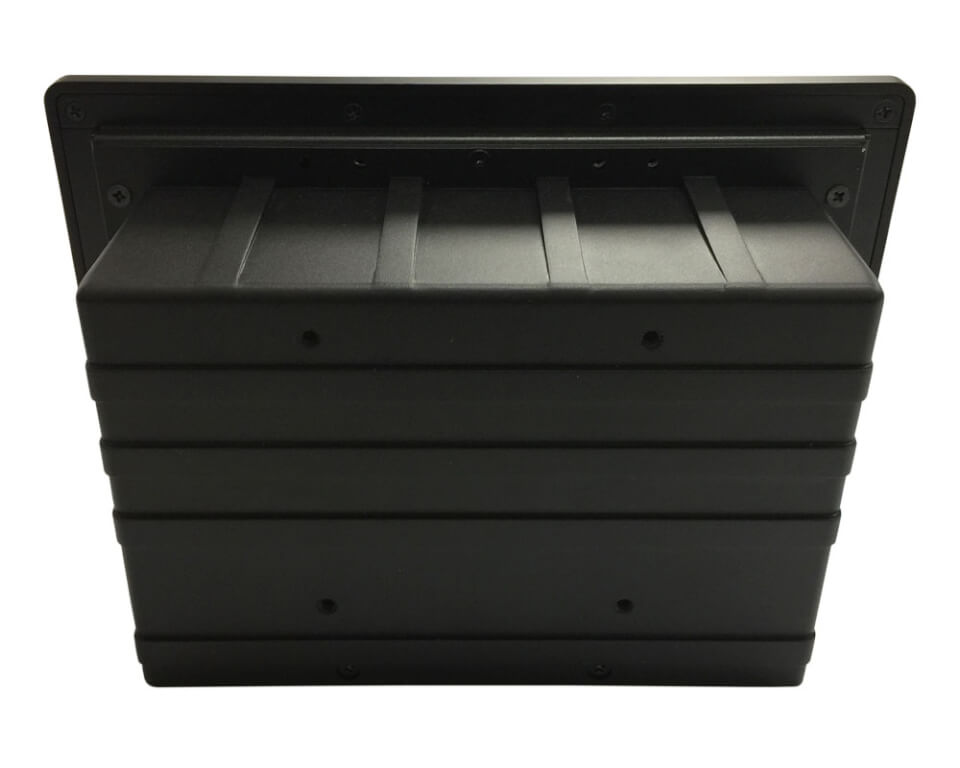

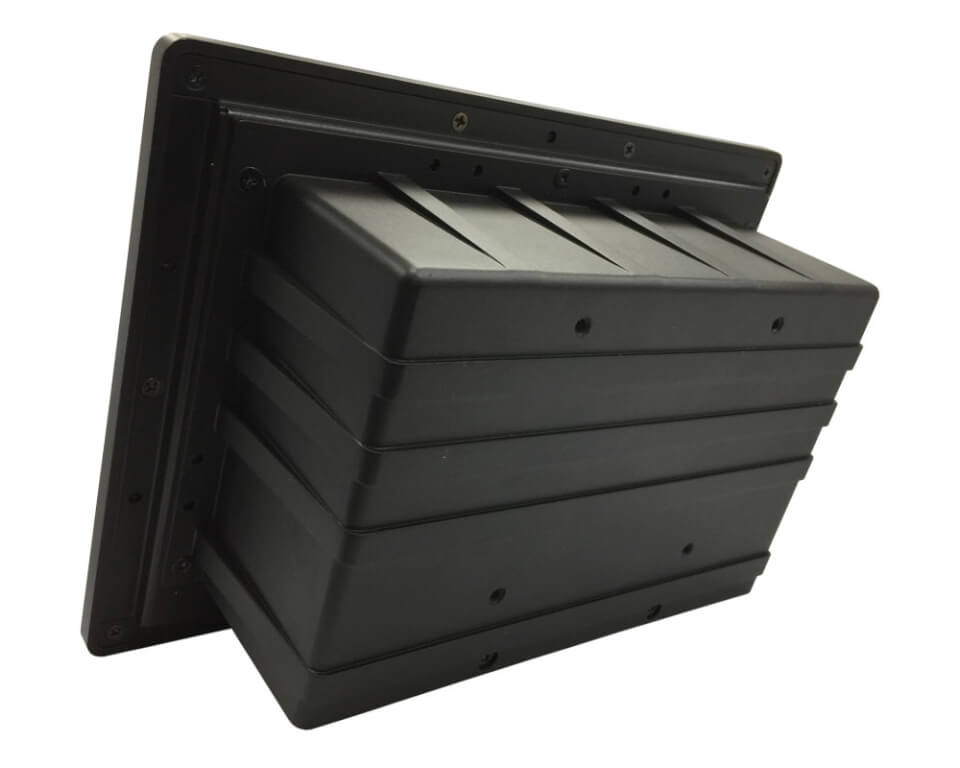

- Plastic (ABS) housing
Specifikace
| MODEL | SUPER 7" Panel PC + 3I385CW |
| Dimension (mm) | 66.1H x 225.3W x 166.87D |
| Weight | 1.2 Kg |
| Hard drive | mSATA / 2.5" HDD |
| LCD size | 7 inch, 16:9 |
| Max Resolution | 1024 × 600 |
| Luminance (cd/m2) | 500 |
| Contrast Ratio | 700:1 |
| Viewing Angle (H-V) | 75 / 75 / 75 / 75CR ≧10 (L / R / U / D) |
| Backlight | LED |
| Touch Screen | Resistive touch screen optional capacitive touch |
| MB | 3I385CW |
| CPU | Bay Trail-D J1900 2.0Ghz (Quad Core) |
| Chipset | Bay Trail-I E3845 1.91GHz (Quad Core) |
| Memory type | DDR3L 1333 MHz, Max up to 8GB |
| SO-DIMM slot | 1 |
| SSD Storage | mSATA |
| VGA | Yes |
| DVI / HDMI | DVI |
| USB | 4 |

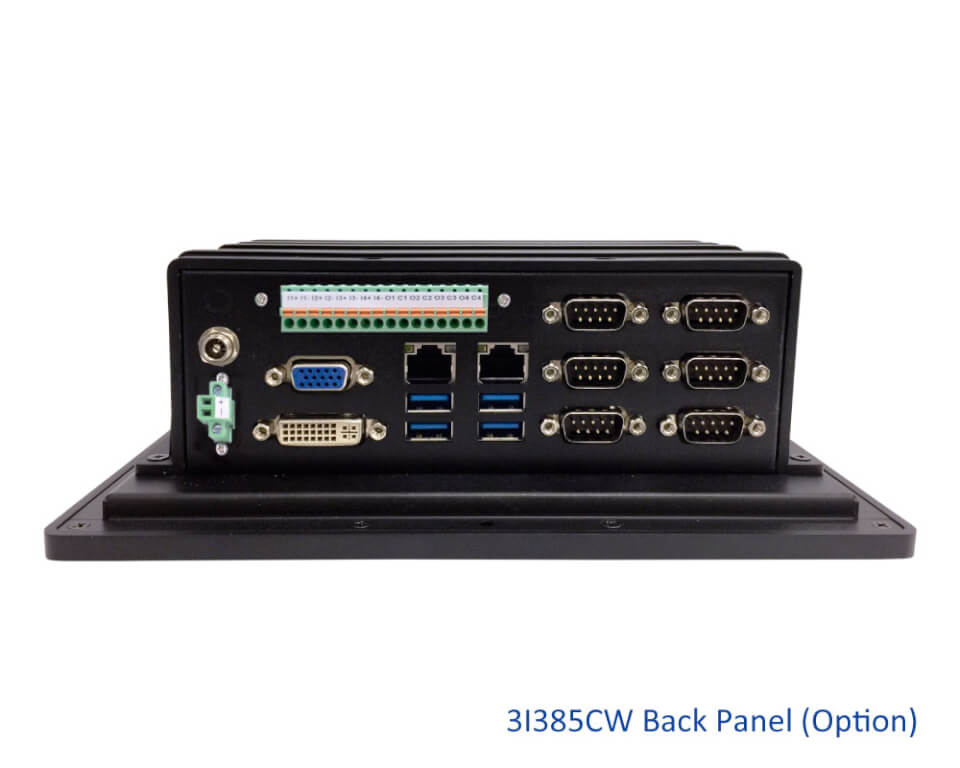

| COM | Bulit-in 4 x COM, expand up to 6 x COM |
| Mini PCIe | 2 |
| SIM Card Holder | 1 |
| GPIO | 4DI / 4DO (Optional) |
| Ethernet | 2 x Intel GbE |
| Audio | Optional |
| Power Input | Wide Range DC IN +9~36V |
| Battery | Optional |
| Mounting | VESA 75 / Wall mount |
| Panel frame water proof | IP65 |
| Expansion | GPS, 3G / 4G, Bluetooth, WI-FI, I/O, Video Card |
| Operating Temp. | -20°C~60°C for mSATA / SSD HDD |
| Operating Humidity | 5~90% @ 39°C, non-condensing |
