SR700-X3
Target Acquisition GPGPU Computer MIL-STD Intel® Core™ i7 -7820EQ Processor, Upgradable GPU (NVIDIA®1050Ti CUDA 768 GDDR5-4GB/Quadro® P3000 CUDA1280 GDDR5-6GB/Quadro® RTX3000 CUDA 1920 GDDR6-6GB) with high flexibility, IP65 protection, M12 Connectors ,9V
Základní informace
- Intel® 7th Gen Core™ i7-7820EQ
- high flexibility With Upgradeble GPU (NVIDIA®1050Ti CUDA 768 GDDR5-4GB/Quadro® P3000 CUDA1280 GDDR5-6GB/Quadro® RTX3000 CUDA 1920 GDDR6-6GB)
- Up to 32GB DDR4 SDRAM
- 2 x mPCIe, 1 x M.2 expansion slot
- Full IP65 Classified
- MIL-STD 810
- 9V to 36V DC, Options for 18V~36V MIL-461 EMI Filter
- Extended operating temp. -40°C to 60°C

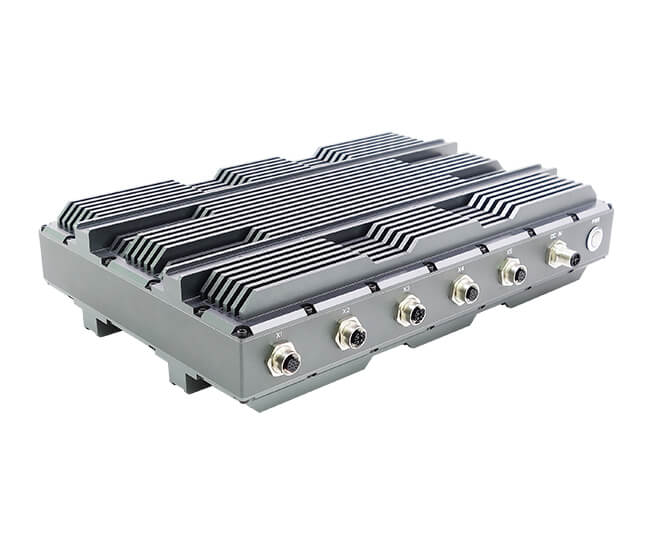

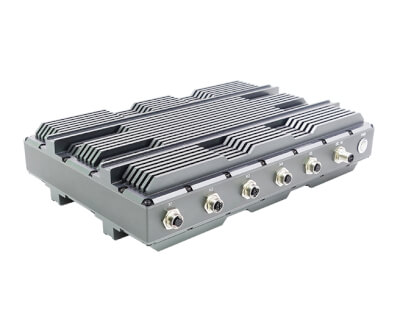

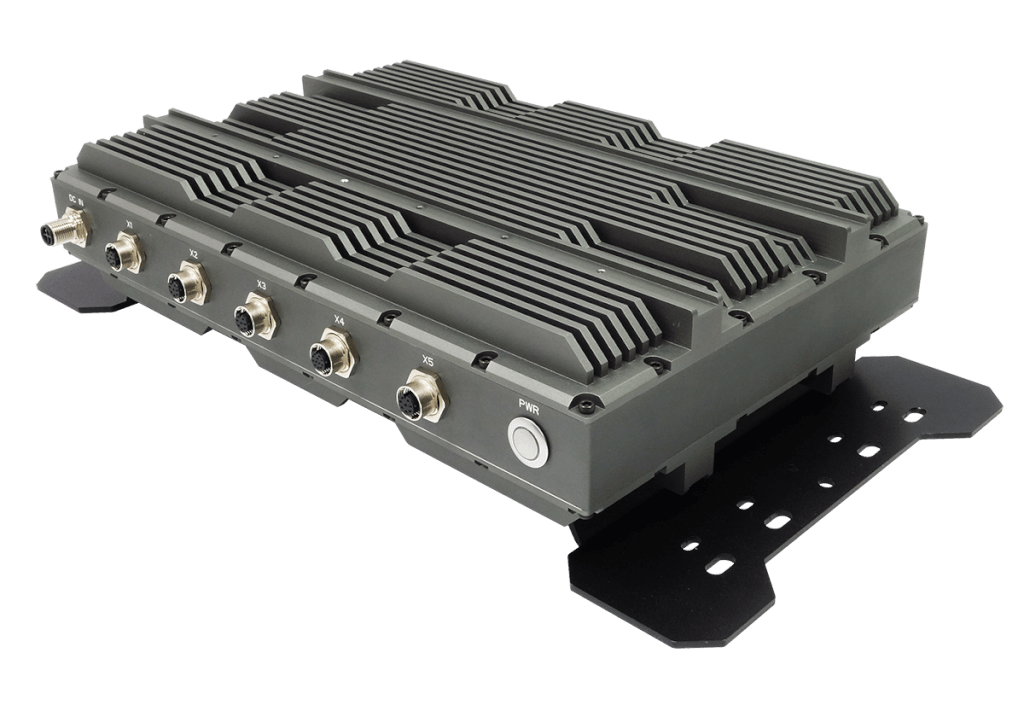

SR700-X3 rugged system is a powerful system configured with i7 Intel® 7th Gen Core™ i7-7820EQ and chipset soldering onboard, delivering an amazing level of CPU performance.
Processor i7-6820EQ plus Intel®QM170/QM175 chipset supports clock speed 2.8GHz, up to 3.7GHz. Quad cores, turbo up to 8 cores to cope with enormous data computing. SR700-X3 highlights on high flexibility with upgradeable CPU, GPU without constraining by small spaces and limited power consumption chassis. Besides its extreme rugged design, high functionality, SR700-X3 is designed under MIL-STD-810G and IP65 protection, possessing high adaptation toward dust, humidity, shock, vibration, extreme temperatures and electromagnetic interference characteristics.
SR700-X3 is the perfect solution to military purposes, such as defense, marine navigation and aviation technology. It also can withstand and survive in the harshest surroundings with extended temperature operation from -20 to 60℃.
Specifikace
| CPU | 7-7820EQ (4x Cores, 8 x Threads, 3.0Ghz Turbo to 3.7Ghz |
| CHIPSET | Intel® QM170/QM175 |
| GPU |
NVIDIA®1050Ti CUDA 768 GDDR5-4GB |
| MEMORY TYPE | Up to 32GB DDR4 SDRAM |
| EXPANSION SLOT | 1 x Full-size mPCIe ( w/ SIM card supported ) 1 x Full-size mPCIe ( w/ mSATA supported ) 1 x M.2 ( M-Key ), 2280 storage devices support ( SATA ) |
| STORAGE DEVICE | 1 x Full-size mPCIe up to 512 GB 1 x M.2 ( M-Key ), 2280 storage devices support up to 1 TB Capacity |
| POWER BUTTON | Waterproof Power Button with LED backlight |

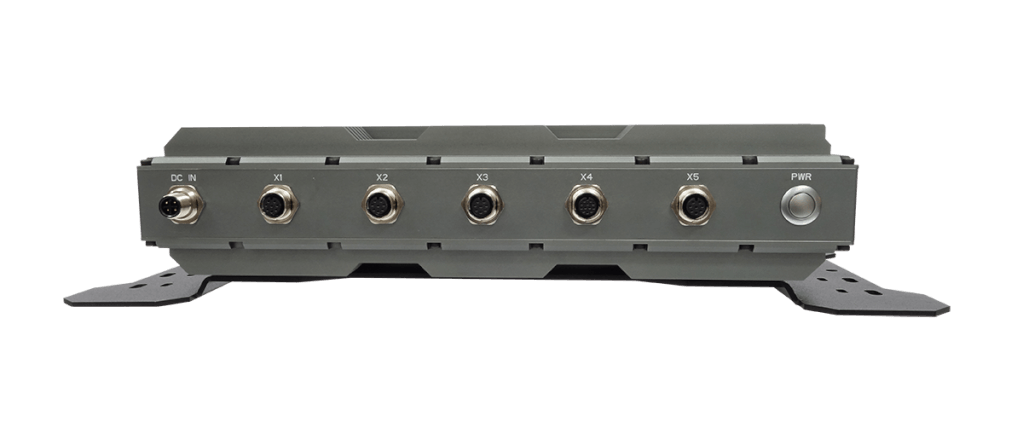

| DC IN | 1 x DC input (Rugged M12 connector) |
| X1 | 2 x USB2.0 (Rugged M12 connector) |
| X2 | 1 x GbE LAN (Rugged M12 connector) |
| X3 | 1 x GbE LAN (Rugged M12 connector) |
| X4 | 1 x VGA/DVI (Rugged M12 connector) |
| X5 | 1 x RS232, 1 x RS485 (12-pin Rugged M12 connector) |
| WINDOWS | Windows 10 x32/x64 |
| LINUX | Fedora 20, Ubuntu 13.04, Ubuntu 13.10, Ubuntu 14.04 |
| POWER REQUIREMENT |
9V to 36V DC, Options for 18V~36V MIL-461 EMI Filter |
| DIMENSION | 350 x 230 x 86 mm |
| WEIGHT | 8.6 kg (18.9 lbs) |
| OPERATING TEMP. | -40 to 60°C(ambient with air flow) |
| STORAGE TEMP. | -40 to 85°C |
| RELATIVE HUMIDITY | 5% to 95%, non-condensing |
| MIL-STD-810G TEST | Method 507.5, Procedure II (Temperature & Humidity) Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6 Shock-Procedure I Operating (Mechanical Shock) Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) |
| EMC | CE and FCC compliance MIL-STD 461(With Optional Power Module) |
| GREEN PRODUCT | RoHS, WEEE compliance |
