Intel® QM87 Core™ i7-4700EQ NVIDIA® GTX950M GPU M12-Type Connectors, Dual LAN Ports 9V to 36V DC-in Operating Temp. -40 to 70°C MIL-STD IP65 Rugged System

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

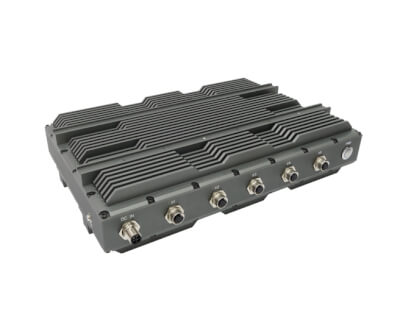

SR700-SG, EBX rugged system is a powerful system driven by Intel® 4th generation Haswell CPU and chipset soldering onboard. Processor i7-4700EQ plus Intel® QM87 chipset supports clock speed 2.4GHz, up to 3.4GHz. Quad cores, turbo up to 8 cores to cope with enormous data computing. Beside its extreme rugged design, high functionality, vibration endurance up to 10 Grms and shock up to 75G, and specially installed MIL-STD M12 connectors, SR700-SG highlights on its GPU installation. 9V~36V DC input design can protect system from damages caused by sudden surge of voltage, thus further secure the reliability of its critical components and the system itself. SR700-SG is the perfect solution to military purposes, such as defense, marine navigation and aviation technology. It also can withstand and survive in the harshest surroundings with extended temperature operation from -40 to 70℃. Even in fields like mining and offshore drilling, SR700-SG can provide equally stunning performance.

  • Intel® Haswell BGA i7-4700EQ + Intel QM87 PCH(4 cores x 2.4GHz, 47W)
  • DDR3 XR-DIMM up to 8GB memory
  • Onboard SATAIII NAND Drive up to 64GB
  • 2 x mPCIe expansion slot (one co-lay with mSATA)
  • M12 Connectors applied
  • Full IP65 Classified
  • MIL-STD 810G compliant
  • 9V to 36V DC-in with power delay on/off
  • Extended operating temperature. -40 to 70°C


CPU Intel® Core™ i7 Haswell , BGA type
Intel® Core i7-4700EQ (4C x 3.4/2.4 GHz), 6M Cache (47W)
Chipset Intel® QM87 Chipset (Intel® DH82QM87 PCH)
Memory Type 1 x DDR3 1600 XR-DIMM up to 8 GB with ECC
Expansion Slot 2 x mPCIe (1 x colay with mSATA)
Storage Device 64GB Onboard SSD
1 x mSATA
1 x 2.5" HDD/SSD
Power Button Waterproof Power Button with LED backlight
DC IN 1 x DC input (4-pin Rugged M12 connector)
X1 2 x USB2.0 (8-pin Rugged M12 connector)
X2 1 x GbE LAN (8-pin Rugged M12 connector)
X3 1 x GbE LAN (8-pin Rugged M12 connector)
X4 1 x VGA (12-pin Rugged M12 connector)
X5 1 x RS232, 1 x RS485 (12-pin Rugged M12 connector)
Windows Windows 7 x32/x64, Windows 8 x32/x64, Windows 8.1 x32/x64, Windows 10 x32/x64
Linux Fedora 20, Ubuntu 13.04, Ubuntu 13.10, Ubuntu 14.04, Open SUSE 12.2
Power Requirement 9V to 36V DC-in, AT/ATX mode supports
Dimension 350 x 230 x 76 mm
Weight 8.6 kg (18.9 lbs)
Operating Temp. -40 to 70°C(ambient with air flow)
Storage Temp. -40 to 85°C
Relative Humidity 5% to 95%, non-condensing
MIL-STD-810G Test Method 507.5, Procedure II (Temperature & Humidity)
Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock)
Method 516.6 Shock-Procedure I Operating (Mechanical Shock)
Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration)
Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration)
Method 501.5, Procedure I (Storage/High Temperature)
Method 501.5, Procedure II (Operation/High Temperature)
Method 502.5, Procedure I (Storage/Low Temperature)
Method 502.5, Procedure II (Operation/Low Temperature)
Method 503.5, Procedure I (Temperature shock)
EMC CE and FCC compliance
MIL-STD 461F (With Optional Power Module)
Green Product RoHS, WEEE compliance
