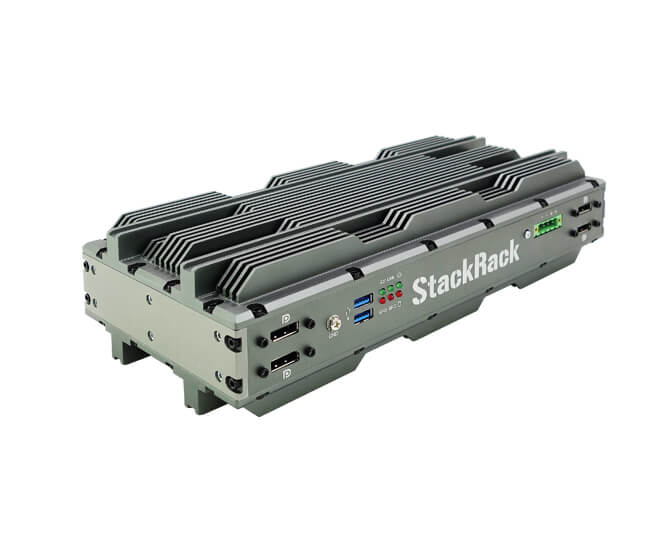

SR200-SG

MIL-STD Rugged GPU Computer supporting 75W nVidia® GPU & Intel® Core™ i7-4700EQ Haswell Processor, NVIDIA®1050Ti CUDA 768 GDDR5-4GB/Quadro® P3000 CUDA1280 GDDR5-6GB/Quadro® RTX3000 CUDA 1920 GDDR6-6GB GPU, 6 Independent DisplayPort, 9V to 36V DC-in, Exte

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Intel® Haswell  i7-4700EQ + Intel QM87 PCH(4 cores x 2.4GHz, 47W)
  • NVIDIA®1050Ti CUDA 768 GDDR5-4GB/Quadro® P3000 CUDA1280 GDDR5-6GB/Quadro® RTX3000 CUDA 1920 GDDR6-6GB GPU
  • DDR3 XR-DIMM up to 8GB memory
  • Onboard SATAIII NAND Drive up to 64GB
  • 6 x independent DisplayPort
  • 2 x mPCIe expansion slot (one co-lay with mSATA)
  • 9V to 36V DC-in with power delay on/off
  • Wide operating temperature. -40°C to 60°C

SR200-SG, EBX rugged system is a powerful system that is driven by Intel® 4th generation Haswell CPU and chipset soldering onboard, integrated with Nvidia®1050Ti CUDA 768 GDDR5-4GB/GTX 1650 CUDA896 GDDR5-4GB/GTX 1660S CUDA1408 GDDR6-6GB GPU that supports 4 independent DisplayPort. Processor i7-4700EQ plus Intel® QM87 chipset supports clock speed 2.4GHz, up to 3.4GHz. Quad cores, turbo up to 8 cores to cope with enormous data computing. Apart from computing power, the system is able to survive in harsh environment from -20°C to 60°C, and ruggedness for vibration and shock is proven to pass MIL-810G standard. With the combination of high CPU computing power and rich display inputs, SR200-SG is a perfect portable solution for rugged consoles & workstations, transportation, defense control room to share instant and accurate information on huge screen for in-time solutions.

Specifikace

CPU Intel® Core™ i7 Haswell , BGA type
Intel® Core i7-4700EQ (4C x 3.4/2.4 GHz GHz), 6M Cache (47W)
GPU

NVIDIA®1050Ti CUDA 768 GDDR5-4GB

Quadro®P3000 CUDA 1280 GDDR5-6GB

Quadro®RTX3000 CUDA 1920 GDDR6-6GB

CHIPSET Intel® QM87  (Intel® DH82QM87 PCH)
MEMORY TYPE 1 x DDR3 1600 XR-DIMM up to 8 GB with ECC
NAND FLASH 64 GB SATA SSD onboard
EXPANSION SLOT 2 x mPCIe (1 x colay with mSATA) for GEN2
STORAGE DEVICE mSATA up to 512GB
ETHERNET CHIPSET 2 x RJ45 : Intel® I210IT & i217LM GbE LAN

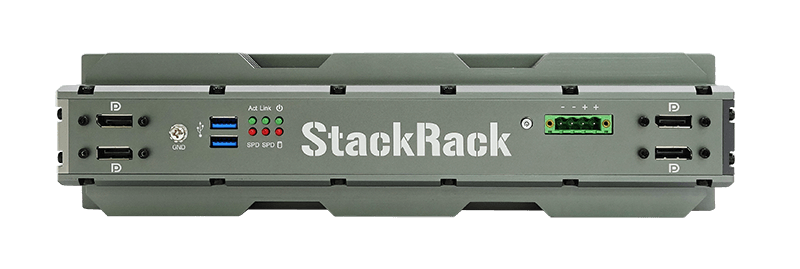

FRONT I/O:
USB 2 x USB 3.0 type A
POWER INPUT 1 x 4-pin terminal connector
DISPLAYPORT 4 x 20-pin DP connector (female) (support by MXM Graphic card)

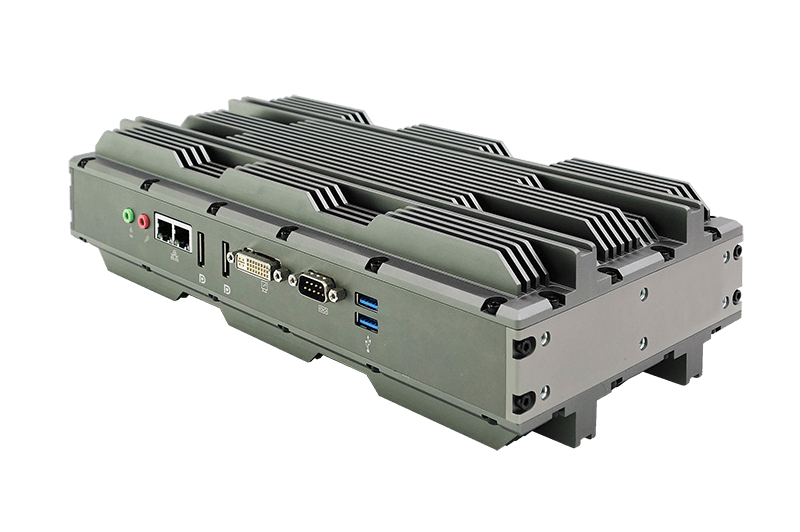

REAR I/O:
ETHERNET 2 x RJ45 ports GbE LAN
DISPLAYPORT 2 x 20-pin DP connector (female) (support by Intel QM87 chipset)
AUDIO 2 x 3.5mm Audio JACK (Mic-in, Line-out)
COM 1x RS-232/422/485 ports, Jumper-selectable (DB9 male)
USB 2 x USB 3.0 type A
WINDOWS Windows 8 x32/x64、Windows 8.1 x32/x64、Windows 10 x32/x64
LINUX Fedora 20、Ubuntu 13.04、Ubuntu 13.10、Ubuntu 14.04
POWER REQUIREMENT 9V to 36V DC-in, AT/ATX mode with power delay on/off
DIMENSION 308 x 149 x 76mm
WEIGHT 4.3 kg
OPERATING TEMP. -20 to 60°C(ambient with air flow)
STORAGE TEMP. -40 to 85°C
RELATIVE HUMIDITY 5% to 95%, non-condensing
MIL-STD-810G TEST Method 507.5, Procedure II (Temperature & Humidity)
Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock)
Method 516.6 Shock-Procedure I Operating (Mechanical Shock)
Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration)
Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration)
Method 501.5, Procedure I (Storage/High Temperature)
Method 501.5, Procedure II (Operation/High Temperature)
Method 502.5, Procedure I (Storage/Low Temperature)
Method 502.5, Procedure II (Operation/Low Temperature)
Method 503.5, Procedure I (Temperature shock)
EMC CE and FCC certificated
GREEN PRODUCT RoHS, WEEE compliance

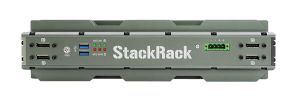

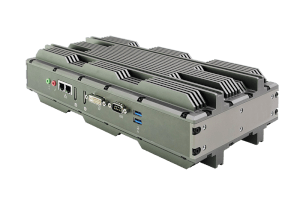

Fotogalerie
