SR10B-X3
MIL-STD-810 Rugged Video Frame Grabber Computer with Intel® Core™ i7- 7820EQ, 4 Gigabit LAN, 4 Serial port , 9V to 36V DC-in, high vibration / shock protection, Extended Temp. -40°C to 60°C
Základní informace
- 8x D1 Video Frame Grabber (Optional)
- Intel® Core™ i7-7820EQ (3.0 GHz, up to 3.7 GHz, 4-cores, 8 threads)
- DDR4 Up to 32GB, Storage Up to 2TB MLC SSD
- Multi-Displays by 2 x DP, 1 x DVI-I
- 2 x mPCIe Expansion slot
- 4 x Intel® Gigabit Ethernet
- 4 x USB 3.0, 4 x COM ports (2x RS232/422/485, 2 x RS232)
- 9V-36V DC-in with power delay on/off
- Extended Temperature -40°C to 60°C
- Optional unique accessory bumper design for vibration resistance
The SR10B-X3 based on Intel® QM175 chipset, is powered by Intel® 7th generation Core™ i7 processor onboard. The SR10B-X3 can operate effectively in harsh environment under temp range from -40°C to 60°C and is a perfect solution for military, transportation, factory automation and digital signage applications. SR10B-X3 is based on EBX form factor, DDR4 up to 32GB. It su
Specifikace
| CPU | Intel® 7th Gen Core™ i7-7820EQ (Frequency 3GHz, Turbo Boost Frequency up to 3.7GHz) |
| CHIPSET | Intel® QM175 Chipset |
| MEMORY TYPE | DDR4 SO-DIMM up to 32 GB |
| EXPANSION SLOT | 2 x Full-size miniPCIe (ACES 88911-5204M) ,one co-lay with mSATA for operating system, Rugged -40/+85C High Capacity Military-Grade mSATA 1 x Onboard SIM Card slot (ASTRON 5190006-007-R) for 3.5G connectivity ) |
| ETHERNET CHIPSET | 4 x Intel Gigabit Ethernet LAN Interfaces (10/100/1000Mbps) |

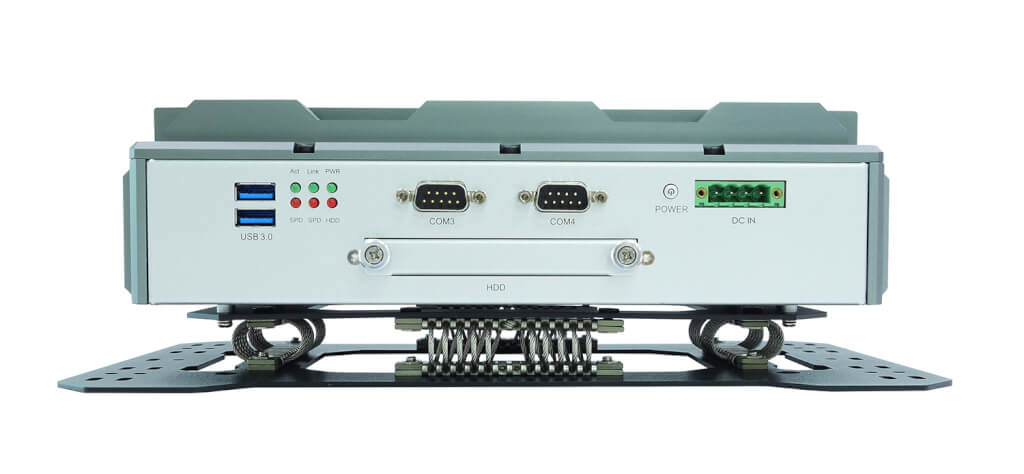

| FRONT I/O: | |
| USB | 2 x USB 3.0 |
| COM | 2 x RS232 |
| POWER | 1 x 4P Terminal Block |

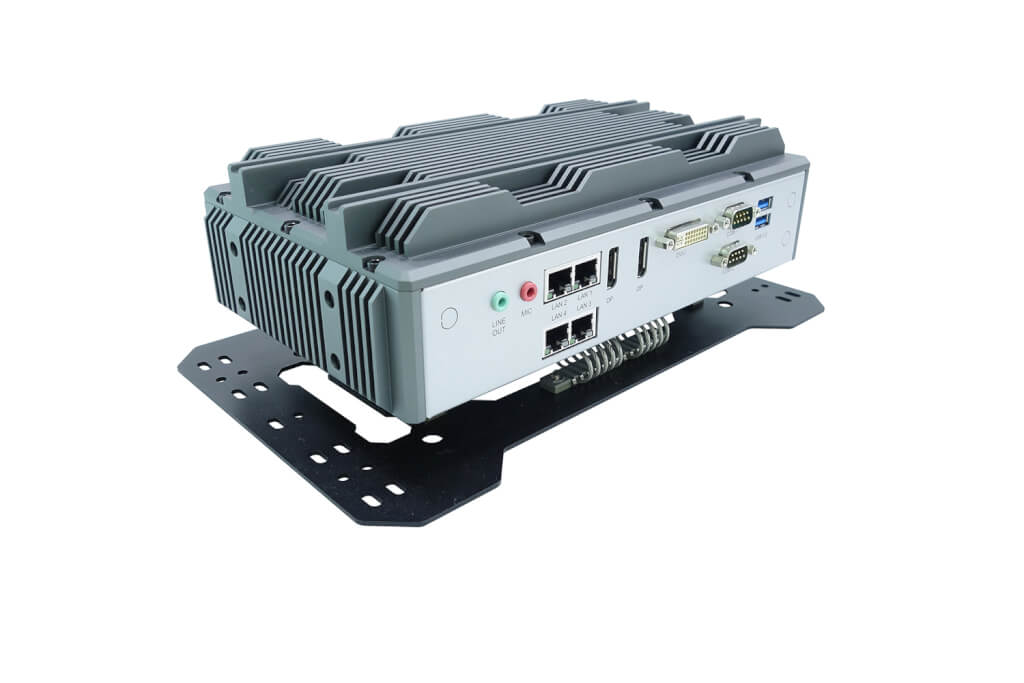

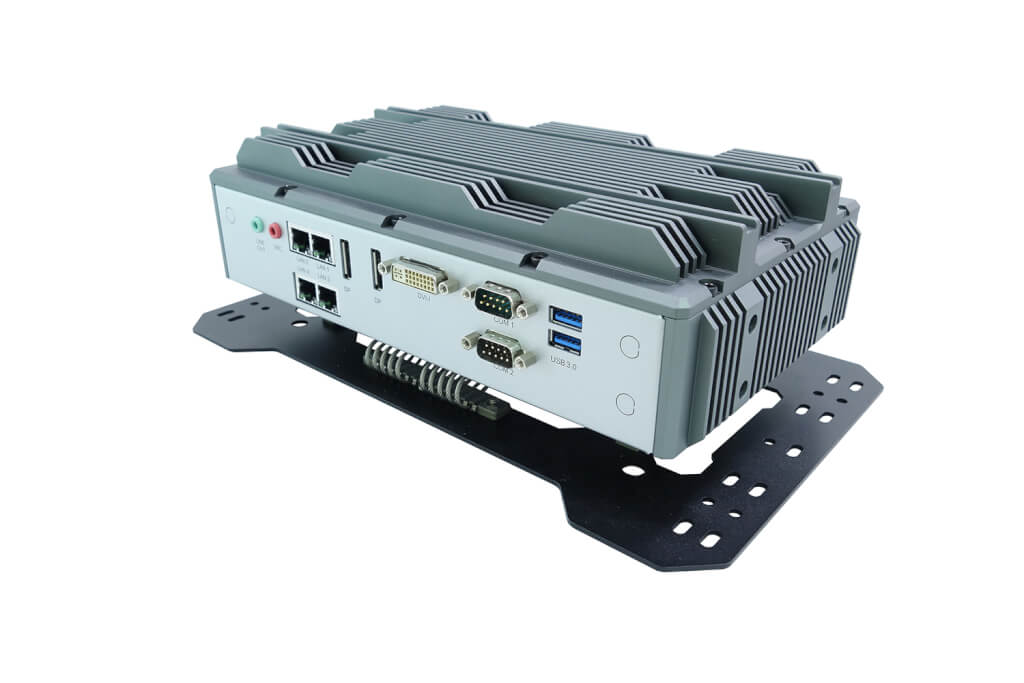

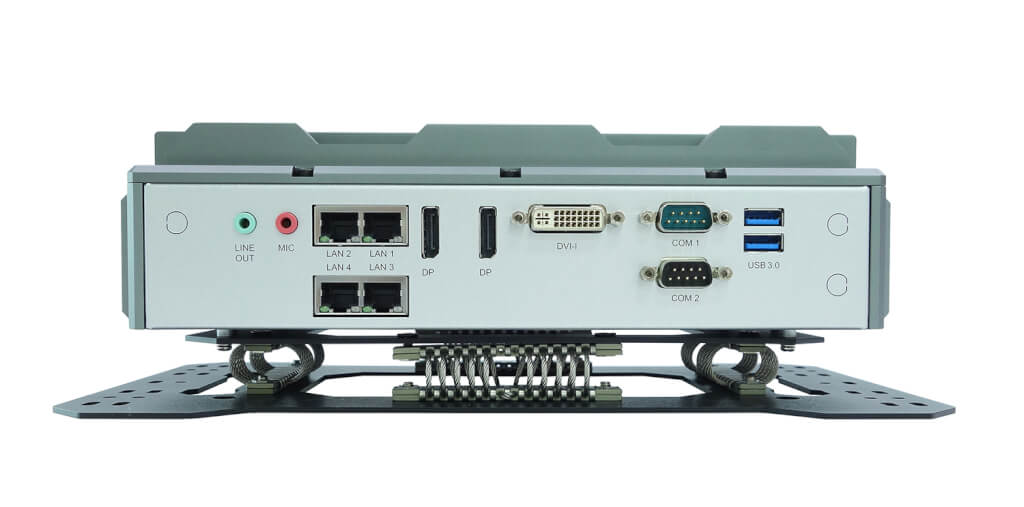

| REAR I/O: | |
| DISPLAYPORT | 2 x 20-pin DP connector (female) |
| DVI-I | 1 x 29-pin DVI-D connector (female) |
| ETHERNET | 4 x RJ45 ports |
| AUDIO | 2 x 3.5mm Audio Jacks (1 x MIC, 1 x Line-Out) |
| COM | 2x RS-232/422/485 ports, Jumper-selectable (DB9 male) |
| USB | 2 x USB 3.0 |
| DISPLAY INTERFACE | DVI-I interface x 1: 29-pin DVI-I connectors(female); resolution up to 1920 x 1200@60 Hz; DisplayPort interface x 2: 20-pin DisplayPort connectors (female); resolution up to 3840 x 2160@60 Hz |
| GRAPHICS CONTROLLER | Onboard Intel® HD 4600 graphics |
| WINDOWS | Windows 7 x32/x64, Windows 8 x32/x64, Windows 10 x32/x64 |
| LINUX | Fedora 20、Ubuntu 13.04、Ubuntu 13.10、Ubuntu 14.04 |
| POWER REQUIREMENT | 9V to 36V DC-in, AT/ATX mode with power delay on/off |
| DIMENSION | 250 x 149 x 69 mm |
| WEIGHT | 4.5 Kg (9.05lbs) |
| OPERATING TEMP. | -40 to 60°C(ambient with air flow) |
| STORAGE TEMP. | -40 to 85°C |
| RELATIVE HUMIDITY | 5% to 95%, non-condensing |
| MIL-STD-810G TEST | Method 507.5, Procedure II (Temperature & Humidity) Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6 Shock-Procedure I Operating (Mechanical Shock) Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) |
| EMC | CE and FCC certificated |
| GREEN PRODUCT | RoHS, WEEE compliance |
