SR10B

Intel® QM87 MIL-STD Fanless Rugged Vibration Proof System with Intel® Core™ i7 Haswell Processor, SSD easy swap cage, mPCIe expansion 9V to 36V DC-in, Wide Temp. -40 ~ 70°C

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

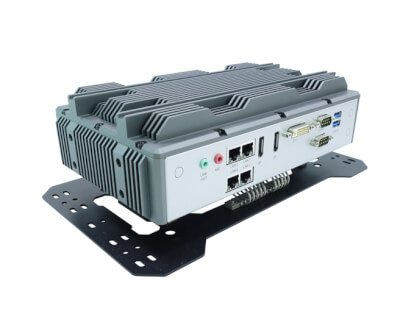

The SR10B based on Intel® Haswell QM87 chipset, is powered by Intel® 4th generation Core™ i7/i5/i3 processor onboard. The SR10B can operate effectively in harsh environment under temp range from -40 to 70°C and is a perfect solution for military, transportation, factory automation and digital signage applications. SR10B is based on EBX form factor, Swissbit XR-DIMM up to 8GB. It supports triple-display, 2 DP and 1 DVI-I, 4 GIGA LAN port, 4 USB 3.0 and 4 COM port. SR10B supplies wide power voltage from 9 to 36V DC-in.

  • 4th Generation Intel® Core™ i7 Haswell processors (BGA)
  • DDR3 Up to 8GB XR-DIMM
  • mSATA Up to 512GB
  • Multi-Displays by 2 x DP, 1 x DVI-I
  • 1 x mPCIe Expansion slot
  • 4 x Intel® Gigabit Ethernet
  • 4 x USB 3.0, 4 x COM ports (2x RS232/422/485, 2 x RS232)
  • 9V~36V DC-in with power delay on/off
  • Extended Temperature -40 to 70 °C
  • Optional unique accessory bumper design for vibration resistance

Specifikace

CPU Intel® Core™ i7 Haswell , BGA type
Intel® Core i7-4700EQ (4C x 3.4/2.4 GHz GHz), 6M Cache (47W)
Chipset Intel® QM87 Chipset (Intel® DH82QM87 PCH)
Memory Type 1 x DDR3 1600 XR-DIMM up to 8 GB with ECC
Expansion Slot 2 x mPCIe (1 x colay with mSATA) for GEN2
Storage Device 1 x mSATA up to 512GB
1 x Easy Swap 2.5" Cage
Ethernet Chipset Intel® I210IT & i217LM GbE
Power Button 1 with backlight
Power LED 1
HDD LED 1
LAN LED 2 sets
USB 2 x USB 3.0
COM 2 x RS232
Serial Signals
RS232: DCD-, RXD, TXD, DTR-, GND, DSR-, RTS-, CTS-
POWER 1 x Terminal Block
DisplayPort 2 x 20-pin DP connector (female)
DVI-I 1 x 29-pin DVI-D connector (female)
Ethernet 4 x RJ45 ports
COM 2x RS-232/422/485 ports, Jumper-selectable (DB9 male)
Serial Signals
RS232: DCD-, RXD, TXD, DTR-, GND, DSR-, RTS-, CTS-
RS422: TX-, RX+, TX+, RX-, GND
RS485- 4W: TxD+, TxD-, RxD+, RxD-, GND
RS485- 2W: DATA-, DATA+, GND
USB 2 x USB 3.0
Display Interface DVI-I interface x 1: 29-pin DVI-I connectors(female); resolution up to 1920 x 1200@60 Hz;
DisplayPort interface x 2: 20-pin DisplayPort connectors (female); resolution up to 3840 x 2160@60 Hz
Graphics Controller Onboard Intel® HD 4600 graphics
Windows Windows 7 x32/x64, Windows 8 x32/x64, Windows 10 x32/x64
Linux Fedora 20、Ubuntu 13.04、Ubuntu 13.10、Ubuntu 14.04
Power Requirement 9V to 36V DC-in, AT/ATX mode with power delay on/off
Dimension 250 x 149 x 69 mm
Weight 4.11 Kg (9.05lbs)
Operating Temp. -40 to 70°C(ambient with air flow)
Storage Temp. -40 to 85°C
Relative Humidity 5% to 95%, non-condensing
MIL-STD-810G Test Method 507.5, Procedure II (Temperature & Humidity)
Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock)
Method 516.6 Shock-Procedure I Operating (Mechanical Shock)
Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration)
Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration)
Method 501.5, Procedure I (Storage/High Temperature)
Method 501.5, Procedure II (Operation/High Temperature)
Method 502.5, Procedure I (Storage/Low Temperature)
Method 502.5, Procedure II (Operation/Low Temperature)
Method 503.5, Procedure I (Temperature shock)
EMC CE and FCC certificated
Green Product RoHS, WEEE compliance
