SR10A-X3
MIL-STD Video Frame Grabber Fanless Computer with Intel i7-7820EQ , 9V to 36V DC-Input, Extended Temp. -40°C to 60°C
Základní informace
- Intel® Core™ i7-7820EQ (3.0 GHz, up to 3.7 GHz, 4-cores, 8 threads)
- RAM Up to DDR4-32GB , SSD Up to 1TB mSATA
- HD-SDI Video Frame Grabber for Mini PCI Express
- 8x D1 Video Frame Grabber for mini PCI Express
- Multi-Displays by 2 x DP, 1 x DVI-I
- 2 x PCIe Intel® Gigabit Ethernet
- 4 x USB 3.0, 1 x COM ports (RS232/422/485)
- 9V-36V DC-Input
- Extended Temperature -40°C to 60°C

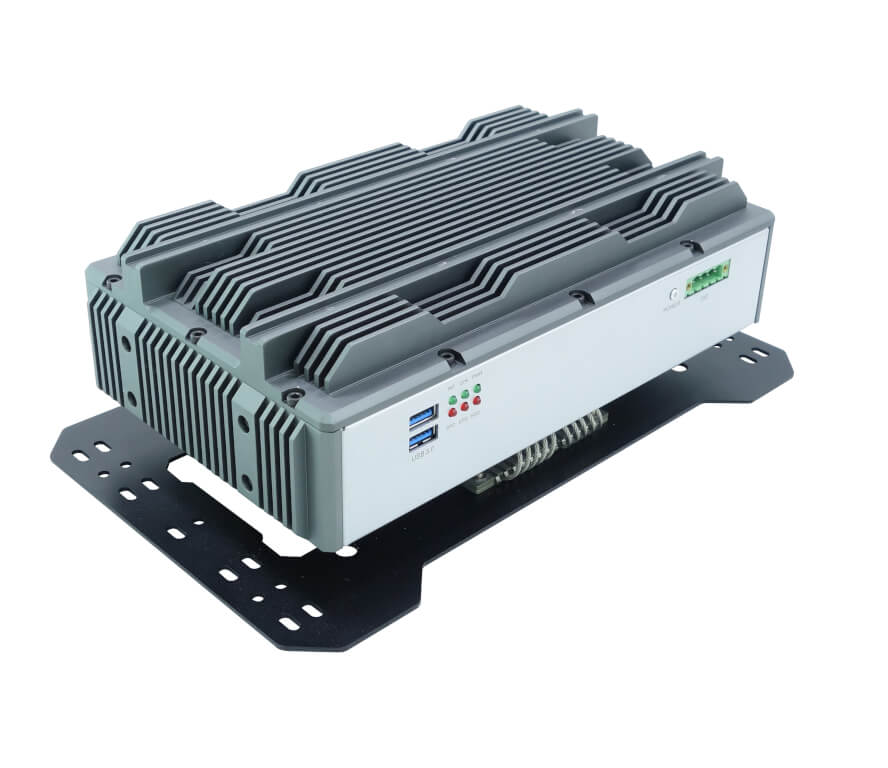

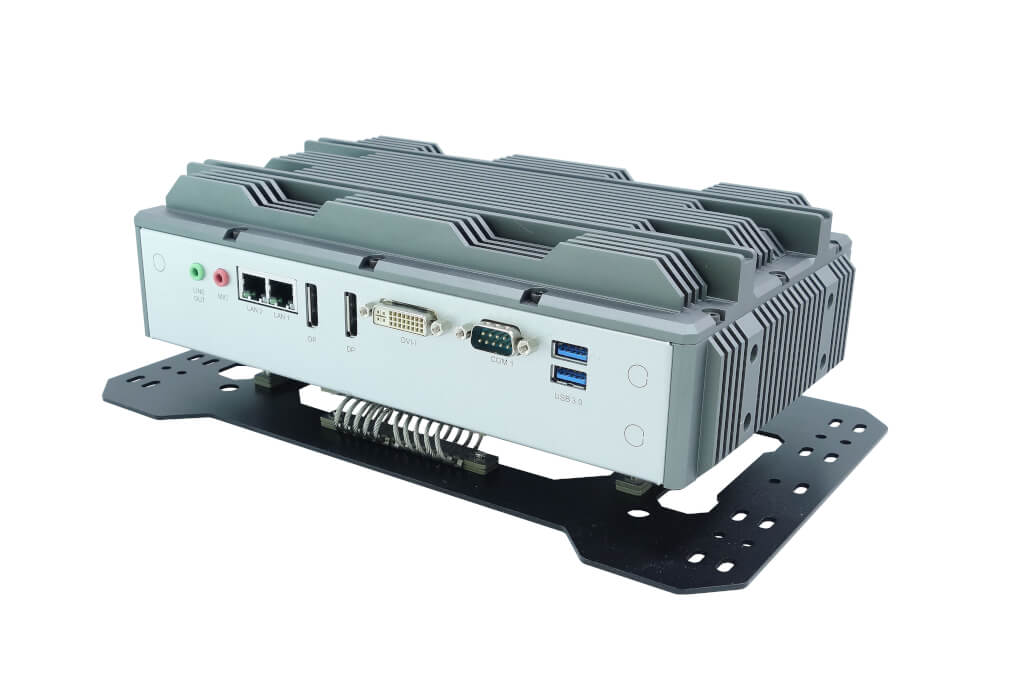

- Optional unique accessory bumper design for vibration resistance
The SR10A-X3 based on Intel® Haswell QM175 chipset, is powered by Intel® 7th generation Core™ processor onboard. The SR10A-X3 can operate effectively in harsh environment under temp range from -40°C to 60°C and is a perfect solution for military, transportation, factory automation and digital signage applications. SR10A-X3 is based on EBX form factor, DDR4 up to 32GB. It supports triple-display, 2 DP and 1 DVI-I, 2 GIGA LAN port, 4 USB 3.0 and 1 COM port. SR10A-X3 supplies wide power voltage from 9V to 36V DC-in.
Specifikace
| CPU | Core i7-7820EQ, 8M Cache (45W) |
| CHIPSET | Intel® QM175 Chipset |
| MEMORY TYPE | 1 x DDR4 SO-DIMM up to 32 GB with ECC |
| EXPANSION SLOT | 2 x mPCIe (1 x colay with mSATA) for GEN2 |
| STORAGE DEVICE | 1 x mSATA up to 512GB |
| ETHERNET CHIPSET | Intel® I210IT & i217LM GbE |
| FRONT I/O: | |
| USB | 2 x USB 3.0 |
| POWER | 1 x Terminal Block |

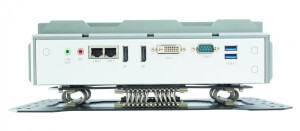

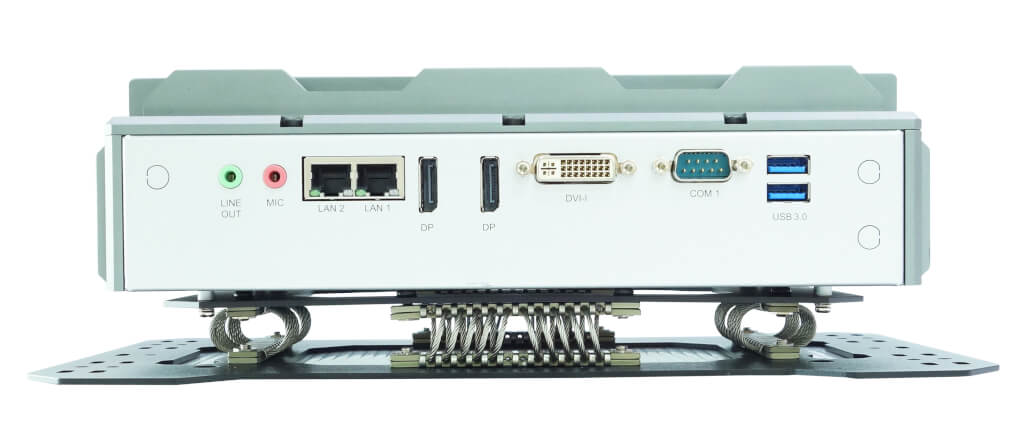

| REAR I/O: | |
| DISPLAYPORT | 2 x 20-pin DP connector (female) |
| DVI-I | 1 x 29-pin DVI-D connector (female) |
| ETHERNET | 2 x RJ45 ports |
| COM | 1x RS-232/422/485 ports, Jumper-selectable (DB9 male) |
| USB | 2 x USB 3.0 |
| DISPLAY INTERFACE | DVI-I interface x 1: 29-pin DVI-I connectors(female); resolution up to 1920 x 1200@60 Hz; DisplayPort interface x 2: 20-pin DisplayPort connectors (female); resolution up to 3840 x 2160@60 Hz |
| POWER REQUIREMENT | 9V to 36V DC-in, AT/ATX mode with power delay on/off |
| DIMENSION | 255 x 149 x 69 mm |
| WEIGHT | 4.11 kg |
| OPERATING TEMP. | -40 to 60°C(ambient with air flow) |
| STORAGE TEMP. | -40 to 85°C |
| RELATIVE HUMIDITY | 5% to 95%, non-condensing |
| MIL-STD-810G TEST | Method 507.5, Procedure II (Temperature & Humidity) Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6 Shock-Procedure I Operating (Mechanical Shock) Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) |
| EMC | CE and FCC certificated |
| GREEN PRODUCT | RoHS, WEEE compliance |
