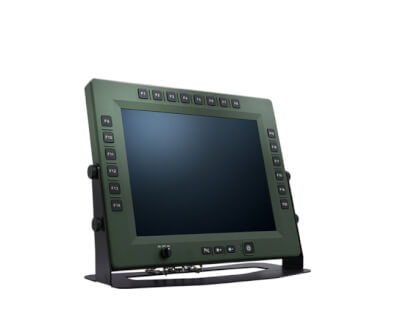

MIL-STD-810G Rugged Mission Display with MIL-DTL-38999 connectors

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

STACKRACK Sky15 rugged mission panel displays which are featuring LCD super brightness up to 1000 nits and night vision (NVIS) under 1.7 nits, optical bonding of protective glass (GFG), touch screens, EMI filtering / EMI mesh shielding, anti-reflection/anti-glare (AR/AG) coatings, the rugged panel displays also designed with IP-65 waterproof and dust proof all-aluminum housings, support extended operating temperature range from -30 to 65°C and flexibly support extended DC power input range from 16V to 50V.

  • 15" Colorful LCD XGA resolution
  • Resistive Touch (GFG)
  • IP65 protection
  • All-aluminum housing
  • Convection cooling
  • Sunlight readable and NVIS compatible
  • IR Touch (by option)
  • EMI Mesh (by option)


Model Sky-15
LCD Panel 15" TFT LCD
Resolution 1024x768 XGA
Aspect Ratio 4:3
Brightness 1000 nits
Max. Colors 16.7M/262k
Viewing Angle 80° (H) /70° (V)
Response Time 11ms (TYP.)
Contrast Ratio 1000 (TYP.)
Touch Panel Glass-Film-Glass 5-Wire resistor touch panel
Function key 20 user Programmable function keys
Display Control Power On/Off
LCD Brightness +/-
Function key backlight On/Off
Display mode Select (On/Off/Night Vision)
DC-In 16.5V to 50V (Vicor Solution)
DVI 1 x MIL-38999 22Pin connector (Amphenol TV07RW-13-35S)
VGA + Audio 1 x MIL-38999 22Pin connector (Amphenol TV07RW-13-35S)
USB 2 x MIL-38999 10Pin connector (Amphenol TV07RW-13-98S)
DC-IN 1 x MIL-38999 4Pin connector (Amphenol TV06RW-11-54S)
Windows Windows 7 32/64 bit, Windows 8 32/64 bit
Linux Fedora 20, Ubyntu 13.10, Ubuntu 14.04
Power Requirement 16.5V to 50V DC-in
Dimension 412 x 59 x 336mm (16.22" x 2.32" x 13.23")
Weight TBD
Operating Temp. -30 ~ +65°C (ambient with air flow)
Storage Temp. -40 ~ +85°C
Relative Humidity 10% to 95%, non-condensing
Railway MIL-STD-810G, MIL-STD-1275, MIL-SD-461E Compliant
