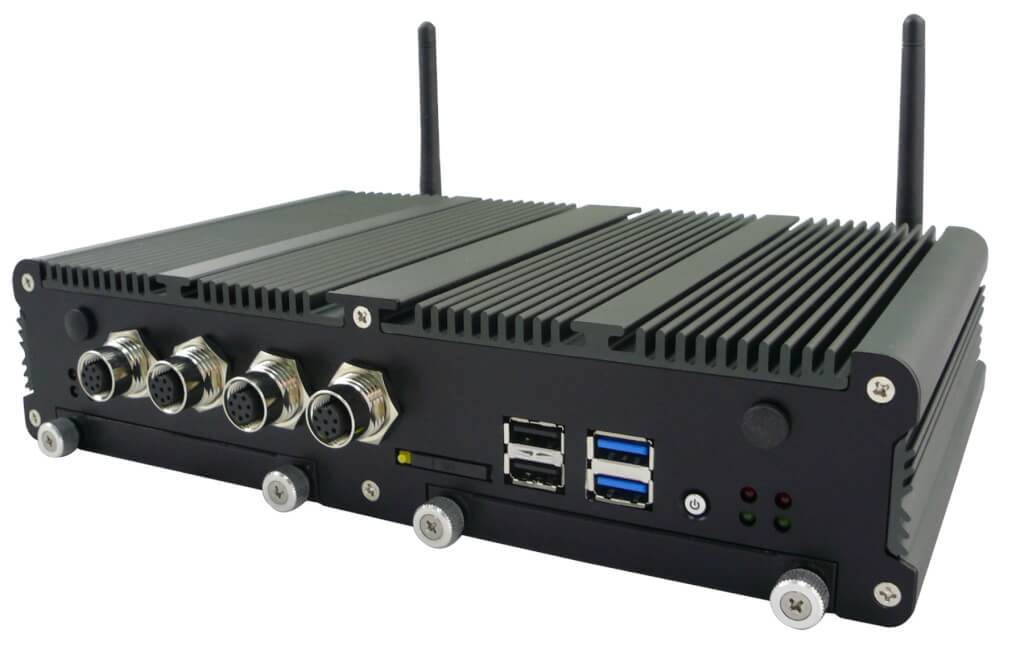

VBOX-3610-POE
Intel Gen4 Core i7-4650U CPU with 4x POE Ports On-Board Computer
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- Intel Core i7-4650U
- Wireless support LTE, 3.5G w/ SIM Card, WLAN, GPS Dead Reckoning, GSM/GPRS, BT
- Support 4 x Power Over Ethernet (POE)
- Smarter Vehicle Power Ignition for Variety Vehicle
- Support Dual Hot Swappable SATA Storage
- Support 1 x CAN Bus 2.0B (Optional)
Specifikace
| SYSTEM | |
|---|---|
| CPU | Intel Gen 5 Core i7-5650U 2.2GHz up to 3.1GHz Intel Gen 5 Core i3-5010U 2.1GHz Intel Gen 4 Core i7-4650U 1.7GHz up to 3.3GHz Intel Gen 4 Core i5-4300U 1.9GHz up to 2.9GHz Intel Gen 4 Core i3-4010U 1.7GHz Intel Gen 4 Dual Core 2980U 1.6GHz |
| Memory | 2 x DDR3L 1600 MHz SO-DIMM up to 16GB |
| LAN Chipset | Intel I210-AT Gb/s Ethernet Controllers Onboard Support PXE and WOL |
| Audio | Realtek ALC662 HD Codec Onboard |
| Watchdog | Watchdog Timer Support, Offer 1 – 255 Step |
| TPM | 2.0 |
| POWER REQUIREMENT | |
| Power Input | 9V -36V DC Power Input |
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software and BIOS |
| Backup Battery | Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery |
| GRAPHICS | |
| Graphics | Intel HD Graphics 6000 / 5000 DirectX Video Acceleration (DXVA) for Accelerating Video Processing - Full AVC/VC1/MPEG2 HW Decode Supports DirectX 11/10.1/10/9 and OpenGL 4.0 |
| Resolution | Up to 4096 x 2304 |
| I/O | |
| Serial Port | 3 x RS-232 (2 with RS-422/485 (Auto Direction Control)) |
| USB Port | 2 x USB 3.0 Ports, 2 x USB 2.0 Ports |
| LAN | 4 x M12 Ports for GbE POE (IEEE802.3AF 15.4W per port) |
| Video Port | 1 x DVI-I, 1 x DP Port, 1 x VGA (Support Triple Independent Display) |
| DIO Port | 4 in and 4 out |
| Audio | 1 x Line-out and 1 x Mic-in (Line-in optional) |
| SIM Card Socket | 1 x SIM Card socket supported onboard with eject |
| MECHANICAL & ENVIRONMENTAL | |
| Dimensions | 250 x 150 x 55 mm |
| Weight | 1780g (bare-bone) |
| Relative Humidity | 0 ~ 95% |
| Operating Temp. | -40 ~ 70°C (Default CPU 17Watt) |
| Storage Temp. | -40 ~ 80°C |
| Certifications | CE, FCC Class A, EMark Compliance, EN50155, EN50121 |
| Patent No. (Taiwan) | M447854, M448011 |
