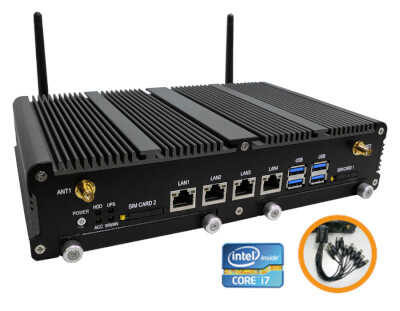

VBOX-3600-V4

Intel Core i7-3517UE Hybrid Mobile DVR Surveillance with 4 Channel Camera On-Board Computer

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Intel Core i7-3517UE 1.7GHz
  • Wireless support LTE, 3.5G w/ Dual SIM Card, WLAN, GPS Dead Reckoning & G-Sensor, GSM/GPRS, BT
  • 9V - 32V DC Input Smarter Vehicle Power Ignition
  • 4 Channel D1 Resolution @120fps for Analog Cameras
  • 4 IP Digital Cameras
  • Dual Hot Swappable SATA Storage with RAID 0,1
  • Support 1 x CAN Bus 2.0B (Optional)

Specifikace

System
CPU Intel Gen 3 Core i7-3517UE 1.7GHz
Memory 1 x DDR3 1066/1333/1600 MHz SO-DIMM up to 8 GB
Chipset QM77
Watchdog 1 ~ 255 Level Reset
Mobile DVR Specification
Video Input 4 Channels (4 x BNC Connectors)
Video Recording Total 120FPS (NTSC), 100FPS (PAL)@D1 Real-Time
Video Display Total 120FPS (NTSC), 100FPS (PAL)@D1
Resolution Format
(S/W MPEG4 or S/W H.264)
NTSCPAL
720x480x30FPS 720x576x25FPS
704x480x30FPS 704x576x25FPS
640x480x30FPS 640x576x25FPS
720x240x30FPS 720x288x25FPS
704x240x30FPS 704x288x25FPS
640x240x30 360x288x25
360x240x30 360x288x25
350x240x30 352x288x25
320x240x30 320x288x25
Audio Input 1 Channel
Audio Format MONO / 8 ~16BITS / 8000~48000HZ
Software SDK for Windows XP, 7, Linux 2.6.20 or Higher
I/O
Serial Port 3 x RS-232 (2 with RS-485 (Auto Direction Control))
USB Port 4 x USB 3.0 Ports, 1 x USB 2.0 Ports for Internal
LAN 4 x RJ45 ports for GbE
Video Port 1 x DVI-I + VGA Connectors on Rear I/O
1 x DP Port Connector on Rear I/O
Support Dual Independent Display
DIO Port 4 in and 4 out
Audio 1 x Line-out and 1 x Mic-in (Line-in optional)
SIM Card Socket 2 x SIM Card socket supported onboard with eject
Power Requirement
Power Input 9V -32V DC Power Input
Power Protection Automatics Recovery Short Circuit Protection
Power Management Vehicle Power Ignition for Variety Vehicle
Power Off Control Power off Delay Time Setting by Software, Default is 5 Mins
Backup Battery Internal Battery Kit for 10 Mins Operating (Optional)
Graphics
Graphics Intel® HD Graphics 4000
DirectX Video Acceleration (DXVA) for Accelerating Video
Processing - Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 3.0
Resolution Up to 1920x1200
Mechanical & Environmental
Dimensions 250 x 150 x 55 mm
Weight 1780g (bare-bone)
Relative Humidity 5 ~ 95% (non-condensing)
Operating Temp. -40 ~ 70°C (SSD), ambient w/ air
Storage Temp. -40 ~ 80°C
Certifications CE, FCC Class A, eMark Compliance, EN50155
Patent No. (Taiwan) M447854, M448011
Ordering Information
Part Number 763600000101
Description Intel Core i7-3517UE Hybrid Mobile DVR Surveillance with 4 Channel Camera On-Board Computer
