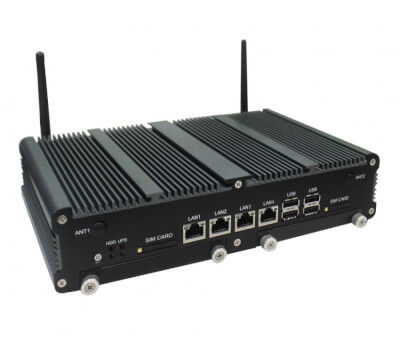

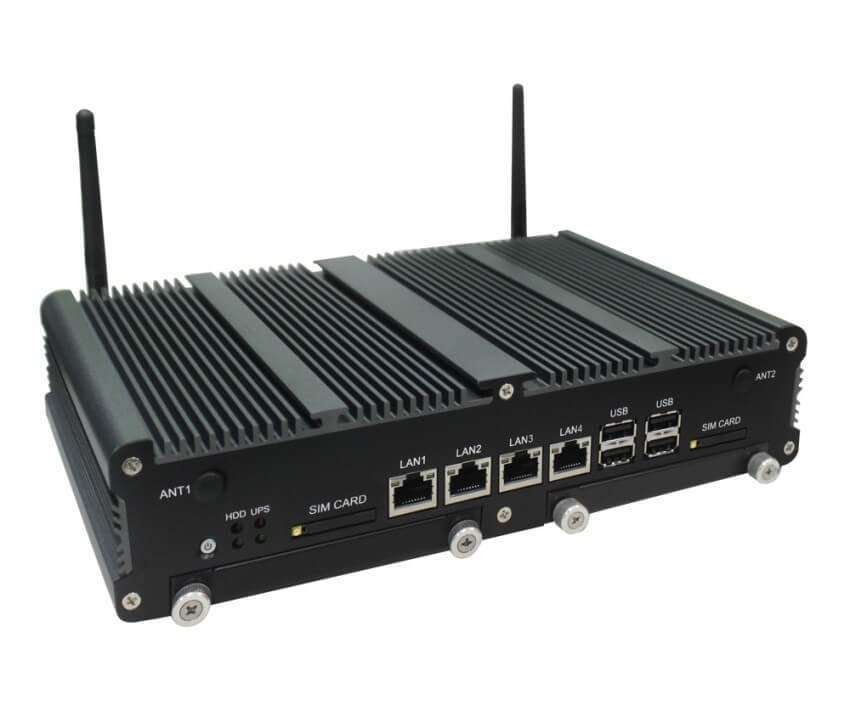

VBOX-3600
Intel Gen3 Core i7 CPU 1.7GHz with HD 4000 GPU On-Board Computer
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- Intel Core i7-3517UE 1.7GHz
- Wireless support LTE, 3.5G w/ Dual SIM Card, WLAN, GPS Dead Reckoning & G-Sensor, GSM/GPRS, BT
- 9V - 32V DC Power Input
- Smarter Vehicle Power Ignition for Variety Vehicle
- Support Dual Hot Swappable SATA Storage
- Support 1 x CAN Bus 2.0B (Optional)
Specifikace
| System | |
|---|---|
| CPU | Intel Gen 3 Core i7-3517UE 1.7GHz Intel Gen 3 Core i3-3217UE 1.6GHz Intel Gen 3 Celeron Dual Core 1047UE 1.4GHz |
| Memory | 1 x DDR3 1066/1333/1600 MHz SO-DIMM up to 8 GB |
| Chipset | QM77 |
| LAN Chipset | Intel I210-AT Gb/s Ethernet Controllers Onboard Support PXE and WOL |
| Audio | Realtek ALC662 HD Codec Onboard |
| Watchdog | Watchdog Timer Support, Offer 1 – 255 Step |
| Power Requirement | |
| Power Input | 9V -32V DC Power Input |
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software, Default is 5 Mins |
| Backup Battery | Internal Battery Kit for 10 Mins Operating (Optional) |
| Graphics | |
| Graphics | Intel® HD Graphics 4000 DirectX Video Acceleration (DXVA) for Accelerating Video Processing - Full AVC/VC1/MPEG2 HW Decode Supports DirectX 11/10.1/10/9 and OpenGL 3.0 |
| Resolution | Up to 1920x1200 |
| I/O | |
| Serial Port | 3 x RS-232 (2 with RS-485 (Auto Direction Control)) |
| USB Port | 4 x USB 3.0 Ports, 1 x USB 2.0 Ports for Internal |
| LAN | 4 x RJ45 ports for GbE |
| Video Port | 1 x DVI-I + VGA Connectors on Rear I/O 1 x DP Port Connector on Rear I/O Support Dual Independent Display |
| DIO Port | 4 in and 4 out |
| Audio | 1 x Line-out and 1 x Mic-in (Line-in optional) |
| SIM Card Socket | 2 x SIM Card socket supported onboard with eject |
| Mechanical & Environmental | |
| Dimensions | 250 x 150 x 55 mm |
| Weight | 1780g (bare-bone) |
| Relative Humidity | 5 ~ 95% (non-condensing) |
| Operating Temp. | -40 ~ 70°C (SSD), ambient w/ air |
| Storage Temp. | -40 ~ 80°C |
| Certifications | CE, FCC Class A, eMark Compliance, EN50155 |
| Patent No. (Taiwan) | M447854, M448011 |
| Ordering Information | |
| Part Number | 763600000100 |
| Description | Intel Gen3 Core i7 CPU 1.7GHz with HD 4000 GPU On-Board Computer |
