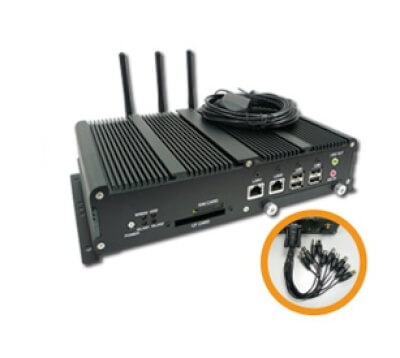

VBOX-3200-V4

Hybridní DVR Mobile Surveillance 4 kamerový palubní počítač s certifikací EN50155

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Procesor AMD G-T56N Dual Core s Radeon HD 6320
  • Bezdrátová komunikace LTE, 3.5G, WLAN, GPS, GSM/GPRS, BT
  • Napájení 9 - 32 VDC
  • 4 kanály pro rozlišení D1 @120fps analogových kamer
  • 2 IP digítální kamery
  • HDMI, RGB, SDI Single Channel HD Camera (Optional)
  • Volitelně 1 x CAN Bus 2.0B

Specifikace

System
CPU AMD G-T56N Dual Core 1.65GHz
Memory 2GB DDR3 1333MHz SO-DIMM (Can be up to 8GB)
Chipset AMD A50M Controller Hub
Watchdog 1 ~ 255 Level Reset
Mobile DVR Specification
Video Input 4 Channels (4 x BNC Connectors)
Video Recording Total 120FPS (NTSC), 100FPS (PAL)@D1 Real-Time
Video Display Total 120FPS (NTSC), 100FPS (PAL)@D1
Resolution Format (S/W MPEG4 or S/W H.264)
NTSCPAL
720x480x30FPS 720x576x25FPS
704x480x30FPS 704x576x25FPS
640x480x30FPS 640x576x25FPS
720x240x30FPS 720x288x25FPS
704x240x30FPS 704x288x25FPS
640x240x30 360x288x25
360x240x30 360x288x25
350x240x30 352x288x25
320x240x30 320x288x25
Audio Input 1 Channel
Audio Format MONO / 8 ~16BITS / 8000~48000HZ
Software SDK for Windows XP, 7, Linux 2.6.20 or Higher
I/O
Serial Port 3 x RS-232 (2 with RS-422/485 (Auto Direction Control))
USB Port 4 x USB 2.0 ports on Front I/O
LAN 2 x RJ45 ports for GbE
Video Port 1 x DVI-I and 1 x VGA Output (Share with DVI-I)
DIO Port 4 in and 2 out with Relay 12V / 80mA
Audio 1 x Line-out (Mic-in or Line-in optional)
SIM Card Socket 1 x SIM Card socket supported onboard with eject
Power Requirement
Power Input 9V -32V DC Power Input
Power Protection Automatics Recovery Short Circuit Protection
Power Management Vehicle Power Ignition for Variety Vehicle
Power Off Control Power off Delay Time Setting by Software, Default is 5 Mins
Backup Battery Internal Battery Kit for 10 Mins Operating (Optional)
Graphics
Graphics AMD G-T56N Radeon HD 6320
UVD3 Hardware Video Decoder - MPEG2, MPEG4, H.264, VC-1, WMV
Resolution Up to 2045 x 1560 @ 85Hz
Mechanical & Environmental
Dimension 250 x 150 x 55 mm
Weight 1780g (bare-bone)
Relative Humidity 5 ~ 95% (non-condensing)
Operating Temp. -30 ~ 60°C (SSD), ambient w/ air
Storage Temp. -40 ~ 80°C
Certifications CE, FCC Class A, EN50155, EN50121, eMark Compliance
