VBOX-3200-IP65

Box PC s procesorem AMD G-T56N, grafikou Radeon HD 6320, krytím IP65 a certifikací EN5015

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Procesor AMD G-T56N Dual Core s Radeon HD 6320
  • Bezdrátová komunikace LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
  • Napájení 9 - 32 VDC Power
  • Digital IO -  4 x DI / 2 x DO s výstupem 12V / 80mA
  • Krytí vůči prachu a vodě IP65

Specifikace

System
CPU AMD G-T56N Dual Core 1.65GHz
AMD G-T40E Dual Core 1.0GHZ (Optional)
AMD G-T44R Single Core 1.2GHz (Optional)
Memory 2 x DDR3 1333MHz SO-DIMM up to 8GB
Chipset AMD A50M Controller Hub
LAN Chipset 2 x Realtek RTL8111E Gb/s Ethernet Onboard, Support PXE and Wake On Lan
Audio Realtek ALC662 HD Codec Onboard
Watchdog 1 ~ 255 Level Reset
Power Requirement
Power Input 9V -32V DC Power Input
Power Protection Automatics Recovery Short Circuit Protection
Power Management Vehicle Power Ignition for Variety Vehicle
Power Off Control Power off Delay Time Setting by Software, Default is 5 Mins
Backup Battery Internal Battery Kit for 10 Mins Operating (Optional)
Graphics
Graphics AMD G-T56N Radeon HD 6320
UVD3 Hardware Video Decoder - MPEG2, MPEG4, H.264, VC-1, WMV
Resolution Up to 2045 x 1560 @ 85Hz
I/O
Serial Port 1 x RS-232 with RS-422/485 (Auto Direction Control))
USB Port 4 x USB 2.0 ports on Front I/O
LAN 2 x M12 Connectors for GbE
Video Port 1 x DVI-I
DIO Port 4 in and 2 out with Relay 12V / 80mA
Audio 1 x Line-out, 1 x Mic-in and 1 x Line-in
SIM Card Socket 2 x SIM Card sockets supported onboard with eject
Mechanical & Environmental
Dimension 250 x 150 x 55 mm
Weight 1780g (bare-bone)
Relative Humidity 5 ~ 95% (non-condensing)
Operating Temp. -40 ~ 70°C (SSD), ambient w/ air
Storage Temp. -40 ~ 80°C
Certifications CE, FCC Class A, EN50155, EN50121, eMark Compliance
IP Rating IP65

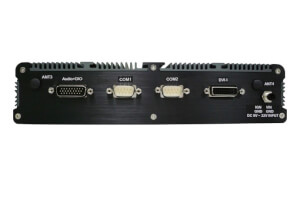

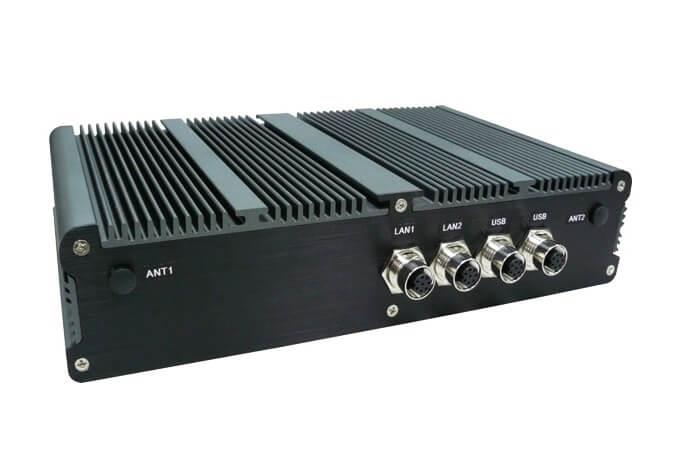

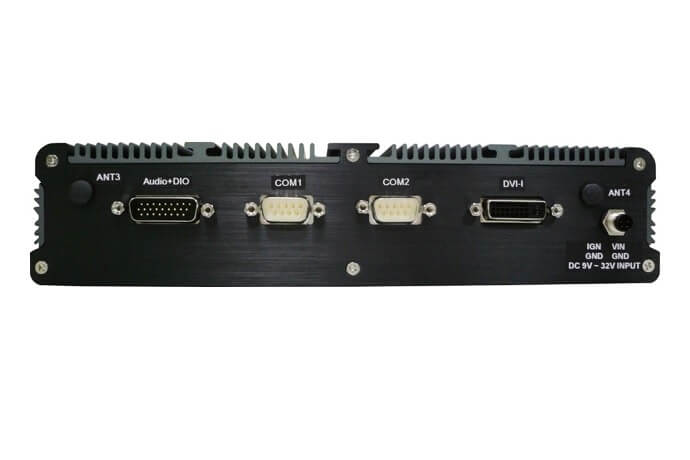

Fotogalerie
