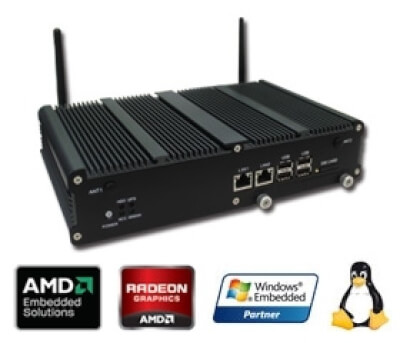

VBOX-3200
Box PC s procesorem AMD G-T56N Dual Core s integrovanou grafikou Radeon HD 6320 s certifikací EN50155
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- Procesor AMD G-T56N Dual Core s integrovanou grfikou Radeon HD 6320
- Podpora bezdrátové komunikace LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
- Napájení v rozmezí 9 - 32 VDC
- 4 x DI / 2 x DO s výstupem 12V / 80mA
- Volitelnět 1 x CAN Bus 2.0B
- Certifikace EN50155, EN50121-3-2 pro rozmezí teplot až po Class TX
- Certifikace EN61373 (rázy a vibrace)
Specifikace
| System | |
|---|---|
| CPU | AMD G-T56N Dual Core 1.65GHz AMD G-T40E Dual Core 1.0GHZ (Optional) AMD G-T44R Single Core 1.2GHz (Optional) |
| Memory | 2 x DDR3 1333MHz SO-DIMM up to 8GB |
| Chipset | AMD A50M Controller Hub |
| LAN Chipset | 2 x Realtek RTL8111E Gb/s Ethernet Onboard, Support PXE and Wake On Lan |
| Audio | Realtek ALC662 HD Codec Onboard |
| Watchdog | 1 ~ 255 Level Reset |
| Power Requirement | |
| Power Input | 9V -32V DC Power Input |
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software, Default is 5 Mins |
| Backup Battery | Internal Battery Kit for 10 Mins Operating (Optional) |
| Graphics | |
| Graphics |
AMD G-T56N Radeon HD 6320 |
| Resolution | Up to 2045 x 1560 @ 85Hz |
| I/O | |
| Serial Port | 3 x RS-232 (2 with RS-422/485 (Auto Direction Control)) |
| USB Port | 4 x USB 2.0 ports on Front I/O |
| LAN | 2 x RJ45 ports for GbE |
| Video Port | 1 x DVI-I and 1 x VGA Output (Share with DVI-I) |
| DIO Port | 4 in and 2 out with Relay 12V / 80mA |
| Audio | 1 x Line-out (Mic-in or Line-in optional) |
| SIM Card Socket | 1 x SIM Card socket supported onboard with eject |
| Mechanical & Environmental | |
| Dimension | 250 x 150 x 55 mm |
| Weight | 1780g (bare-bone) |
| Relative Humidity | 5 ~ 95% (non-condensing) |
| Operating Temp. | -40 ~ 70°C (SSD), ambient w/ air |
| Storage Temp. | -40 ~ 80°C |
| Certifications | CE, FCC Class A, EN50155, EN50121, eMark Compliance |
