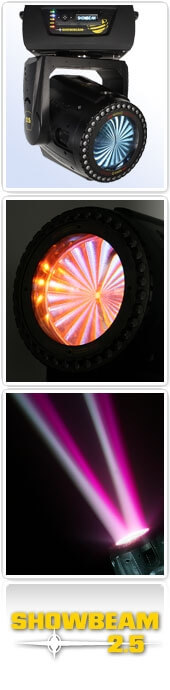

Showbeam 2.5

The Showbeam 2.5 features a jointly developed Philips MSR 2500-watt lamp source. A smooth field, soft-edge illumination is produced using a new radial lenticular homogenizing lens system that provides a signature look on stage. In addition, the dedicated wash light includes a user changeable fixed color wheel, a variable CTO, a full CMY color mixing system, and the ability to produce an 11-degree fixed hard-edge profile with fast color change and Electronic Strobe. The profile can be rapidly zoomed from 11 to 42 degrees.

More than just a washlight, SHOWBEAM 2.5 offers users a revolutionary patent pending effect, the Twin Beam. In this effect, two discrete hard-edge beams exit the fixture on command, with variable control over the Twin Beam deviation and rotation speed — all with little brightness degradation. Users may vary the Twin Beam by adding incremental color using the CMY color mixing system.

SHOWBEAM 2.5 also includes the renowned LED tracking system that encircles the lens, a feature that debuted with its SHOWGUN predecessor. Users may choose to use the LED tracking system alone or as a complementary ring of color to their set.

Features

• Proprietary Short Arc Lamp and optics produce 140,000 center lumens of light
• 2500W wash light
• Electronic strobe
• Full optical dimming and fade to black
• Innovative Twin Beam effect
• Quick zoom range from 11° - 42°
• Zoom Bypass creates 11° hard edge
• Smooth CMY color mixing provides and infinite palette of color.
• Variable CTO color temperature correction
• TriColor effect supports independent color flag control
• Fixed color wheel with 3 colors plus open
• Innovative LED Tracking Ring produces over 5000 lumens of RGB color. Homogenously mixed RGB LED circular array eliminates the multiple colored RGB look when white or mixed colors are produced.
• Tracking and Independent modes selectable via DMX
• Optical encoders automatically correct the head’s position if manually moved

Operation

• 420° pan and 216° tilt movement
• Auto-switching power supply
• 200v-240v
• 32 DMX channels
• DMX/RDM Connector: 5-pin XLR
• Compliances: ETL, CE

Construction

• Modular construction
• Fast service design for Reflector, Condenser and Output lens
• Electronic cooling system control
• Stunningly fast, smooth and quiet yoke movement using proprietary multi-phase technology
• Performance oriented exterior design prevents stray light scatter
• Pan and tilt locks for easy transportation.

Electrical Specifications/Light Source
Power Consumption: 18 Amps at 208 V, 15 Amps at 240V

Fixture Rated Power: 2500 W
Lamp: PHILIPS MSR 2500/2

Color Temperature 7000K
Barco rated Lamp Life: 1250 hrs
CRI >80
CIE X=.320; Y=.330

Mechanical Specifications:
Fixture Dimensions: mm: 596 x 605 x 925 (in: 23.5 x.23.8 x 36.4)

Road Case Dimensions: mm: 749 x 724 (in: 29.5 x 47.25 x 28.5)

Fixture Weight: 66.2kg (146 lbs.)
Shipping Weight (Road Case + fixture): 120 kg (266 lbs.)

One year product warranty and technical support includes touring roadcase

Patents Pending

Specifications Subject to Change Without Notice
