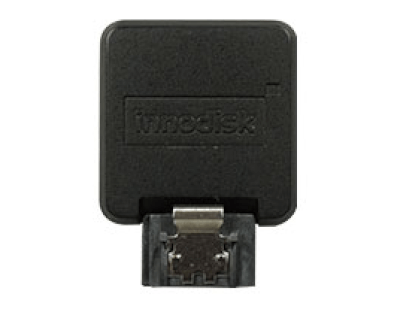

ServerDOM-V 3SE

ServerDOM™ - a boot drive, bootable and compatible with all OS.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Bootable and compatible with all OS
  • Better reliability and MTBF than HDD
  • Small dimension for Blade or 1U servers
  • Compatible with Intel® RSTe
  • Cost effective storage solution
  • Optional SATA Pin 7 VCC to enhance reliability and save space
  • Customizable for IPMI
  • Unexpected power loss protection

Innodisk ServerDOM™ is dedicated to the further of server design. By using ServerDOM™ as a boot drive, there is more space for the hot-swappable data storage devices. Innodisk ServerDOM™ is designed with SATA III interface and complaint with server grade stranded, such as supporting for Intel® RSTe. Furthermore, with our excellent development team, we are able to provide customized services to fulfill different inquires; H/W design or software integration, such as IPMI.

Specifikace

Model Name ServerDOM-V 3SE
Interface SATA III 6.0 Gb/s
Flash Type SLC
Type Vertical
Capacity 2GB~16GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 450/200
Max. Power Consumption 1.5 W
Pin 8 Power Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 20.2 x 30.7 x 8.7
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
