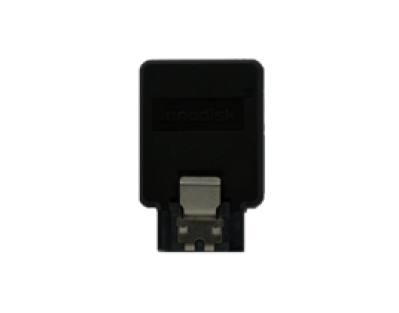

ServerDOM-V 3IE3

ServerDOM™ - a boot drive, bootable and compatible with all OS.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Bootable and compatible with all OS
  • Better reliability and MTBF than HDD
  • Small dimension for Blade or 1U servers
  • Compatible with Intel® RSTe
  • Cost effective storage solution
  • Customizable for IPMI
  • Unexpected power loss protection

Innodisk ServerDOM is dedicated to the further of server design. By using ServerDOM as a boot drive, there is more space for the hot-swappable data storage devices. Innodisk ServerDOM supports SATA III standard (6.0Gb/s) interface with excellent performance. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.

Specifikace

Model Name ServerDOM-V 3IE3
Interface SATA III 6.0 Gb/s
Flash Type iSLC
Type Standard
Capacity 16GB~64GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 440/260
Max. Power Consumption 2.3W
Pin 8 Power Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 20.2 X 30.7 X 8.7 mm
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
