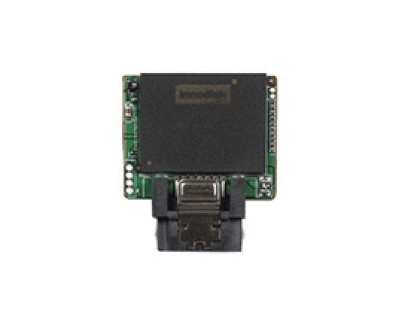

ServerDOM-L 3SE

ServerDOM™ - a boot drive, bootable and compatible with all OS.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Bootable and compatible with all OS
  • Better reliability and MTBF than HDD
  • Small dimension for Blade or 1U servers
  • Compatible with Intel® RSTe
  • Cost effective storage solution
  • SATA Pin 8 VCC to enhance reliability and save space
  • Customizable for IPMI
  • Unexpected power loss protection

Innodisk ServerDOM™ is dedicated to the further of server design. By using ServerDOM™ as a boot drive, there is more space for the hot-swappable data storage devices.

Innodisk ServerDOM™ supports SATA III standard (6.0Gb/s) interface with excellent performance and the innovative Pin8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on customers’ system without additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.

Specifikace

Model Name ServerDOM-L 3SE
Interface SATA III 6.0 Gb/s
Flash Type SLC
Type Vertical
Capacity 2GB~16GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 450/200
Max. Power Consumption 2.5 W
Pin 8 Power Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 25.0 x 29.4 x 7.2
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
