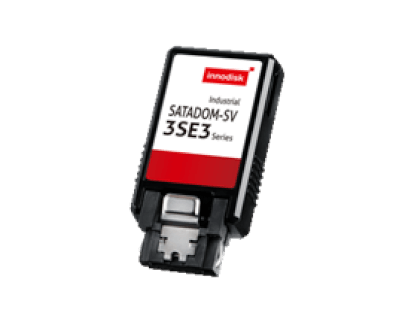

SATADOM-SV 3SE3

Innodisk Serial ATA Disk on Module (SATADOM®) supports SATA III standard (6.0Gb/s) interface

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Best boot drive solution for server and embedded system
  • SATA III interface
  • High IOPS to reduce boot up timing
  • Built-in Pin 8 power supply
  • Intelligent error recovery system
  • Zero mechanical interference
  • Anti-vibration mechanical design
  • iSMART disk health monitoring

Innodisk Serial ATA Disk on Module (SATADOM®) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-ML 3SE3 is designed as the smallest form factor size that could enhance compatibility with various design applications.

Innodisk’s patented Pin7 and Pin 8 SATA power supply technologies use the SATA connector itself as a power supply to drive the device without external power cables. It is a 100% cable-less, shock resistant, space saving and plug-and-play storage solution that optimizes airflow and makes the best use of limited board space in embedded and rackmount server systems.

Innodisk SATADOM-ML 3SE3 effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

Specifikace

Model Name SATADOM-SV 3SE3
Interface SATA III 6.0 Gb/s
Flash Type SLC
Type Vertical
Capacity 4GB~32GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 220/110
Max. Power Consumption 0.35W (5V x 70mA )
Thermal Sensor ST- Optional / WT- Default
H/W Write Protect N
Pin 7 Power Y
Pin 8 Power Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 40.4 x 21.03 x 10.4
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
