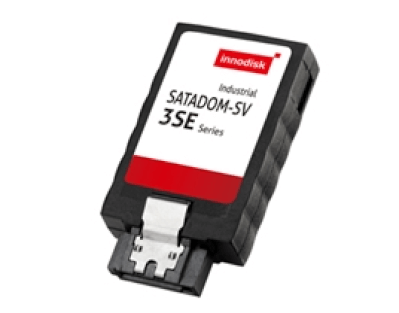

SATADOM-SV 3SE

SATA 6Gb/s interface

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA 6Gb/s interface
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Zero mechanical interference
  • Anti-vibration mechanical design

Innodisk SATADOM™-SV 3SE is designed as the standard SATA 7 pin connector with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance., InnoDisk SATADOM™-SV 3SE absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk SATADOM™-SV 3SE effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

Specifikace

Model Name SATADOM-SV 3SE
Interface SATA III 6.0 Gb/s
Flash Type SLC
Type Vertical
Capacity 1GB~32GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 300/130
Max. Power Consumption 0.6 W (5V x 130 mA )
Thermal Sensor Wide Temp. only
H/W Write Protect N
Pin 7 Power Y
Pin 8 Power N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 20.9 x 39.5 x 7.9
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
