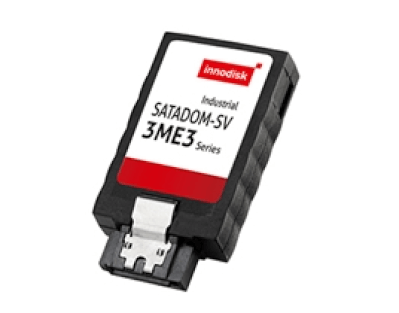

SATADOM-SV 3ME3

Best boot drive solution for server and embedded system

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Best boot drive solution for server and embedded system
  • SATA 6Gb/s interface
  • High IOPS to reduce boot up timing
  • Built-in Pin 7 power supply
  • DRAM-less, 100% data integrity
  • Innovative Firmware Algorithm
  • Anti-vibration mechanical design
  • Built in iData Guard

Innodisk SATADOM-SV 3ME3 is designed as the standard SATA 7 pin connector with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. Innodisk SATADOM-SV 3ME3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk SATADOM-SV 3ME3 effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

Specifikace

Model Name SATADOM-SV 3ME3
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type Vertical
Capacity 8GB~128GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 200/80
Max. Power Consumption 1.8W (5V x 370mA)
Thermal Sensor Wide Temp. only
H/W Write Protect N
Pin 7 Power Y
Pin 8 Power Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 20.9 x 39.5 x 7.9
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
