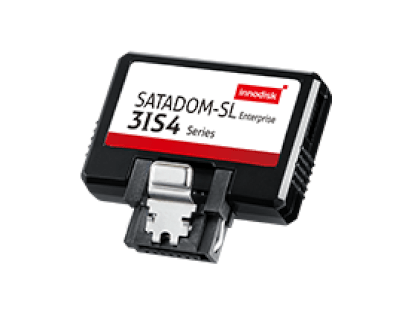

SATADOM-SL 3IS4

SATA III soultion for Server Boot-Up Drive

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA III soultion for Server Boot-Up Drive
  • Exclusive L³ architecture
  • DRAM-less, 100% data integrity
  • Excellent random performance
  • Designed with hardware LDPC ECC engine
  • Cost-effective Flash with iSLC
  • Cable-less through Pin 7/Pin 8 connectors
  • High less than 1U

Innodisk SATADOM-SL 3IS4 is characterized by L³ architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.

Innodisk SATADOM-SL 3IS4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on customer’s system without additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.

Specifikace

Model Name SATADOM-SL 3IS4
Interface SATA III 6.0 Gb/s
Flash Type iSLC
Type Vertical
Capacity 16GB~64GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 530/350
Max. Power Consumption 1.02W (5V x 204mA )
Thermal Sensor Y
H/W Write Protect N
Pin 7 Power Y
Pin 8 Power Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 33.06 x 29.6 x 10.5
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
