- SATA III solution for industrial field
- Exclusive L³ architecture
- DRAM-less, 100% data integrity
- High IOPS to reduce boot up timing
- Designed with hardware LDPC ECC engine
- Support Pin7/Pin 8 power supply

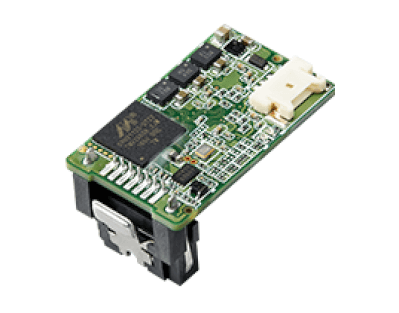

Innodisk SATADOM-SH 3SE4 is characterized by L³ architecture with Marvell NAND controller and SLC NAND Flash. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide excellent performance and prolong lifespan with exceptional reliability.
Innodisk SATADOM-SH 3SE4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
The innovative Pin8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on customer’s system without additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.
|Model Name||SATADOM-SH 3SE4|
|Interface||SATA III 6.0 Gb/s|
|Sequential R/W (MB/sec, max.)||520/260|
|Max. Power Consumption||1.58W (5V x 315mA )|
|Pin 8 Power||Y|
|Pin 7 Power||Y|
|Dimension (WxLxH/mm)||31.59 x 18 x 15.2|
|MTBF||>3 million hours|
|Storage Temperature||-55°C ~ +95°C|
|Operation Temperature||Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
