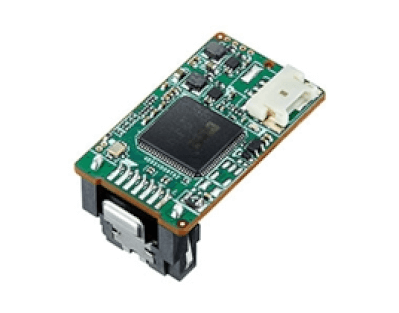

SATADOM-SH 3ME3 V2

Built-in Pin 8 power supply

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Built-in Pin 8 power supply
  • Best boot drive solution for server and embedded system
  • SATA 6Gb/s interface
  • High IOPS to reduce boot up timing
  • DRAM-less, 100% data integrity
  • Innovative Firmware Algorithm
  • Anti-vibration mechanical design
  • Built in iData Guard

Innodisk Serial ATA Disk on Module (SATADOM®) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM®-SH 3ME V2 is designed as the smallest form factor size that could enhance compatibility with various design applications.

The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on customers’ system without additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.

Specifikace

Model Name SATADOM®-SH 3ME3 V2
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type Horizontal
Capacity 8GB~128GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 200/80
Max. Power Consumption 1.8W (5V x 370mA )
Thermal Sensor Wide Temp. only
H/W Write Protect N
Pin 8 Power Y
Pin 7 Power Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 30 x 28.4 x 7.4
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
