- SATA III solution for Server Boot-Up Drive
- Exclusive L³ architecture
- DRAM-less, 100% data integrity
- Excellent random performance
- Designed with hardware LDPC ECC engine
- Cable-less through Pin 7/Pin 8 connectors
- Hardware write protection supported
- High less than 1U

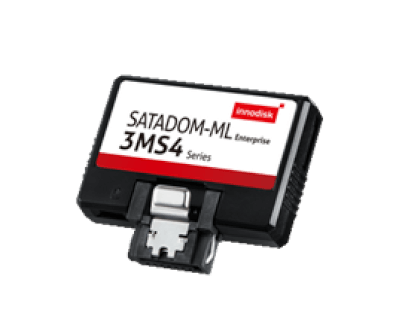

Innodisk SATADOM-ML 3MS4 is characterized by L³ architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.
Innodisk SATADOM-ML 3MS4 is designed for server field. The high of the SATADOM suit for 1U(44.5mm) high server, allow it to fit seamlessly into any server setup. Besides, the main benefit is going to be the ability to use a SATA boot device without using a drive bay.
The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on customer’s system without additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.
|Model Name||SATADOM-ML 3MS4|
|Interface||SATA III 6.0 Gb/s|
|Sequential R/W (MB/sec, max.)||530/210|
|Max. Power Consumption||0.815W (5V x 163mA )|
|H/W Write Protect||Y|
|Pin 7 Power||Y|
|Pin 8 Power||Y|
|Dimension (WxLxH/mm)||36.7 x 31.2 x 10.7|
|MTBF||>3 million hours|
|Storage Temperature||-55°C ~ +95°C|
|Operation Temperature||Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
