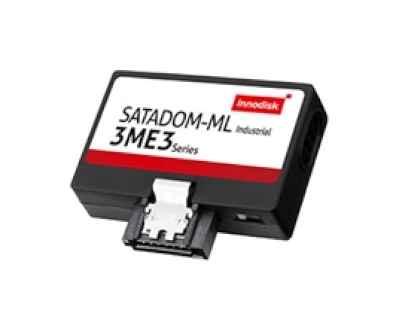

SATADOM-ML 3ME3
Best boot drive solution for server and embedded system
Základní informace
- Best boot drive solution for server and embedded system
- SATA 6Gb/s interface
- High IOPS to reduce boot up timing
- Built-in Pin 7 power supply
- Intelligent error recovery system
- Zero mechanical interference
- Anti-vibration mechanical design
- iSMART disk health monitoring
Innodisk Serial ATA Disk on Module (SATADOM®) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-ML 3ME3 is designed as the smallest form factor size that could enhance compatibility with various design applications. Particularly the 7th pin of standard SATA 7pin connector can optionally be the built-in power VCC pin.
Innodisk SATADOM-ML 3ME3 effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.
Specifikace
| Model Name | SATADOM-ML 3ME3 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Type | Vertical |
| Capacity | 16GB~256GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 400/140 |
| Max. Power Consumption | 2A (5V x 400mA ) |
| Thermal Sensor | Y |
| H/W Write Protect | Y |
| Pin 7 Power | Y |
| Pin 8 Power | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 35.5 x 30.0 x 10.8 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; |
