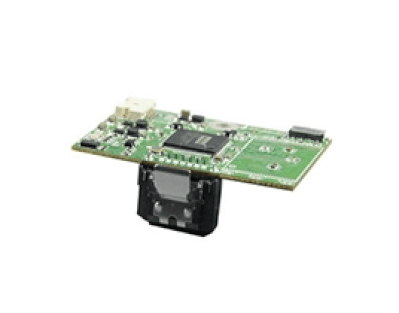

SATADOM-MH 3SE

SATA 6Gb/s interface

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA 6Gb/s interface
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Zero mechanical interference
  • Anti-vibration mechanical design
  • Built-in Pin 7 VCC

Innodisk Serial ATA Disk on Module (SATADOM®) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-MH 3SE is designed as the smallest form factor size that could enhance compatibility with various design applications. Particularly the 7th pin of standard SATA 7pin connector can optionally be the built-in power VCC pin.

Innodisk SATADOM-MH 3SE effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

Specifikace

Model Name SATADOM-MH 3SE
Interface SATA III 6.0 Gb/s
Flash Type SLC
Type Horizontal
Capacity 4GB~32GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 260/130
Max. Power Consumption 1.8W (5V x 360mA )
Thermal Sensor Wide Temp. only
H/W Write Protect N
Pin 7 Power Y
Pin 8 Power N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 40.0 x 30.0 x 9.0
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
