SATA Slim 3SE-P

SATA III soultion for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA III soultion for industrial field
  • DRAM buffer
  • Great I.O.P.S for best system reaction
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Zero mechanical interference
  • Compatible with JEDEC MO-297 standard

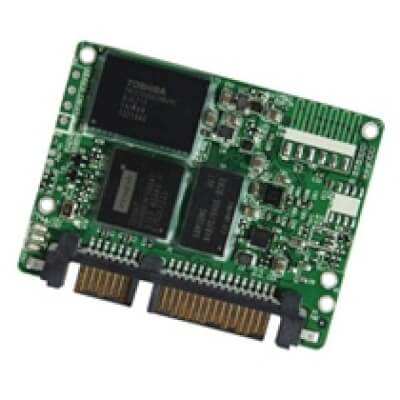

Innodisk SATA Slim 3SE-P is SATA III 6Gb/s Flash based disk, which designed with standard SATA interface (7+15 SATA connector), and compliant with JEDEC MO-297 standard. With its smaller dimension, SATA Slim 3SE-P is an alternative solution of 2.5” SSD for those embedded system that may have mechanical and space concerns. Innodisk SATA Slim 3SE-P operates under SATA III (6.0Gb/s) interface with excellent performance and reliability making it the ideal solution for a variety of applications, including embedded system, and industrial field.

Specifikace

Model Name SATA Slim 3SE-P
Interface SATA III 6.0 Gb/s
Flash Type SLC
Type Standard
Capacity 8GB~128GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 480/330
Max. Power Consumption 1.35W (5V x 270 mA )
Thermal Sensor ST- Optional / WT- Default
External DRAM Buffer Y
H/W Write Protect N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 54.0 x 39.0 x 4.0
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
