SATA Slim 3SE

SATA III soultion for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA III soultion for industrial field
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Zero mechanical interference
  • Compliant with JEDEC MO-297 standard

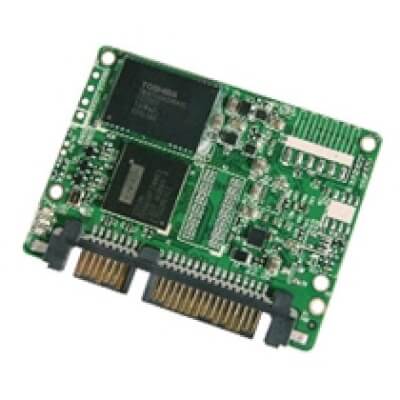

Innodisk SATA Slim 3SE is SATA III 6Gb/s Flash based disk, which designed with standard SATA interface (7+15 SATA connector), and compatible with JEDEC MO-297 standard. With its smaller dimension, SATA Slim 3SE is an alternative solution of 2.5” SSD for those embedded system that may have mechanical and space concerns. Innodisk SATA Slim 3SE operates under SATA III (6.0Gb/s) interface with excellent performance and reliability making it the ideal solution for a variety of applications, including embedded system, and industrial field.

Specifikace

Model Name SATA Slim 3SE
Interface SATA III 6.0 Gb/s
Flash Type SLC
Type Standard
Capacity 4GB~128GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 470/370
Max. Power Consumption 1.1W (5V x 220 mA )
Thermal Sensor ST- Optional / WT- Default
External DRAM Buffer N
H/W Write Protect N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 54.0 x 39.0 x 4.0
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
