SATA Slim 3ME4

SATA III soultion for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA III soultion for industrial field
  • Exclusive L³ architecture
  • DRAM-less, 100% data integrity
  • Excellent random performance
  • Supports TRIM/NCQ/SMART
  • Built in iData Guard
  • Compatible with JEDEC MO-297 standard
  • Designed with LDPC ECC engine

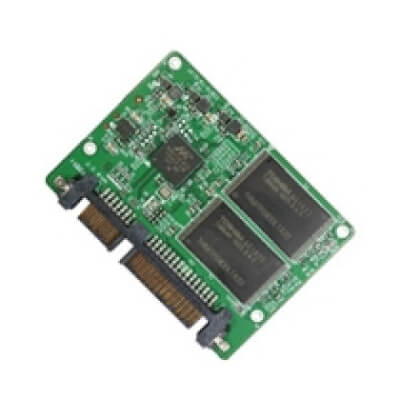

Innodisk SATA Slim 3ME4 is characterized by L³ architecture with the latest SATA III (6.0GHz) Marvell NAND controller. L² architecture multiplied by LDPC (Low Density Parity Check) is Innodisk’s exclusive L³ architecture. L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability. Innodisk SATA Slim 3ME4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

Specifikace

Model Name SATA Slim 3ME4
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type Standard
Capacity 8GB~256GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 530/210
Max. Power Consumption 0.8W (5V x 160 mA )
Thermal Sensor Y
External DRAM Buffer N
H/W Write Protect N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 54.0 x 39.0 x 4.0
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
