SATA Slim 3ME3
SATA III soultion for industrial field
Základní informace
- SATA III soultion for industrial field
- Innovative Firmware Algorithm
- DRAM-less, 100% data integrity
- Excellent random performance
- Wide Temperature: -40℃~85 ℃
- Supports TRIM/NCQ/SMART
- Built in iData Guard
- iSMART disk health monitoring
- Compatible with JEDEC MO-297 standard

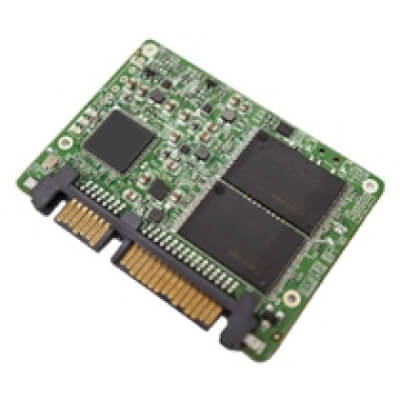

Innodisk SATA Slim 3ME3 is SATA III 6Gb/s Flash based disk, which designed with standard SATA interface (7+15 SATA connector), and compliant with JEDEC MO-297 standard. With its smaller dimension, SATA Slim 3ME3 is an alternative solution of 2.5” SSD for those embedded system that may have mechanical and space concerns. Innodisk SATA Slim 3ME3 operates under SATA III (6.0Gb/s) interface with excellent performance and reliability making it the ideal solution for a variety of applications, including embedded system, and industrial field.
Specifikace
| Model Name | SATA Slim 3ME3 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Type | Standard |
| Capacity | 8GB~256GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 420/140 |
| Max. Power Consumption | 1.6W (5V x 310 mA ) |
| Thermal Sensor | ST- Optional / WT- Default |
| External DRAM Buffer | N |
| H/W Write Protect | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 54.0 x 39.0 x 4.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
