SATA Slim 3ME2

SATA III soultion for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA III soultion for industrial field
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Zero mechanical interference
  • Support iData Guard

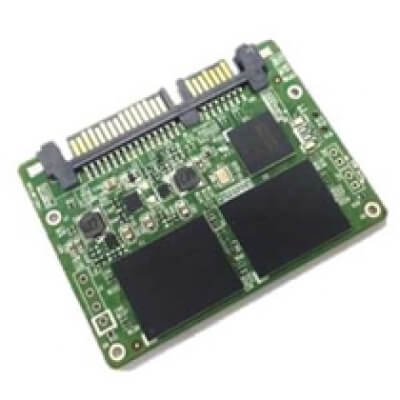

Innodisk SATA Slim 3ME2 is SATA III 6Gb/s Flash based disk, which designed with standard SATA interface (7+15 SATA connector), and compliant with JEDEC MO-297 standard. With its smaller dimension, SATA Slim 3ME2 is an alternative solution of 2.5” SSD for those embedded system that may have mechanical and space concerns. Innodisk SATA Slim 3ME2 operates under SATA III (6.0Gb/s) interface with excellent performance and reliability making it the ideal solution for a variety of applications, including embedded system, and industrial field.

Specifikace

Model Name SATA Slim 3ME2
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type Standard
Capacity 8GB~256GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 510/330
Max. Power Consumption 1.67W (5V x 335 mA )
Thermal Sensor Y
External DRAM Buffer N
H/W Write Protect N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 54.0 x 39.0 x 4.0
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
