Základní informace

EXCEPTIONAL DURABILITY
The S14I is built with robust mechanical design and rigorously
tested components. It meets the standards of MIL-STD 810G,
withstands 4-foot drop, and boasts an IP53 rating. This tough
yet elegant machine breaches the boundary between
semi-rugged and fully-rugged devices.

Built with an Intel 8th Generation CPU and UHD 620 graphics
processor, S14I makes intensive data process a breeze.
With the ultra-high-speed data transmission capability of
Intel Dual Band Wireless AC 9260 and Bluetooth v5.0, all
information is instantly synced and fed back to the data
control center.

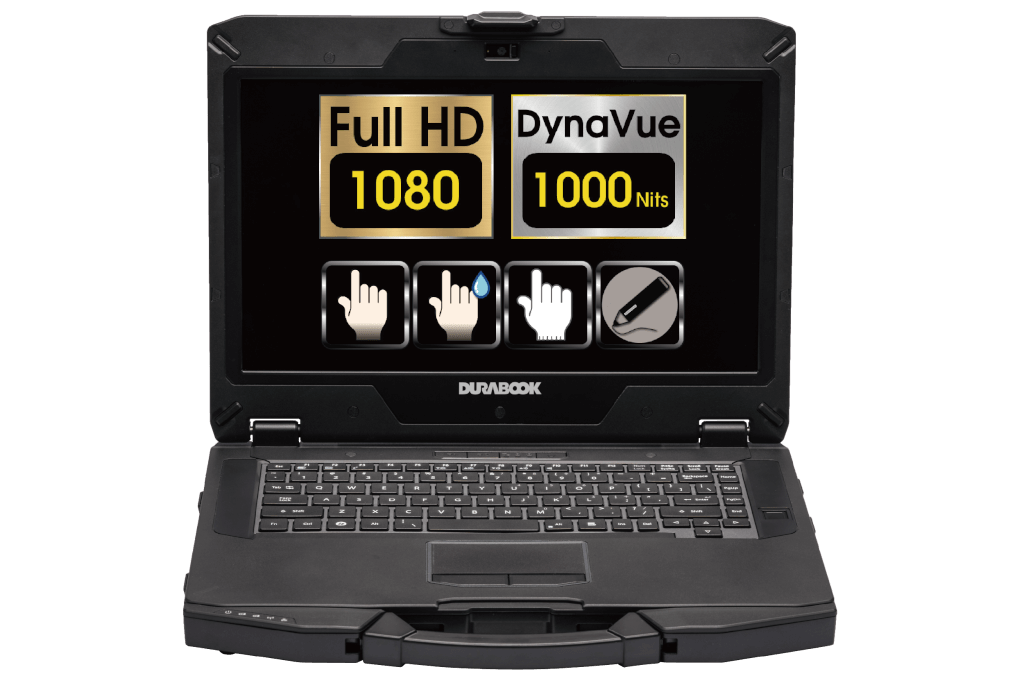

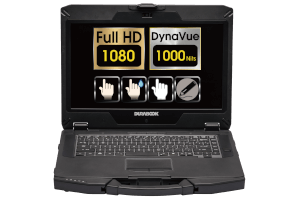

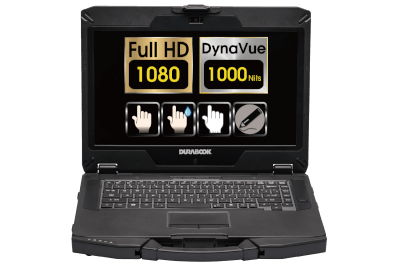

The S14I sports a Full HD 1080p display and proprietary
DynaVue technology. With brightness enhanced up to 1000 nits
and light-filtering technology providing a high contrast ratio (CR)
to eliminate reflection, every detail of imagery is delivered
with the utmost clarity.

In the field, portability equals to productivity. The S14I weighs
only 2.3kg and is 33% slimmer than the previous generation.
Adding ultra-long battery life of 12 hours and battery swap
capability to its mobile form factor, S14I enables non-stop
operation outside of office.

A smart device knows how to communicate in every way, and
the S14I says it all: it’s compatible with a full range of interfaces, and
the PCI Express slot offers all the customized expansion you may need.

Specifikace

Rugged features	MIL-STD 810G certified (Drop,Shock,Vibration,Rain,Dust,Altitude,Freeze/Thaw,High/Low Temperature,Temperature Shock, Humidity) / 4' drops 26 faces / IP 53 certified / Aluminum-magnesium alloy chassis / Port covers / Removable quick-release battery and storage drive / optional sunlight readable display / optional swappable battery
Operating Systém	Windows® 10 Pro 64-bit
CPU	Intel® Core™ i7-8650U vPro™ (8th Gen) 1.9GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache / Intel® Core™ i5-8350U vPro™ processor (8th Gen) 1.7GHz processor with Turbo Boost Technology up to 3.6GHz, 6MB cache / Intel® Core™ i5-8250U processor (8th Gen) 1.6GHz processor with Turbo Boost Technology up to 3.4GHz, 6MB cache
Display	14.0” FHD (1920 x1080) / [optional] 1000 nits Dynavue sunlight readable display with capacitive multi-touch Screen / User selectable touch mode for Finger, Water, Glove, or Stylus programable function.
Memory	2 slots 8GB up to 32GB (2133MHz DDR4)
Storage	500GB HDD / Optional 1TB HDD / Optional 256GB/512GB/1TB SSD / Optional OPAL 2.0 SSD or FIPS 140-2 / Optional 2nd storage (SSD)*
Audio	Integrated microphone / Intel® High Definition Audio Compliant / Integrated speaker x 2 / Keyboard volume and mute controls
Camera	Integrated 2.0 MP web-cam with shutter design
Communication	Integrated 10/100/1000 Ethernet / Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac) / Bluetooth® v 5.0 / Optional dedicated GPS module (UBLOX-NEO-M8N) / Optional 4G LTE multi-carrier mobile broadband / Optional RF antenna pass-through for GPS, WWAN, and WLAN

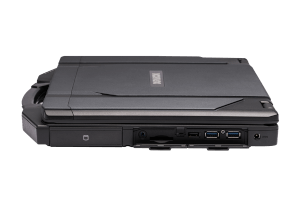

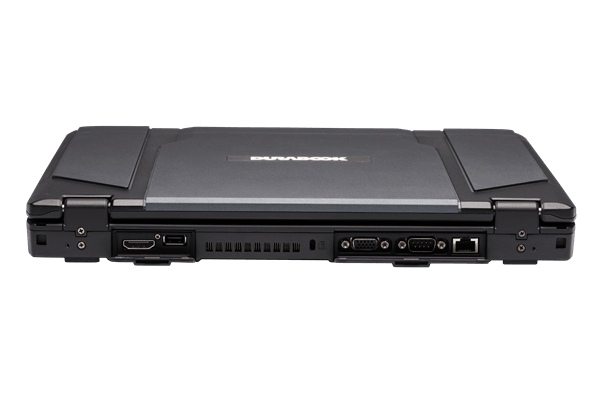

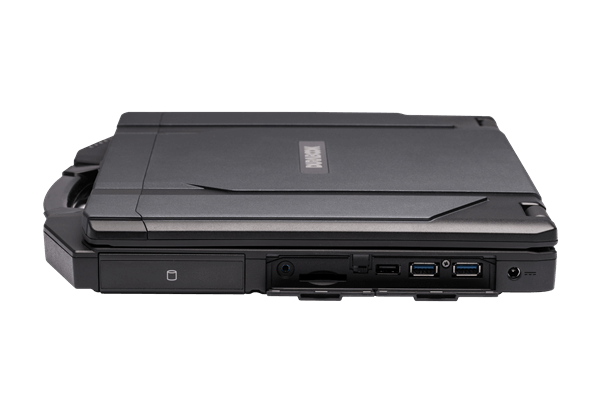

I/O Ports	USB 3.1 (type A) x 2 / USB 2.0 (type A) x 2 / Audio in/out (combo jack) x 1 / SD card (SDXC) x 1 / 10/100/1000 Ethernet (RJ-45) x 1 / VGA port (D-sub,15-pin) x 1 / HDMI port (type A) x 1 or Optional mini-DP port x 2 / Serial port (RS-232 : D-sub,9-pin) x 1 (optional to support RS-422/ RS-485)* / Docking connector (41-pin Pogo) x 1 / SIM card x 1 / Smart card reader x 1 / DC-In jack x 1 / Optional RF antenna pass-through for GPS, WWAN, and WLAN
Keyboard and Input	2 user-definable keys (P1/P2) / Airplane mode slide-switch / Standard Membrane keyboard with Optional LED backlight membrane keyboard
Power	AC adapter : 100-240V, 50Hz-60Hz, 65W / Optional AC Adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA VGA / Main battery Li-Ion, 10.8V, 4700mAh, 12 hours / Optional 2nd battery Li-Ion 10.8V, 4700mAh / Optional bridge battery : 5 minutes swap time
Dimension	350 mm (L) x 282 mm (W) x 38 mm (H)***
Weight	2.3 kg***
Temperature	Operating : - 20°C ~ 60°C / Storage : -51°C to 71°C (-60°F to 160°F ) / Humidity : 5% ~ 95%
Warranty	3-year limited warranty standard
