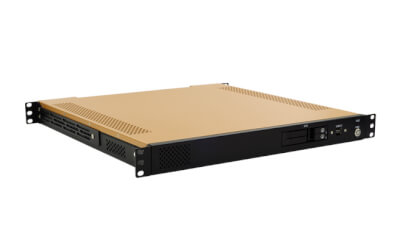

ROC285

9” 1U AC/DC Redundant Fanless Server with Intel®9th Gen. CPU, 90V to 260V AC-Input, Extended Temp. -40 to 60°C

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

19” 1U AC or DC Redundant Fanless Server with Intel®9th Gen. CPU, 90V to 260V AC-Input, Extended Temp. -40 to 60°C

  • Intel® Coffeelake- Refresh i7-9700T (8 cores, 4.3GHz)
  • 2 x SO-DIMM DDR4 2400/2666 MHz up to 64GB
  • 1 x PCIe x16, 1 x Full/Half mPCIe1 x M.2(Key E), 1 x M.2(Key M) expansion slot
  • High efficient I/O 4 x USB3.0, 3 x DisplayPort, 2 x LAN, 1 x Line-out/Mic
  • 2 x 200w AC-DC Power Supply with Redundant support
  • 2 x 2.5” SATA HDD/ SSD easy swap tray
  • Wide range 90~260V AC-in or 9~36V DC-in
  • Extended operating temperature -40 to 60°C

Specifikace

CPU Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron® (Supports up to 65W)

Intel® Core™ i7-9700TE (8C x 3.8 GHz), 12MB Cache
Chipset Intel® Q370 Chipset
Memory Type 2 x SO-DIMM DDR4 2400/2666 MHz up to 64GB
Expansion Slot 1 x PCIe x16 (Graphics card dimension should not be large than 170x110mm)
1x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3
Storage Device 2 x 2.5” SATA HDD/SSD easy swap tray
Ethernet Chipset Intel® I210 & I219LM GbE LAN (support 10/100/1000 Mbps for x2 RJ45 ports)
Rear I/O 3 x DP, resolution up to 4096 x 2304 60@Hz
2 x RJ45 Intel® I210 & I219LM GbE LAN (support 10/100/1000 Mbps)
2 x 3.5mm Audio Jacks (1 x MIC, 1 x Line-Out)
1 x RS232/422/485
4 x USB 3.1(10Gb/s)
1 x AC Inlet
Front I/O 1 x Power Button w/Indicator LED
2 x USB 2.0
2 x Easy Swap SSD Tray
Power Input

90~260V AC-in
9~36V DC-in

Ooperating System Windows 10 64Bit
Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora 20
Dimension 440 x430 x 44 mm (W x D x H)
MIL-STD-810G Test Method 507.5, Procedure II (Temperature & Humidity)
Method 501.5, Procedure I (Storage/High Temperature)
Method 501.5, Procedure II (Operation/High Temperature)
Method 502.5, Procedure I (Storage/Low Temperature)
Method 502.5, Procedure II (Operation/Low Temperature)
Method 503.5, Procedure I (Temperature shock)
EMC CE and FCC compliance
Green Product RoHS compliance
Operating Temp. w/o Graphic Card (ET: -20 to 60°C; UT: -40 to 70°C) ; w/Graphic Card (0 to 50°C)
Storage Temp. -40°C to 85°C
Relative Humidity 5% to 95%, non-condensing
Ordering Information ROC285BB-ET:
19” 1U Rack-mount Rugged Fanless System with Intel® Coffelake Core i7-9700TE, Intel® UHD Graphics 630 with 3 DisplayPort, 1 x PCIe x16, 1 x M.2, 90~260V AC-in, Operating Temp. -20~+60°C

ROC285BB-UT:
19” 1U Rack-mount Rugged Fanless System with Intel® Coffelake Core i7-9700TE, Intel® UHD Graphics 630 with 3 DisplayPort, 1 x PCIe x16, 1 x M.2, 90~260V AC-in, Operating Temp. -40~+70°C

ROC285AA-ET:
19” 1U Rack-mount Rugged Fanless System with Intel® Coffelake Core i7-9700TE, Intel® UHD Graphics 630 with 3 DisplayPort, 1 x PCIe x16, 1 x M.2, 9~36V DC-in, Operating Temp. -20~+60°C

ROC285AA-UT:
19” 1U Rack-mount Rugged Fanless System with Intel® Coffelake Core i7-9700TE, Intel® UHD Graphics 630 with 3 DisplayPort, 1 x PCIe x16, 1 x M.2, 9~36V DC-in, Operating Temp. -40~+70°C
