ROC200-DL
MIlitary Xeon D fanless server s procesorem Intel Xeon® D-1700 a GPU NVidia 5000Ada MXM
Popis
- Intel® Xeon® D-1746TER, D-1732TE, D1718T processor (Ice Lake-D LCC)
- Nvidia MXM 5000Ada (9728 CUDA, 16GB GDDR6)
- Nvidia MXM 3500Ada (5120 CUDA, 12GB GDDR6)
- Up to 128GB DDR4 SO-DIMM
- MIL-STD 810 Thermal, Shock, Vibration, Humidity
- COM Express Type 7 with MXM-GPU Expansions
- Extreme Temperature Support -20°C to 50°C
- 9V~36V DC-IN
- Options for MIL-461 EMI Filter, EMI Shielding
Specifikace
| Processor | Intel® Ice Lake D-1746TER, 2.0/3.1GHz, 15MB, 67W, 10C/20T Intel® Ice Lake D-1732TE, 1.9/3.0 GHz, 15MB, 52W, 8C/16T Intel® Ice Lake D-1718T, 2.6/3.5GHz, 10MB, 46W, 4C/8T (Option) |
| Memory type | DDR4, Up to 128GB SO-DIMM / RDIMM(option) |
| Graphic | Embedded NVIDIA® Quadro 5000Ada/3500Ada - Ada LovelanceTM AD103-950 Architechture - 9728/5120 CUDA cores, 76/40 RT Cores, and 304/160 Tensor Cores - 16GB/12GB GDDR6 memory, 256/192-bit -12GB GDDR6 menory 192-bit Embedded NVIDIA® RTX™ A4500 /A2000 /A1000 - Ampere Architecture - 5888/2560/2048 CUDA® cores, 46/20/16 RT Cores, and 184/80/64Tensor Cores - 16GB/8GB GDDR6 memory, 256/128-bit |
| TPM | Chipset: Infineon, Type:TPM 2.0 |
| BIOS | AMI UEFI BIOS |
| IPMI | Yes (by Item) |
| USB | 4x USB3.0 + 2x USB2.0 |
| Ethernet | 4x 10GbE SFP+ or 2x 25GbE SFP28(option) |
| Storage | 1x M.2 2280 M-key SATA SSD, up to 2TB |
| COM Port | 4x RS232/422/485 (function select by jumper) |
| GPIO | 4x DI/DO(4 in / 4 out) |
| Power Type | 9V ~ 36V DC IN |
| Operating Temperature | -20 to +50°C |
| Dimension(WxLxH) | 220 x 300 x 88.0 mm |
| LAN | 4x 10GbE SFP+ ports or 2x 25GbE SFP28 + 2x 10GbE T-base (option) |
| COM | 2x RS232 |
| Power | 1x 4P Terminal Block, 9V~36V DC-IN |
| USB | 2x USB3.0+2x USB2.0 (Option) |
| COM | 1x RS232/422/485 |
| Display | 2x DP ports or 1x VGA(by Item) |
| Switch | Power Button with Back light |
| LED | HDD/SSD Indicator LED |
| Standard | MIL-STD-810 |
| Operation Temp. | -20°C to +50°C |
| Relative Humidity | 5% to 95%, non-condensing. |

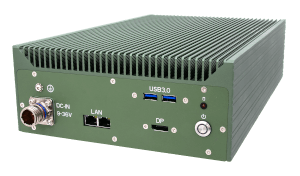

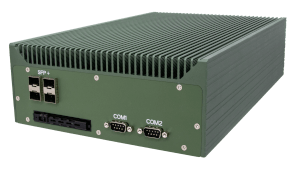

Fotogalerie
