RNA Series - DVI
Real-Time KVM-over-IP Network Adapter
Základní informace
- DVI-D Single and Dual Links
- Open Standard Uncompressed and Compressed Video
- 10GbE and 1GbE Standard IP Networks
- Pixel Perfect, Lossless, Low Latency
The RNA Series - DVI is a versatile KVM device configurable as an encoder, decoder, or codec. Featuring two DVI-D single link and two DVI-D dual link channels, each channel may be designated as an input or output to optimize system architecture.
RNA Series - DVI
Video
- DVI-D SL & DL
- SL: 1920 x 1200 @ 60 Hz / DL: 2560 x 1600, 2048 x 2048 and 3840 x 2160 @ 30Hz
- Pixel encoding RGB 4:4:4
- Uncompressed pixel perfect, lossless video quality
- Compressed H264
- Near zero latency (less than one frame)
Interfaces
- USB-B computer host
- USB-A for workstation HID
- Analog Audio line in and line out
- 2x 1G or 10G SFP+ sockets media ports for KVM
- 1x RJ45 socket for network management and service
Devices
- Single configurable form-factor for encoder, decoder and CODEC.
- Rackmount, desktop and rugged chassis options
Operation
- Point-to-point, point-to-multipoint, multi-point to multipoint matrix
- RESTful API for configuration
- Web interface for software updates and monitoring
- LED’s for module identification and troubleshooting
- Management platform though secure https and ECDH key exchange
Transmission
- IP based signal transmission over standard 1 or 10 Gigabyte networks
- Redundant media ports for maximum bandwidth or fail safe network architectures
Rugged & Reliable
- MIL-STD 810G qualified
- CODEC local server passive safe-pass through
- Redundant networking
- Image Freeze detection

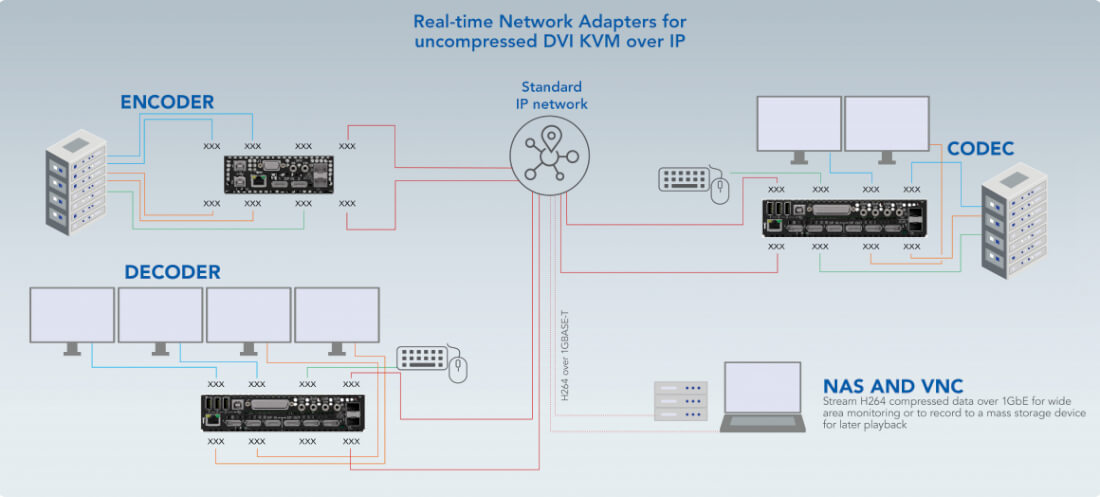

ENCODER - Server Side Connection
Configured as an encoder, the RNA-DVI is equipped with four DVI inputs, with one USB-B host connection, dual SPF+ slots, two analog line in and out, and GPIO. Each input is encoded and streamed through a standard IP network in any combinations of native uncompressed, reduced, or compressed H264 for end-point distribution. The RNA-DVI encoder can support a single server up to quad-head.
The compressed H264 stream may is suitable for recording and distribution to remote facilities for viewing with standard media players. It may also be captured by a decoder and de-compressed for full resolution playback at higher latency.
DECODER - Remote Client Workstation
Configured as a decoder the RNA-DVI is a remote end-point equipped with four DVI outputs, four USB-A HID connections, dual SPF+ slots, two bi-directional audio channels and GPIO. The RNA-DVI decoder can support a quad-head remote client workstation with full USB- HID control and bi-directional audio. All four displays head can play full screen FHD video simultaneously, or if compositions are desired, 2 screens can be composited with up to four servers while the other two screens my play FHD full screen simultaneously.
CODEC - Local/Remote Client Workstation
The RNA-DVI CODEC may be configured as a combined encoder and decoder in a single package. Featuring two DVI inputs and two DVI outputs the CODEC acts as both a remote client workstation and local server control. Passive safe-pass-through (SPT) allows local server control even in the event the network is broken or even if the RNA loses power.

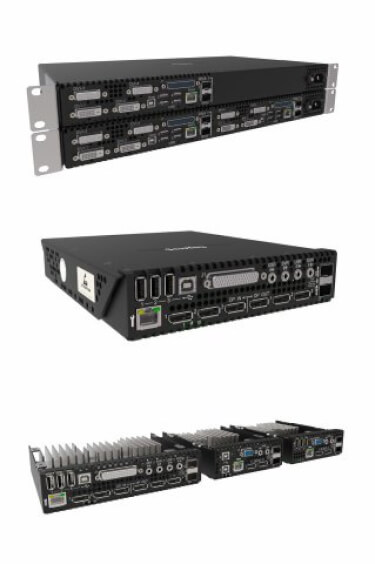

RNA-DVI Chassis options
Rackmount Chassis
- Standard 19” 1U Rackmount
- Houses one or two RNA-DVI modules
- Front presented AC Power
- 8x GPIO
- MIL-STD-810F

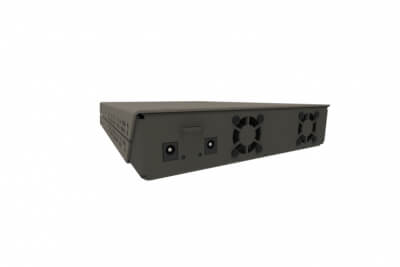

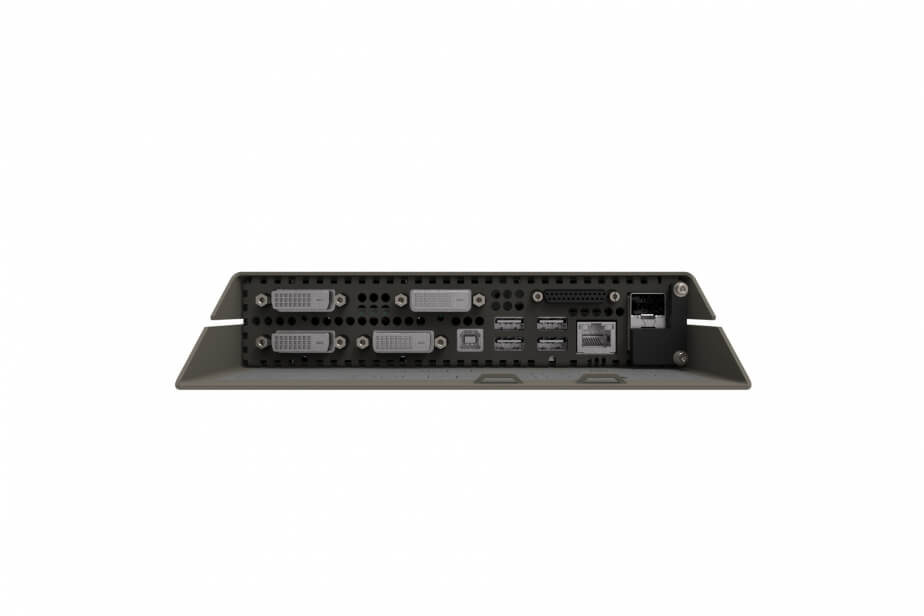

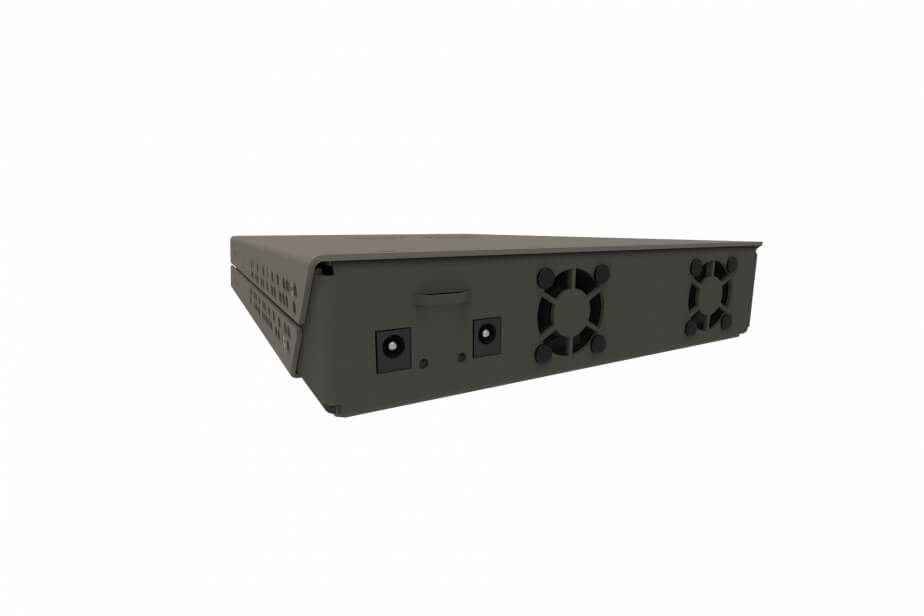

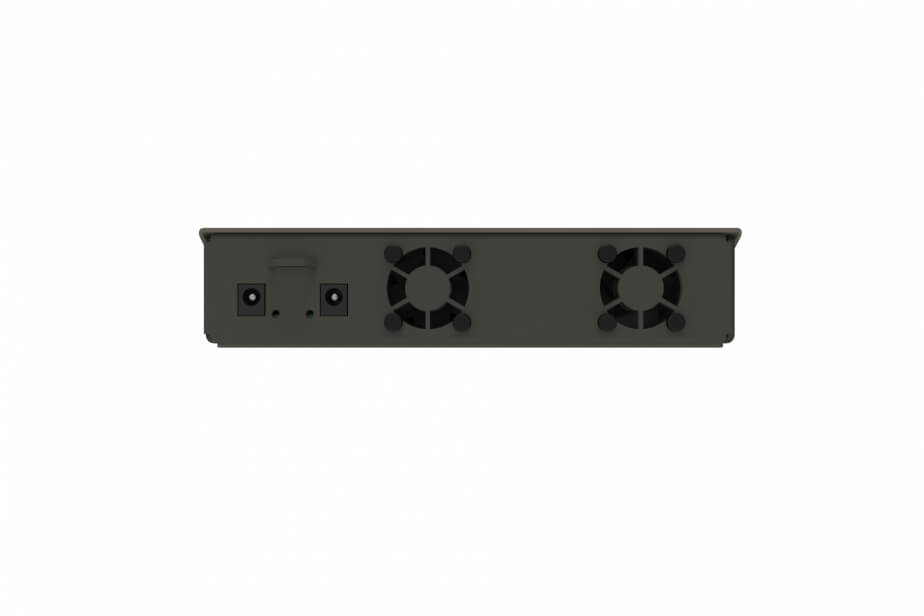

Desktop Chassis
- Convenient desktop appliance
- 1U ½ width single RNA-DVI module
- Rear presented redundant DC power
- 2x GPIO
- IEC 60068
Rugged Chassis
- Convenient rugged desktop appliance
- Single RNA-DVI module
- Fully sealed, drip proof, fan less
- Rear presented AC power - MIL connector
- 2x GPIO
- MIL-STD-810F
Specifikace
| PRODUCT SPECIFICATIONS | |||
|---|---|---|---|
| Streaming video standards | IETF RFC4175 (uncompressed) IETF RFC3984 (H.264) |
||
| Video | Up to 4x SL DVI-D at 1920x1200@60Hz Up to 2x DL DVI-D at 2560x1600 or 2048x2048 or 3840x2160@30Hz |
||
| Input devices | 4x USB type A (HMI) 1x USB type B (host) |
||
| Analog Audio (On GPIO Connector) |
2x Line-in/Line-out 1x Mono microphone input with separate bias 1x Stereo headphone output |
||
| Safe pass-through | Passive SPT - DVI, Audio, USB | ||
| Network connections | 2x 10GBASE-SR or 1000BASE-T |
| CHASSIS SPECIFICATIONS | |||
|---|---|---|---|
| RNA-212/213 Rackmount | RNA-110 Rugged | RNA-310 Desktop | |
| Dimensions HxWxD mm (inches) |
44 x 430 x 257 (1.73" x 16.93" x 10.11") |
61 x 208 x 273 (2.4" x 8.19" x 10.75") |
42 x 194 x 300 (1.65" x 7.64" x 11.81") |
| Weight Kg | 3.0/3.9 kg (6.61/8.6 lbs) | 2.7 kg (5.95 lbs) | 1.6 kg (3.53 lbs) |
| Power | 100-240 VAC autorange, 50/60Hz Single 40W Dual 80W (typical) |
MIL-Connector 100-240 VAC autorange, 50/60Hz 40W (typical) |
12VDC 40W (typical) |
| GPIO | 10x discrete input 10x discrete outputs |
2x discrete input 2x discrete outputs |
2x discrete input 2x discrete outputs |
| system availabilty | Failover modes Built-in monitoring (I/O’s & network faults) MTBF: Naval Sheltered typ. 20,000h @ 25°C |
||
| Setup/control | Control API via https Configuration via web service |
| ENVIRONMENTAL SPECIFICATIONS | |||
|---|---|---|---|
| RNA-212/213 Rackmount | RNA-110 Rugged | RNA-310 Desktop | |
| Shock | MIL-STD-810G 30g/ 12.5ms |
MIL-STD-810G 30g/ 12.5ms MIL-STD-901D |
IEC 60068-2-27 3 g – 6 ms half sine IEC 60068-2-31 drop only Bench Handling 10 cm drops |
| Vibration | MIL-STD-167-1 Sinusoidal (operating and non-operating) 5-20 Hz: 1.27 mmp (0.05” p) 20-2000 Hz: 2 g |
MIL-STD-167-1 Sinusoidal (operating and non-operating) 5-20 Hz: 1.27 mmp (0.05” p) 20-2000 Hz: 2 g |
IEC 60068-2-64 0.5 grms, 10–100Hz, random, 20min/cycle |
| EMI/EMC | MIL-STD-461F Navy ships (below deck) | MIL-STD-461F Navy ships (below deck) | EN 55032:2012 EN 61000 |
| Temperature | MIL-STD-810G Operating: 0°C - +50°C Storage: -40°C - +70°C |
MIL-STD-810G Operating: 0°C - +50°C Storage: -40°C - +70°C |
IEC 60068-2-1/IEC 60068-2-2 Operating: 0°C - +40°C Storage: -20°C - +60°C |
| Humidity | MIL-STD-810G 95% @ 40°C non condensing |
MIL-STD-810G 95% @ 40°C non condensing |
IEC 60068-2-78 85% @ 35°C non-condensing, 72 hours |
| Drip Proof | No | MIL-STD-810G Waterproof (vertical mount) |
No |
| Altitude/Low pressure | MIL-STD-810G Operating up to 25,000 ft Non-Operating up to 40,000 ft |
MIL-STD-810G Operating up to 25,000 ft Non-Operating up to 40,000 ft |
IEC 60068-2-13 Operating up to 15,000 ft Non-Operating up to 40,000 ft |
| Other certifications and compliances | FCC-A, EN 55022/24, IEC 60950 (CE), EU RoHS, EU REACH | |
