RNA Series - Display Port
Real-Time 4K KVM-over-IP Network Adapter
Základní informace
- Display Port 1.2a
- Open standard uncompressed 4K UHD
- 10GbE or 25GbE Standard IP network
- Pixel perect, lossless, low-latency
The RNA Series - Display Port is a powerful real-time KVM system, available in encoder, decoder and codec module variants. The RNA Series - Display Port is capable of processing 4K UHD 2160 x 3840 resolutions in uncompressed pixel-perfect lossless quality in real-time.
RNA Series - Display Port highlights
Video
- DisplayPort 1.2a
- Support of 4K UHD 3840 x 2160 @ 60Hz
- Pixel encoding RGB 4:4:4
- Uncompressed pixel perfect, lossless video quality
- Near zero latency (less than one frame)
Interfaces
- USB-B computer host
- USB-A for workstation HID
- Analog Audio line in and line out
- 2x 10G/25G SFP+ sockets media ports for KVM
- 1x RJ45 socket for network management and service
Devices
- Compact Encoder, Compact Decoder, and Codec modules
- Configurable 19” 1U Rackmount Chassis
- Desktop CODEC appliance
Operation
- Point-to-point, point-to-multipoint, multi-point to multipoint matrix
- RESTful API for configuration
- Web interface for software updates and monitoring
- LED’s for module identification and troubleshooting
- Management platform though secure https and ECDH key exchange
Transmission
- IP based signal transmission over standard 10 or 25 Gigabyte networks
- Redundant media ports for maximum bandwidth or fail safe network architectures
Rugged & Reliable
- MIL-STD 810G qualified
- CODEC local server active safe-pass through
- Redundant networkingImage Freeze detection
- Image freeze detection

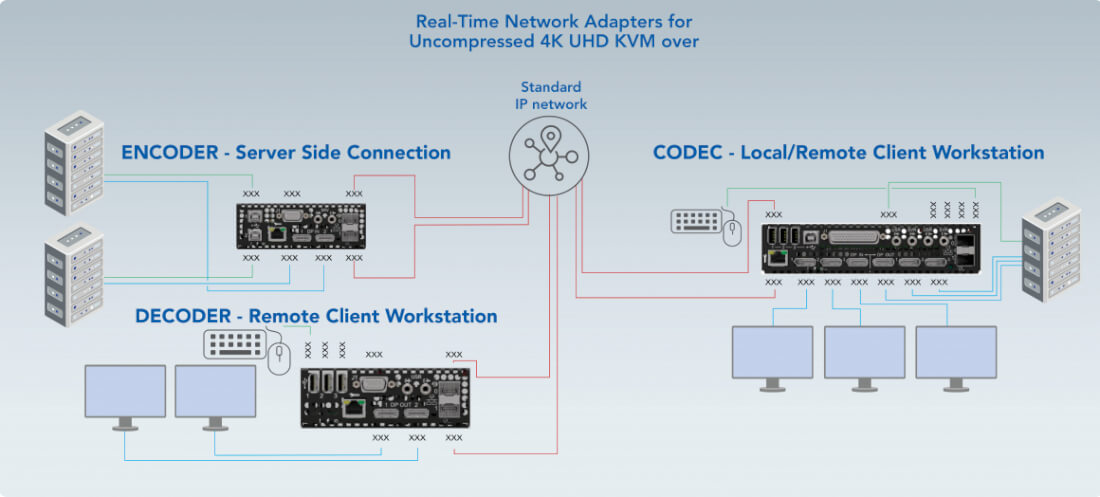

ENCODER – Server Side Connection
The RNA-DP encoder is equipped with two display port inputs, two USB-B host connections, two SPF+ slots, one bi-directional analog audio channel, and eight GPIO. The RNA-DP Encoder can support a single dual-headed server, or two single-headed servers simultaneously.
DECODER – Remote Client Workstation
The RNA-DP Decoder is equipped with two display port outputs, three USB-A HID connections, two SPF+ slots, one bi-directional analog audio channel, and eight GPIO. The RNA-DP decoder can support a dual-head remote client workstation with full HID control and bi-directional audio. Each display head can play full screen full-resolution 4K video, or up to 4 server compositions on each screen (8 total).
CODEC – Local/Remote Client Workstation
The RNA-DP CODEC combines the functions of an encoder and decoder in a single appliance. Featuring three display port inputs and three display port outputs, the RNA-DP CODEC offers the highest 4K input/output channel density on the market. In addition, CODEC has one USB-B host connection, three USB-A HID connections, two SPF+ slots, two bi-directional analog audio channel, and sixteen GPIO.
Supporting both local server control and remote client workstation, the RNA-DP CODEC provides unparalleled system architecture design flexibility and fail-safe operation. Safe-pass-through (SFP) on the RNA-DP CODEC is activated in the event network connection is lost local server control is maintained. Unlike the RNA-DVI, the RNA-DP must remain powered in SFP mode.
RNA-DP Chassis options
Rackmount Standard 19" 1U rackmount Chassis
- Houses up to three encoder or decoder modules, or two CODEC modules.
- Racks may be ordered in any mix of encoders, decoders or CODEC according architecture needs
- Front presented AC power
- Fan airflow direction configurable
- MIL-STD-810G

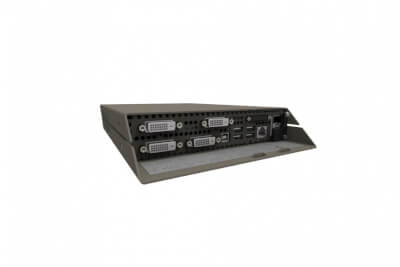

Desktop CODEC
- Convenient desktop appliance
- 1U ½ width single CODEC module
- Redundant DC power – rear presented
- MIL-STD-810G
Open Frame Modules
- Stock spare Compact or Codec modules Line Replaceable units
- Integrate open frames into custom enclosure or housing
Specifikace
| GENERAL SPECIFICATIONS | |||
|---|---|---|---|
| Streaming video standard | IETF RFC4175 (uncompressed) | ||
| Video Timing | Up to 4K UHD 3840 x 2160 at 60Hz, 8 bit color |
| GENERAL SPECIFICATIONS | |||
|---|---|---|---|
| CODEC | ENCODER | DECODER | |
| Video | 3x DP 1.2a input 3x DP 1.2a output |
2x DP 1.2a input | 2x DP 1.2a output |
| USB | 1x USB type B (host) 3x USB type A (HMI) |
2x USB type B (host) | 3x USB type A (HMI) |
| Analog Audio | 2x 3.5 mm TRS jack line-in 2x 3.5 mm TRS jack line-out |
1x 3.5 mm TRS jack line-in 1x 3.5 mm TRS jack line-out |
1x 3.5 mm TRS jack line-in 1x 3.5 mm TRS jack line-out |
| Active Safe pass-through | DP, Audio, USB | N/A | N/A |
| GPIO | 16x I/O + 1x SPT 12 x TLL level 4 x RS level |
8x I/O 6x TTL level 2x RS level |
8x I/O 6x TTL level 2x RS level |
| Network connections | 2x 25GBASE-SR/LR or 10GBASE-SR/LR (single or multimode) | ||
| Setup/control | Control API via https Configuration via web service |
| ENVIRONMENTAL SPECIFICATIONS | |||
|---|---|---|---|
| Shock | MIL-STD-810G 30g/ 12.5ms |
||
| Vibration | MIL-STD-167-1 Sinusoidal (operating and non-operating) 5-20 Hz: 1.27 mmp (0.05” p) 20-2000 Hz: 2 g |
||
| EMI/EMC | MIL-STD-461G Navy ships (below deck) | ||
| Temperature | MIL-STD-810G Operating: 0°C to 50°C Storage: -40°C to +70°C |
||
| Humidity | MIL-STD-810G 95% @ 40°C non-condensing |
||
| Altitude/Low pressure | MIL-STD-810G Operating up to 25,000 ft Non-Operating up to 40,000 ft |
||
| Other certifications and compliances | FCC-A, EN 55022/24, IEC 60950 (CE), EU RoHS, EU REACH |
| CHASSIS SPECIFICATIONS | |||
|---|---|---|---|
| Rackmount | Desktop CODEC | ||
| Dimensions HxWxD mm (inches) |
44 x 429.5* x 257 (1.782" x 16.909" x 10.118") *excludes bracket |
42.5* x 188.5 x 220 (1.673" x 7.421" x 8.661") *excludes rubber foot |
|
| Weight | <5.5 kg | < 3kg | |
| Power Consumption | Typ. 130 W* Max 150 W *RNA-423 fully populated |
Typ. 45 W Max 50 W |
|
| Power Input | 100-240 V AC | Redundant 12V DC |
| RACK MOUNT CHASSIS CONFIRGURATION AND NAMING CONVENTION | |||
|---|---|---|---|
| Configuration | Slot 1 | Slot 2 | Slot 3 |
| RNA-421 (single module) | C1 or E1 or D1 | - | - |
| RNA-422 (double module) | C1 or E1 or D1 | C1 or E1 or D1 | - |
| RNA-423 (triple module) | E1 or D1 | E1 or D1 | E1 or D1 |
