RNA 300 Series

Desktop Real-Time KVMA-over-IP Network Adapter

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

Deploy real-time, pixel-perfect video and multi-user desktop distribution with open-standard networks and streaming.

Rugged RNA Adapters encode and decode desktop content (video, audio, USB) to and from standard IP streams, enabling collaboration and recording in multi-user environments.

Real-Time KVMA Switching over Standard Networks

The RNA Series of Real-Time Network Adapters provides desktop distribution (DVI-D, audio, USB-HID) via standard IP streams and 10G network switches. These devices enable real-time pixel-perfect remote desktops for multiple users accessing multiple computers.

Designed for Defense Critical Applications

RNA devices are ruggedized and MIL-STD qualified. They also feature advanced failover configurations and builtin monitoring mechanisms to ensure continuous system availability.

Flexible Configuration

The RNA adapters are highly flexible and can be configured as a decoder, encoder, or both. They support simultaneous streaming of uncompressed and compressed data which enables remote collaboration and screen recording.

Multi-Desktops for Display Consolidation

The RNA decoders allow real-time compositing of multiple high-resolution sources per output display, supporting concurrent control of multiple remote computers from a single HMI. Compositing can also be used for displaying multiple sources on overview displays.

Specifikace

PRODUCT SPECIFICATIONS
Streaming Video Standards

IETF RFC4175 (uncompressed)

IETF RFC3984 (H.264)

Video

Up to 4x SL DVI-D at 1920x1200, 60Hz

Up to 2x DL DVI-D at 2560x1600 or 2048x2048

inputs/outputs in any combination

Input Devices

1x USB type B to host

4x USB type A to HMI devices

Audio

2x Line-in/Line-out

1x Mic-in

1x Headset out

Safe Pass-Through DVI, Audio, USB
GPIO

2x Discrete Inputs

2x Discrete Outputs

Network Connections 2x 10GBase-SR or 1000BASE-T
Dimensions 44.9 mm x 193.5 mm x 300.45 mm (1.77" x 7.62" x 11.83")
Weight +/- 1.64 Kg (excluding external power supply)
System Availability

Failover modes

Built-in monitoring (I/O's & network faults)

MTBF:  Naval Sheltered typ. 20000h @ 25°C

Setup/Control

Control REST API via https

Configuration via web service

Power 40 W (typical)



ENVIRONMENTAL CONDITIONS
Vibration operational

IEC 60068-2-64

0.5 g RMS, 10-100Hz random

Shock

IEC 60068-2-27

3g - 6 ms half sine

IEC 60068-2-31 drop only

Temperature

IEC 60068-2-1/2
Operating:  0 to 40°C
Storage:  -20 to 60°C

Humidity IEC 60068-2-78
85% @ 35°C non-condensing, duration 72 hrs
Altitude/Low pressure IEC 60068-2-13
operating up to 15,000 ft
non-operating up to 40,000 ft

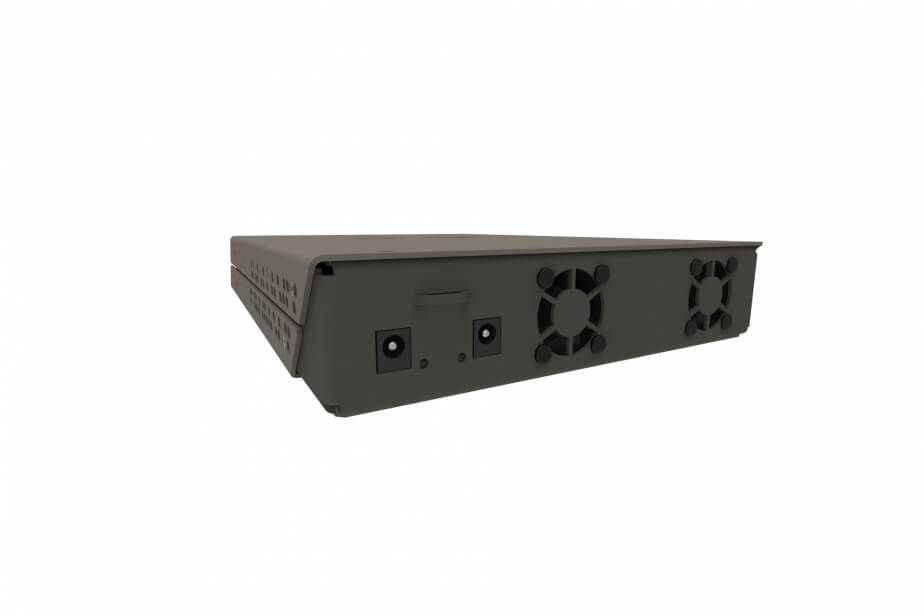

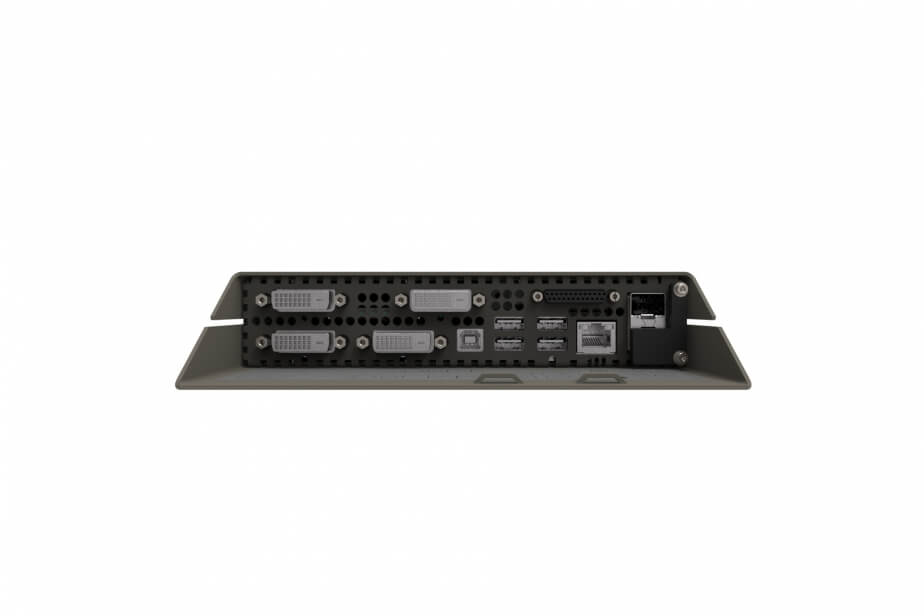

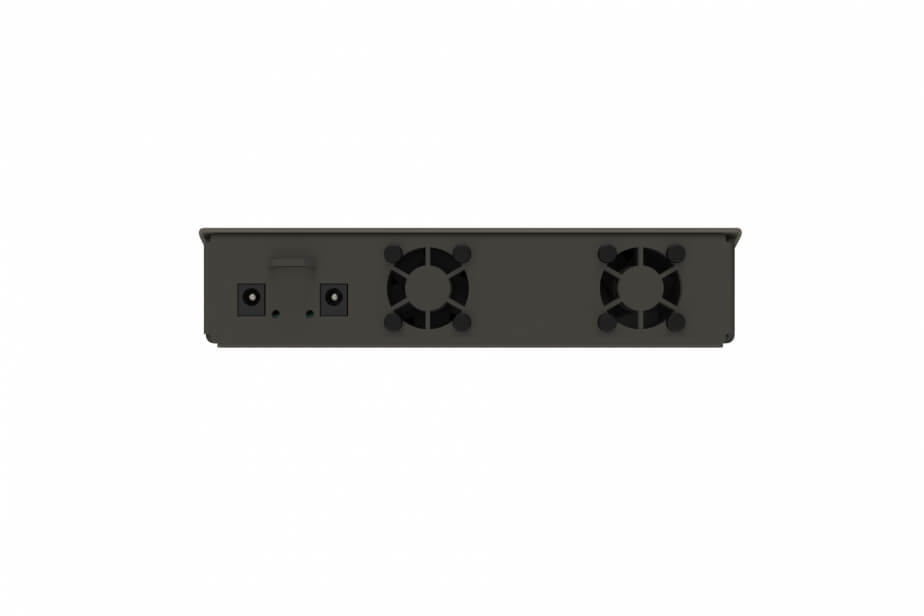

Fotogalerie
