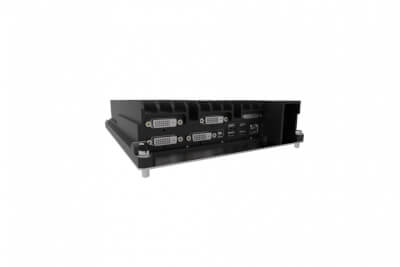

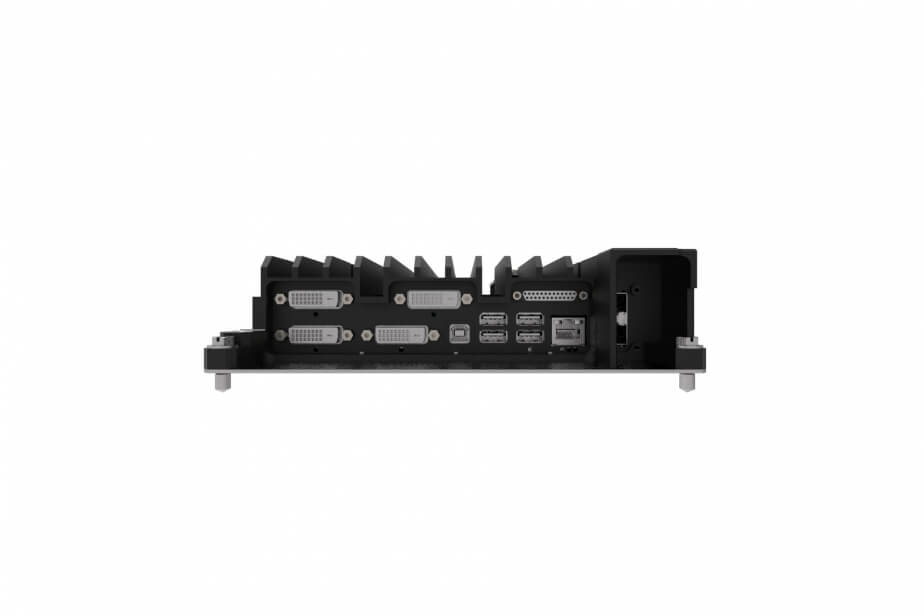

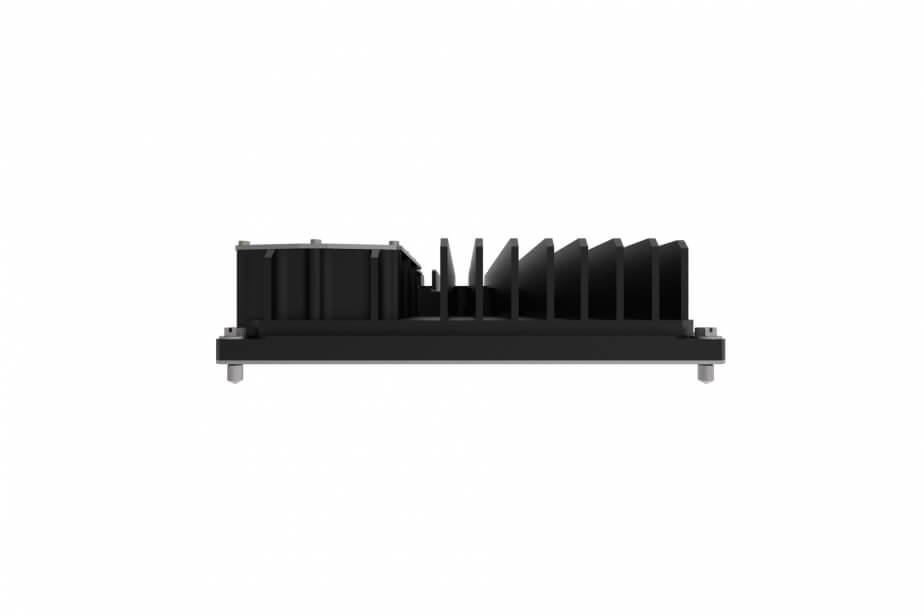

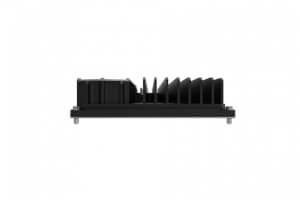

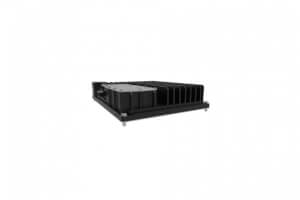

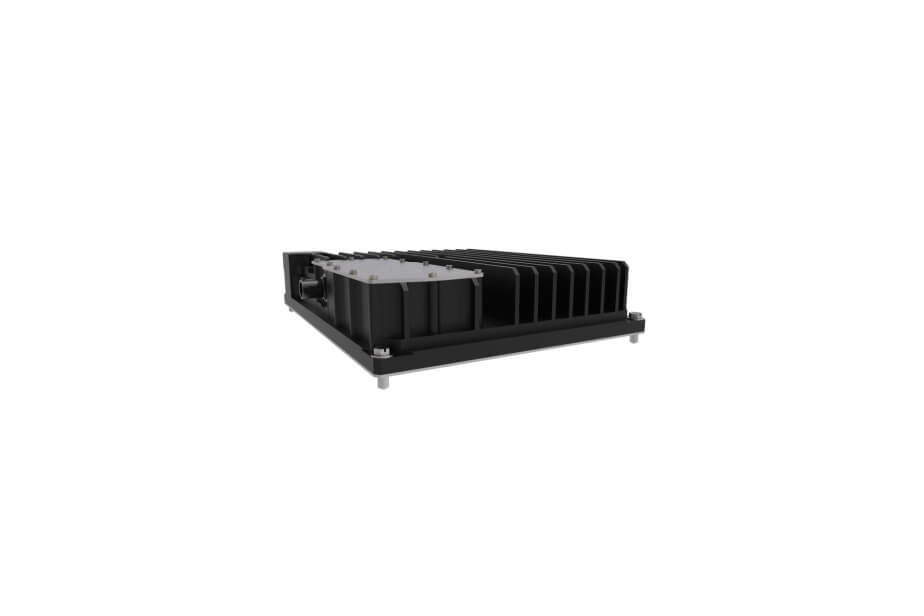

RNA 100 Series
Rugged Real-Time KVMA-over-IP Network Adapter
Deploy real-time, pixel-perfect video and multi-user desktop distribution with open-standard networks and streaming.
Rugged RNA Adapters encode and decode desktop content (video, audio, USB) to and from standard IP streams, enabling collaboration and recording in multi-user environments.
Real-Time KVMA Switching over Standard Networks
The RNA Series of Real-Time Network Adapters provides desktop distribution (DVI-D, audio, USB-HID) via standard IP streams and 10G network switches. These devices enable real-time pixel-perfect remote desktops for multiple users accessing multiple computers.
Designed for Defense Critical Applications
RNA devices are ruggedized and MIL-STD qualified. They also feature advanced failover configurations and builtin monitoring mechanisms to ensure continuous system availability.
The RNA adapters are highly flexible and can be configured as a decoder, encoder, or both. They support simultaneous streaming of uncompressed and compressed data which enables remote collaboration and screen recording.
Multi-Desktops for Display Consolidation
The RNA decoders allow real-time compositing of multiple high-resolution sources per output display, supporting concurrent control of multiple remote computers from a single HMI. Compositing can also be used for displaying multiple sources on overview displays.
|Streaming Video Standards||
IETF RFC4175 (uncompressed)
IETF RFC3984 (H.264)
Up to 4x SL DVI-D at 1920x1200, 60Hz
Up to 2x DL DVI-D at 2560x1600 or 2048x2048
inputs/outputs in any combination
1x USB type B to host
4x USB type A to HMI devices
1x Headset out
|Safe Pass-Through||DVI, Audio, USB|
2x Discrete Inputs
2x Discrete Outputs
|Network Connections||2x 10GBase-SR or 1000BASE-T|
|Dimensions||61 mm x 208 mm x 273 mm (2.40" x 8.17" x 10.73")|
Built-in monitoring (I/O's & network faults)
MTBF: Naval Sheltered typ. 20000h @ 25°C
Control REST API via https
Configuration via web service
|Power||40 W (typical)|
Sinusoidal (operating and non-operating)
5-50Hz: 1.27 mmp (0.05" p)
95% @ 40°C non-condencing
Up to 45°
|Altitude low pressure||MIL-STD-810G
operating up to 25,000ft
non-operating up to 40,000ft
