RFD-361
The RFD-361 is a Ruggedized 24” WUXGA (1920 x 1200) Multi-purpose display
Základní informace
- Cost effectiveness
- Long life
- Low weight yet extremely rugged design
- Drop in replacement for RFD-357
- Multi-Touch (10 simultaneous touches)
- LFC (LCD Flickering Compensation)
- Mission-critical operations in naval and unmanned environments
The RFD-361 is a Ruggedized 24” WUXGA (1920 x 1200) Multi-purpose display, designed and qualified as drop in replacement for the legacy RFD-357 rugged display. The RFD-361 features an intuitive projected-capacitive multi-touch screen supporting up to 10 simultaneous touches and gestures. Combined with the patented LCD Flicker Compensation (LFC) technology and a compact, lightweight yet extremely rugged design, it is perfectly suited for mission-critical operations in naval and unmanned environments. RFD-361 provides a 200 cd/m² screen brightness and a 2000:1 wide dimming range enabling it to operate during day and night time.
Specifikace
| Panel type | Active Matrix LCD |
| Panel active area | 24 inch diagonal |
| Resolution | 1920 x 1200 (WUXGA) |
| Backlight | LED |
| Dimming ratio | 2000:1 |
| Contrast ratio | 1000:1 |
| Brightness | 200 cd/m² (58fL) typical |
| Viewing angle | ± 89° horizontal and vertical |
| Touch | Projected Capacitive multi touch (10 simultaneous touches) |
| Signal Inputs | DVI-D / VGA |
| USB | USB2.0 for Touch communication |
| Vibration operational | MIL-STD-167-1 Type 1 |
| Shock | MIL-S-901D Grade A, Class I hard mount |
| Operational Temperature | MIL-STD-810G Meth 501.5 and Meth 502.5, Proc II high temperature: + 50°C (122°F) low temperature: 0°C (32°F) |
| Storage Temperature | MIL-STD-810G Meth 501.5 and Meth 502.5, Proc I high temperature: + 70°C (158°F) low temperature: - 40°C (-40°F) |
| Relative Humidity | MIL-STD-810G Meth 507.5, Proc II max 95% |
| Enclosure (Drip) | MIL-STD-810G Meth 506.5, Proc III |
| Altitude low pressure | MIL-STD-810G Meth 500.5, Proc I & II operating: between 6,000ft (813mbar) and -5,200ft (1219mbar) non-operating: between 15,000ft (570mbar) and -20,500ft (2026,5mbar) |
| Salt Fog | MIL-STD-810G Meth 509.5 on display FRONT |
| Sand & Dust | MIL-STD-810G Meth 510.5, Proc I & II on display FRONT |
| EMI / EMC | MIL-STD-461F - NAVY applications ( Submarine internal) |
| Controls | OSD/web interface SNMP remote display control |
| Indicators | Green ‘Power’ LED, Red ‘Fault’ LED |
| OSD | On Screen Display & web interface |
| Power | 110 - 230VAC 47 - 63Hz |
| Power consumption | maximum 65W (at full display brightness) |
| Weight | 10.90 ± 0.25 kg (24.0 ± 0.55 lbs) |
| Cooling | Passive |
| Finishing | Bezel color: Black RAL 9005 Surface treatment: ROHS compliant Chromated Cr3 (MIL-DTL-5541 type II Class 3) |

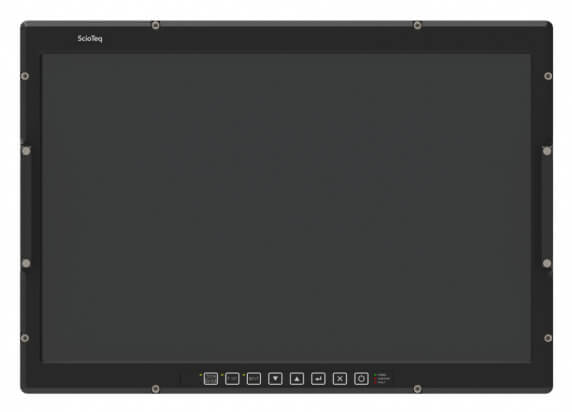

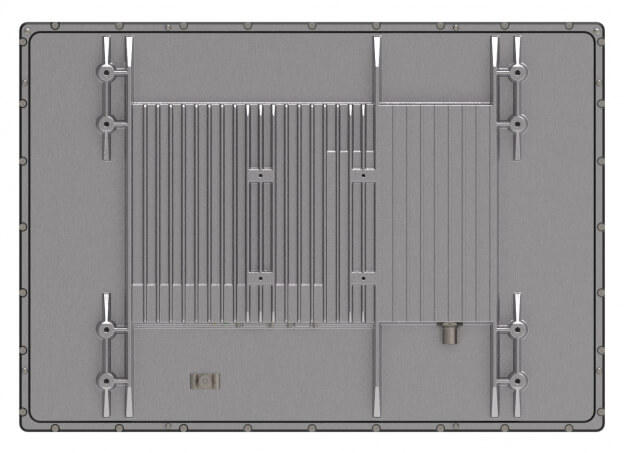

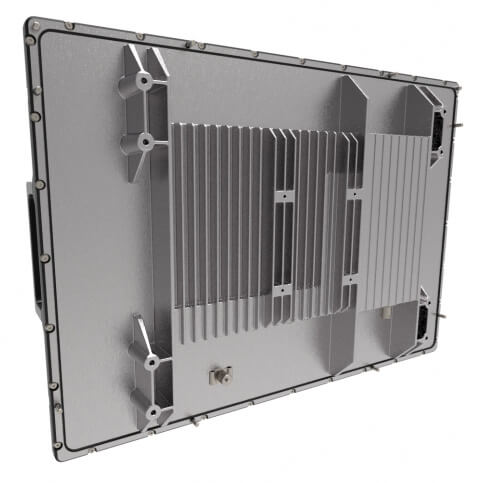

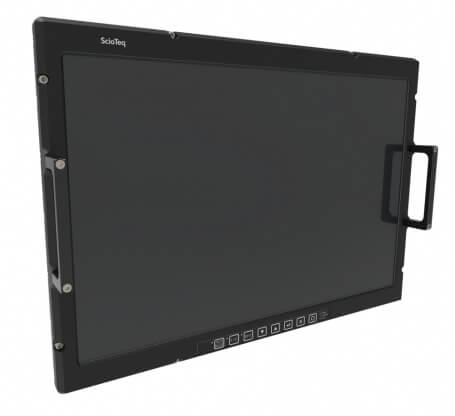

Fotogalerie
