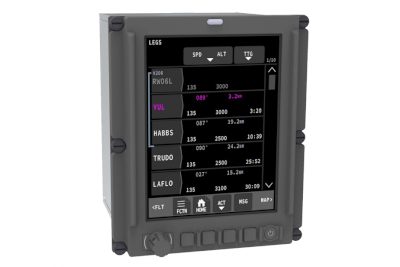

RDU-3045 6.4” (4” x 5”) Rugged Display Unit for Harsh Environments

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Best-in-class true 8-bit AMLCD for superior color rendering
  • Brightness >300fL, making it suitable for installation in helicopters and open cockpit aircraft
  • NVIS Class B compatibility
  • Guaranteed brightness and color range over the operating temperature of the display and over its lifetime
  • Multiple video inputs
  • 5.75" DZUS rack mountable
  • Quiet by design, thanks to its closed and fan-less architecture

The RDU-3045’s 4"x5" (6.4") proprietary Active Matrix Liquid Crystal Display and LED backlight technology deliver a visual performance second to none: high color depth, contrast ratio and superior color stability, very wide viewing angles and superior brightness modes. This allows the display to be mounted in portrait or landscape both vertically in front of the pilots and tilted horizontally in the pedestal, assuring perfect cross-cockpit vision.

And there is even more: the optical quality is guaranteed over the complete operating temperature range and lifetime of the display, thanks to ScioTeq’s proprietary control mechanisms. As an option, the light can be collimated to reduce reflections on the windshield or canopy.

Its multiple digital video and control interfaces allow for an easy integration with several sources. And last but not least, the optional touchscreen enables the integration of various cockpit functions reducing overall cockpit system costs and space requirements.  Therefore this display is ideal in Control Display, HUD repeater, ... applications.

The software and firmware of the RDU-3045 are developed according to DO-178 and DO-254 respectively, up to and including Design Assurance Level (DAL) A.

Specifikace

ELECTRO-OPTICAL
Panel type Active matrix LCD (normally black)
Panel active area 6.4" diagonal (4" x 5")
Panel resolution 1024 x 768  (XGA)
Viewing angle H: +/-55°
V: +/-35°
Can be tailored to program requirements, such as the addition of specific collimation to reduce canopy reflections, etc.
Backlight LED backlight
Luminance 0.1 to >300fL (non-NVIS mode)
0.03 up to 2fL (NVIS mode)
Luminance stabilized over the life time and the complete temperature range of the display
Sunlight readability Contrast ratio >10:1 @ 10,000 fC
NVG compatibility MIL-STD-3009 Type I/II, NVIS Class B
Heater Heater for display startup at extremely cold temperatures (optional)



INTERFACES
Video inputs (1) Two video inputs as default
DVI, A818 or SMPTE-292 (HD-SDI) (other combinations on request)
Inputs/Outputs (1) Video source/mode selection and BIT data retrieval via either RS-422 or A429
Discretes for display configuration, lighting mode selection, etc.
ARINC 429 control, RS-232 maintenance interface



CONTROLS
Brightness control ALS sensors, bezel control, or remote
Bezel controls (1) Available with custom bezels
Touch screen Multi-touch capability through PCAP with built-in mechanisms for certifiable touch interface (optional)



GENERAL SPECIFICATIONS
Power supply 28VDC, MIL-STD-704A
Power consumption <30W @ 200fL (20C ambient)
Weight <2 kg / 4.4 lbs
Cooling Passive cooling (no requirement for forced external cooling) - fan-less design
Dimensions (WxHxD) (1) 5.75" (Width) x 6,75" (Height) x 1.5" (Depth excl. connector flange)
Software developed to RTCA/DO-178, capable of supporting DAL-A functions
Hardware developed to RTCA/DO-254, capable of supporting DAL-A functions



ENVIRONMENTAL CONDITIONS
Compliance DO-160G; MIL-STD-810G & MIL-STD-461E (optional)
High temperature +71C operational / +85C short-time / +85C ground survival
Low temperature -45C operational / -55C ground survival
Altitude 50,000 ft
Water proofness, salt fog, sand & dust Withstands the harshest environments - closed and fan-less unit design
