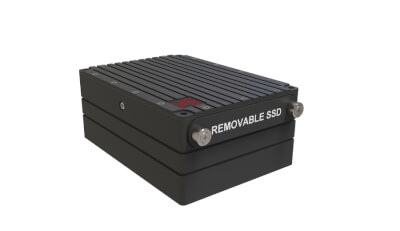

RCC-APEX(RD)

The RCC-APEX(RD) is a highly rugged compact computer designed for military aviation, navy and army vehicles. Rugged to survive severe environments and fully sealed, it will not be affected by heat, sand, dust, water spillage or shock. Similar to the MILCO

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

Rugged durable compact packaging, Field replaceable sealed SSD, MIL standard compliant, I/O configurable to address all applications, Fanless design, Connectors type configurable, Extended temperature range, Windows or Linux OS, SSD, RAM and CPU configurable to address all requirements.

  • Machine aluminum packaging, MIL standard compliant
  • I/O configurable to address all applications
  • Sealed panel for field access to a removable SSD
  • Connectors type and location configurable
  • Extended temperature range

Technické specifikace

CPU  Atom E3845 1.9 GHz, 2MB cache
Memory  8 GB DDR3L
Storage 256 GB SSD field removable
 MMI ON/OFF Power button
Connectors Glenair Mighty Mouse
Dimensions 5.91” (W) x 3.94” (H) x 1.7” (T)
150mm (W) x 100mm (H) x 43mm (T)
Weight 1.75 lbs (0.8 kg)
Power [9-18 VDC]
O/S Windows 7, Windows 10
 Linux RHE 7.0 and above
I/O USB (x2)
Gig Ethernet (x2)

Environmentální výkonnost

Operating Temp.  -40 °C to 65 °C (extended temp option)
Storage Temp. -40 °C to +75 °C
Humidity 95 % @ 40 deg C
Altitude  0 to 45000 feet
Shock  40g / 15 ms , half sine
MIL S 901D
Vibration operating vibration 5G RMS 5 to 2000 Hz
Ingress Protection  IP65
EMC MIL-STD-1275B, MIL-STD-461
