RA3T

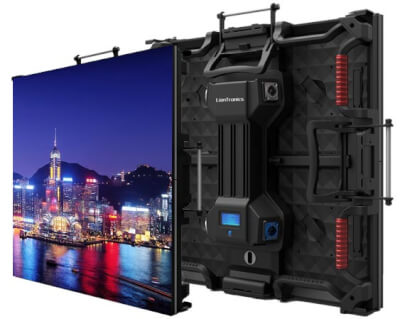

Venkovní LED displej pro rentalové aplikace.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Rozteč bodů: 3,9 mm
Rozměry panelu: 500 x 500
Svítivost (nits): 5 000
Hmotnost: 9 kg
Specifikace
| Item | Value | |
|---|---|---|
| Pixel Pitch(mm) |
3.9
|
|
| Pixel Density(pixels/㎡) |
65536
|
|
| Pixel Configuration |
SMD 3 in 1
|
|
| Viewing Angle(Deg.) |
160(H)/160(V)
|
|
| Brightness(nits) |
≥5000
|
4000
|
| Grey Level(bit) |
12/14/16
|
|
| Contrast Ratio |
5000:1
|
8000:1
|
| Refresh Rate |
1920/2880/3840
|
|
| Module Size(mm) |
250(W)×250(H)
|
|
| Module Size(inch) |
9.84(W)×9.84(H)
|
|
| Panel Dimension(mm) |
500(W)×500(H)×104(D)
|
|
| Panel Dimension(inch) |
19.69(W)×19.69(H)×4.09(D)
|
|
| Panel Resolution(pixels) |
128×128
|
|
| Voltage(V) |
AC 100/240
|
|
| Panel Material |
Die-casting aluminum
|
|
| Panel Weight(kg) |
9
|
|
| Avg.Power Consumption(W/㎡) |
225
|
200
|
| Max.Power Consumption(W/㎡) |
890
|
800
|
| Serviceability |
Front/Rear
|
|
| Protection Grade |
IP65/IP54
|
|
| Operating Temp/Humidity(℃/%RH) |
-20~+50/10~90
|
|
| Storage Temp/Humidity(℃/%RH) |
-40~+60/0~90
|
|
| Lifetime(hours) |
100000
|
|
| Compliant Standard |
CE,ETL,FCC,RoHS
|
|
