QBOX 1010
Fanless Box PC s procesorem Intel® Atom N270 a dvěma porty RS232
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
- Fan-less Design and 0.6-Liter Compact Sized
- Intel® Atom Processor N270
- Intel® 945GSE + ICH7-M
- Support DDR2 533 SODIMM up to 2GB
- Support 1x DVI-I, 1x GbE, 1x eSATA, 4x USB and Audio
- Support 2x COMs and Digital I/Os,
- Support 1x 2.5” SATA HDD or 1x Internal Compact Flash Type II slot
| Construction | Aluminum extrusion |
| Memory | DDR2 533 SO-DIMM up to 2GB |
| System Board | Proprietary motherboard Intel® Atom N270 Processor 945GSE / ICH7-M |

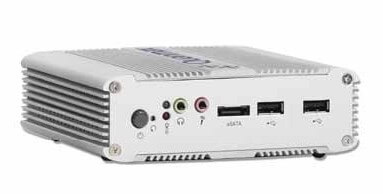

| I/O Panel | Front I/O panel: |
| 1x Phone Jack for Line-Out | |
| 1x Phone Jack for MIC-In | |
| 1x Push button for power on/off | |
| 1x Push button for reset | |
| 1x POWER LED | |
| 1x HDD LED | |
| 2x USB2.0 | |
| 1x eSATA connector | |

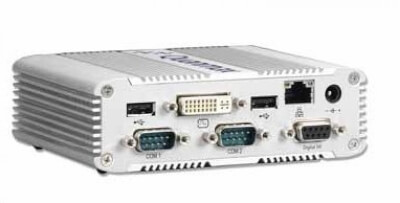

| Rear I/O panel: | |
| 1x DC JACK for DC12V input | |
| 1x DVI-I connector for CRT & DVI output | |
| 2x USB2.0 | |
| 1x RJ-45, GbE port | |
| 2x DB9 male connectors for COMs | |
| (2x RS-232/422/485, 5V/12V voltage selected by BIOS setting) | |
| 1x DB9 female connector for digital I/Os | |
| Storage | 1x 2.5” SATA HDD or 1x Internal Compact Flash Type II slot |
| Power Supply | Input: 100-240 VAC, 50-60 Hz |
| Output: 30W, +12VDC/2.5A output | |
| Power Consumption | 20W (without USB and eSATA devices) |
| Cooling | Fanless and Internal Heat Pipes |
| Temperature / Humidity | Operating: 0°C to 40°C, 0%-90%, non-condensing |
| Storage: -20°C to 80°C, 0%-90%, non-condensing | |
| Dimensions | 130 x 40 x 110 mm (WxHxD) |
| Weight | 750 g |
| Mounting | Wall mount, VESA mount, Din Rail mount |
| Certifications | CE, FCC Class A |
