Certified Mission Computer

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Powerful processing and graphics module with substantial growth capability
  • ScioTeq’s MOSArtTM middleware platform for hosting multiple software applications at different DAL levels (A to E)
  • Large array of Input and Output interfaces – reduces the need for external data concentration
  • Quiet by design, thanks to its closed and fan-less architecture
  • Continuous operations at up to 70°C without external cooling
  • Quiet by design, thanks to its closed and fan-less architecture

Product description

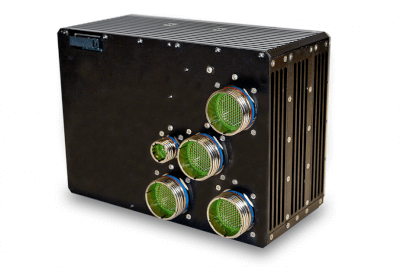

Using a powerful processing platform based on a Common Processor Module (CPM) and optional Graphic Processor Module (GPM), the PU-3000 is an open system very well suited for hosting today’s demanding applications. These applications run on the ARINC 653 based display platform and ScioTeq’s MOSArtTM (Modular Open System Architecture) middleware.

The PU-3000 is a multi-capability Processing Unit that can be used as a Symbol Generator in both new and retrofit Electronic Flight Instrument Systems. The unit is designed to process high-criticality data, to generate various display formats, such as PFD, ND, or EID.

Modular by design, the PU-3000 can also be used as a common computing platform in a large variety of functions with or without graphics capability. It allows customers to simultaneously host combinations of software applications that can be customer proprietary, ScioTeq proprietary, such as Primary Flight Display (PFD), Navigation Display (ND), Synthetic Vision System, etc., and from 3rd parties. Importantly, these hosted applications can be individually designed to varying Design Assurance Levels (DAL), up to and including DAL A, reducing development and integration costs.



Common processor module (CPM) Freescale QorIQ P3041
Optional Graphic processor module (GPM) Up to 2 times M9 (Mobility Radeon 9000) performance
Integrity of the graphics solution segregated from any knowledge of the hosted applications
RTOS ARINC-653 Real Time Operating System
ScioTeq MOSArtTM open platform Allows development and hosting of customer supplied, 3rd party or ScioTeq applications. Can host multiple applications at different DAL levels simultaneously.


Power supply 28VDC, MIL-STD-704A
Power consumption <70W with optional GPM installed
Weight 6.8 kg / 15 lbs with optional GPM installed
Cooling Passive cooling (no requirement for forced external cooling) - fan-less design
Built-in testing PBIT / CBIT
Software RTCA/DO-178C up to Design Assurance Level (DAL) A
Hardware RTCA/DO-254 up to Design Assurance Level (DAL) A


Video inputs / Outputs (1) Inputs: 1 x RGB, 1x NTSC
Outputs: 2x DVI-D, 2xRGB
Digital Interfaces (1) Arinc 429, Arinc 708A, RS-422/485, IEEE-1394B, CAN Bus (Arinc 825), Ethernet, MIL-STD-1553 (optional)
Analog Interfaces (1) Sensors, transducers, potentiometers, thermocouples, synchros, discreets, etc.


Compliance DO-160G; MIL-STD-810G & MIL-STD-461E  (optional)
High temperature +70C operational / +85C short-time / +85C ground survival
Low temperature -45C operational / -55C ground survival
Altitude 55,000 ft
Waterproofness, salt fog, sand & dust Withstands harsh environments - closed and fan-less unit design
