Orca Tactical Terminal

Extremely rugged, flexible customizable system concept, long-term availability

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

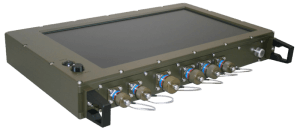

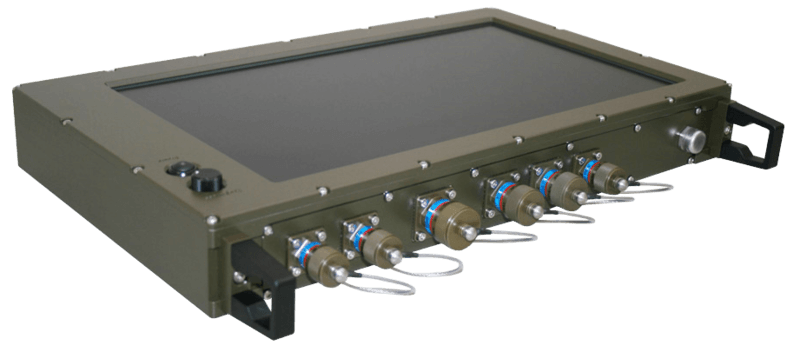

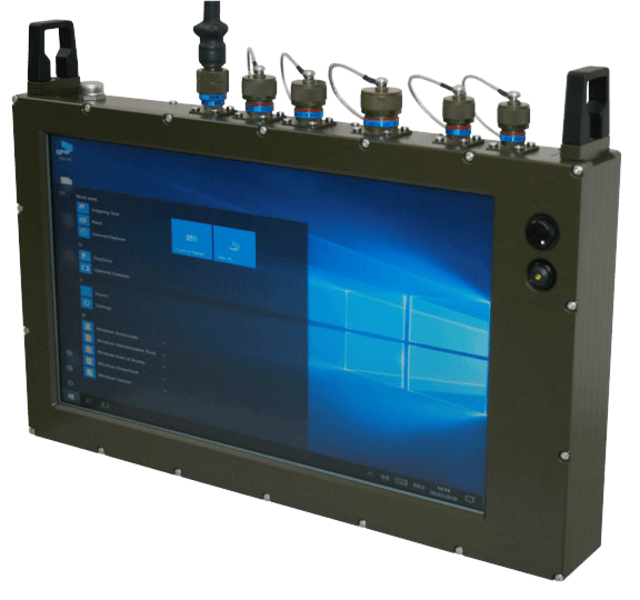

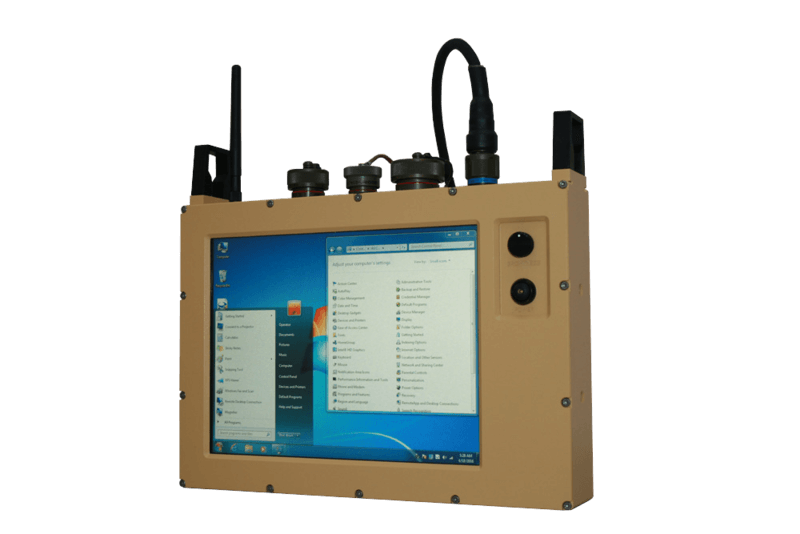

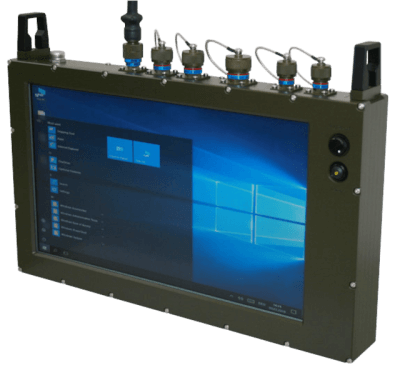

The beltronic-IPC ORCA Tactical Terminal is built to be used in military and industrial areas which call for this kind of robust and reliable system.

The compact and very solid aluminum housing meets industrial and MIL-810 environmental requirements.

The system complies to high EMC/EMI standards. It operates on 10V DC to 36V DC.

The modular design concept of the ORCA Tactical Terminal allows the building of a great variety of customized versions. Changes in the mechanical structure and various hardware options are available even on small quantities to meet the customer applications.


Housing Rugged aluminum housing with anti corrosion treatment powder coating in all RAL colors
CPU Intel Atom or Core i5 / i7 mobile CPU
RAM Up to32GB DDR3
Storage 120GB up to 500GB 2.5" SSD
Display 10.4" WXGA LED Display (1024x768), day light readable with anti glare
Touch Optional
OS Windows 7 or 10, Linux
Power 10-36VDC
IP Protection IP65
MIL Connectors MIL I/O Connectors for all I/O ports according to customers specificatio
MIL STD 810G (optional 1275B or 461F)
