nROK 6222
Fanless 4-CH PoE Rolling Stock Computer with Intel Atom® E3950
Základní informace
- Intel Atom® processor quad core E3950, up to 2.0GHz
- 4 x PoE (802.3af/at, max. 60W)
- Built-in u-blox-M8N GPS
- Three video outputs, one VGA and two HDMI
- EN 50155, class OT4 conformity
- 3 x mini-PCIe socket expansion
- Dual external storage (compatible with 15mm disk)
- 1 x USB DOM to run OS
- 1 x SD card for exporting and backing up data
- Optional power isolation kit support
nROK 6222, based on Intel Atom® quad core processor E3950 (up to 2.0GHz), is specifically comply with stringent EN50155 standard in rugged, fanless and compact mechanism. nROK 6222 provides complete communication capability between train and computer with build-in CAN BUS 2.0B interface. Equipped with intelligent power management, nROK 6222 can be waked on by ignition, RTC timer or SMS message remotely. nROK 6222 supports 4 x 802.3at/3af (Max. 60W) PoE ports to connect with IP cameras. The design of 2.5" removable SSD and SD memory card helps to access storage easily. nROK 6222 keeps the flexibility to meet the demand for video surveillance in train application. Moreover, nROK 6222 is protected against sudden power surges through an attachable VTK6222-PK power isolation kit.
Specifikace
| CPU | Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core |
| Memory | 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. default 4GB |
| Video Output |
Chipset Intel® HD graphics 505 |
| Storage | 2 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive) 1 x SD memory card 3.0 (externally accessible) 1 x USB EDC for USB DOM |
| Expansion | 1 x Full size mini-PCIe socket (USB 2.0) for LTE module, BOM optional M.2 3042 Key B socket (USB 2.0, USB 3.0) for LTE/5G NR module with 2 x external SIM 1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0) 1 x Half size mini-PCIe socket (USB 2.0, PCIe 2.0) |
| GNSS and On Board Sensor | 1 x Default U-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou G Sensor (3-axis, 10-bit resolution) |
| LAN and Power over Ethernet | 4-Port LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W 1-Port LAN, 10/100/1000 Mbps I210-IT GbE |
| Security | TPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional) |

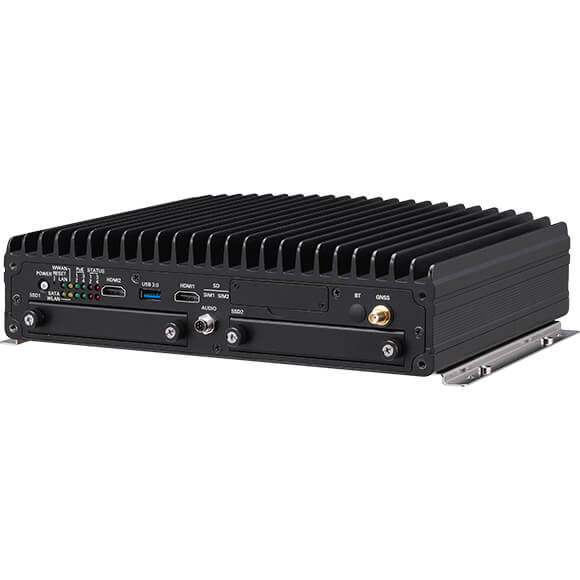

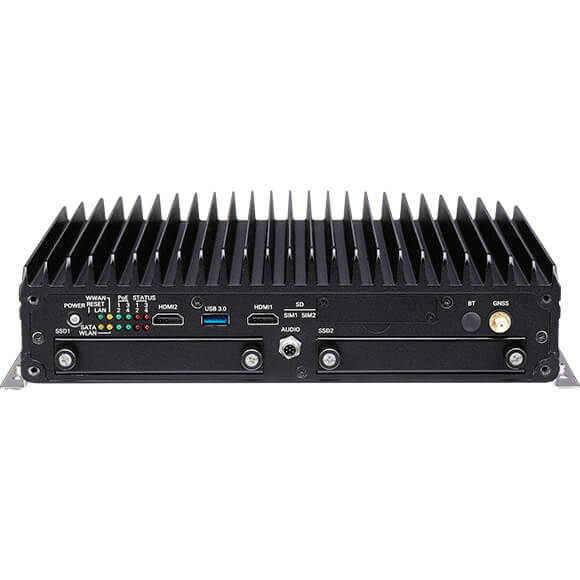

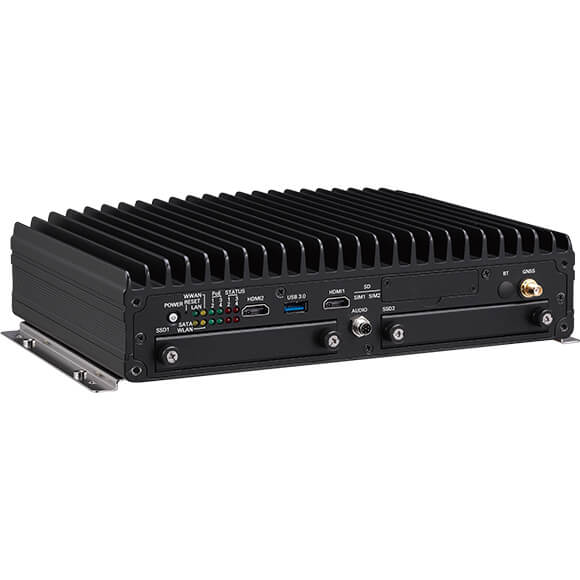

| I/O Interface-Front | 12 x LED indicators (including 3 x programmable LED) 2 x externally accessible SIM card socket with cover 2 x 2.5" removable SSD tray 1 x externally accessible SD card socket with cover 1 x reset button 1 x power button 1 x USB 3.0 type A (5V/0.9A) 2 x HDMI 1.4b 1 x M8 (6-pin) for 1 x Mic-in (mono), 1 x Line-out (Stereo) 2 x SMA antenna |

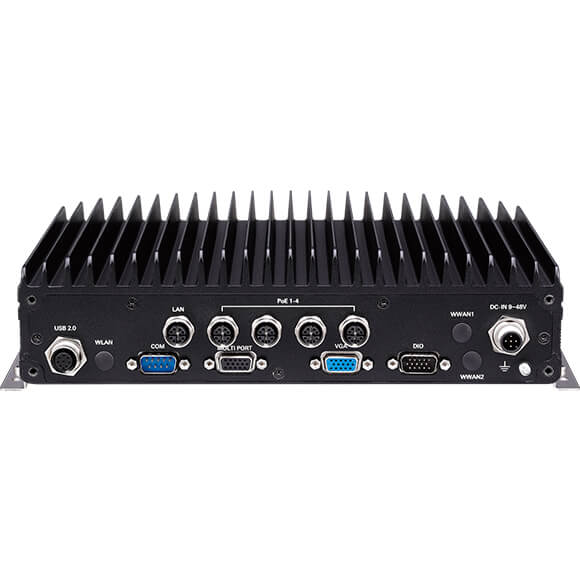

| I/O Interface-Rear | 1 x M12 (5-pin) DC input with ignition - 24 / 36 VDC (9~48V), non-isolation 1 x M12 X-coded LAN port, 10/100/1000 Mbps 4 x M12 X-coded PoE 802.3af/at (max. 60W) 1 x VGA 1 x M12 with two USB 2.0 1 x DB9 full RS232 (isolation) 3 x SMA antenna 1 x DB15 (DIO) - 4 x DI with isolation - 4 x DO with isolation - Vin, GND for GPIO 1 x DB15 (MULTI PORT) - 1 x RS422/RS485 - 1 x RS232 (TX/RX) - 1 x CAN 2.0B |
| Power Management & Software Support | Power input 24/36 VDC w/o isolation Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Support S3/S4 suspend mode10~255 seconds WDT support, setup by software SDK (Windows/Linux) including utility and sample code |
| Operating System | Windows 10/Linux |
| Dimensions | 260mm (W) x 196mm (D) x 66.5mm (H) |
| Weight | 3.4kg |
| Environment | Operating temperatures: - EN 50155, class OT4 (-40~70°C), 85°C for 10 minutes (w/ industrialSSD) with air flow Relative humidity: 10% to 90% (non-condensing) Vibration (random) - 2g@5~500 Hz (in operation, SSD) Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
| Standards/Certifications | CE FCC Class A EN 50155:2017 - Ambient temperature EN 50155, Class OT4 (-40~70°C), 85°C for 10 minutes - Interruptions of voltage supply class S1 - Supply change over class C1, C2 - EMC EN 50121-3-2: 2016 - Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30 - Shock and vibration IEC 61373 Class B - Protective coating class PC1 (PC2, by request) EN 45545-2: 2013+A1:2015 |
