nROK 1020

Intel Atom® x5-E3930 processor Fanless Railway Computer with EN50155 Conformity

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Compact and fanless design
  • Built-in GPS receiver with optional dead reckoning function
  • Variety of wireless communication options
  • Smart power management with Ignition on/off delay via software control and low voltage protection
  • Wide range DC input from 9~36V
  • EN50155 Class TX conformity
  • Compliance to EN45545-2
  • 5 x RS232 and 2 x RS485


CPU Intel Atom® x5-E3930 dual core 1.8GHz
Memory 1 x 204-pin DDR3L SO-DIMM socket support 1867MHz up to 8GB. Default 4GB
Expansion 1 x mini-PCIe socket (USB)
1 x mini-PCIe socket (PCIe + USB + mSATA)
Function 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning
Built-in G-sensor
Built-in TPM

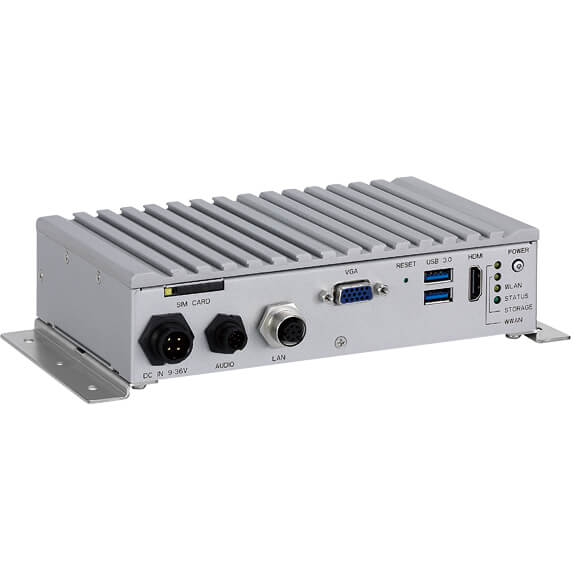

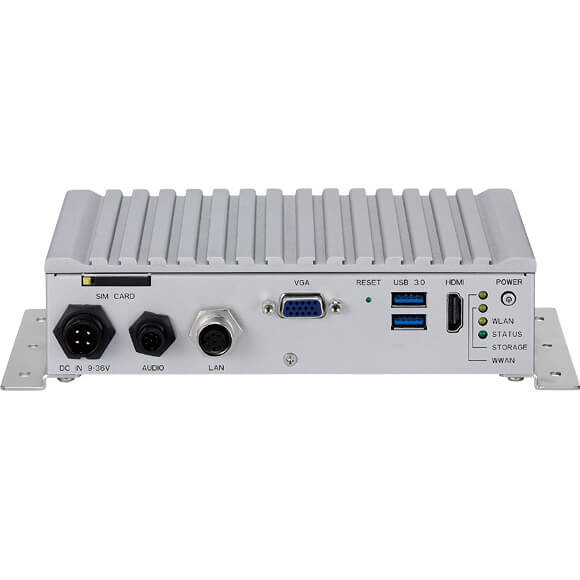

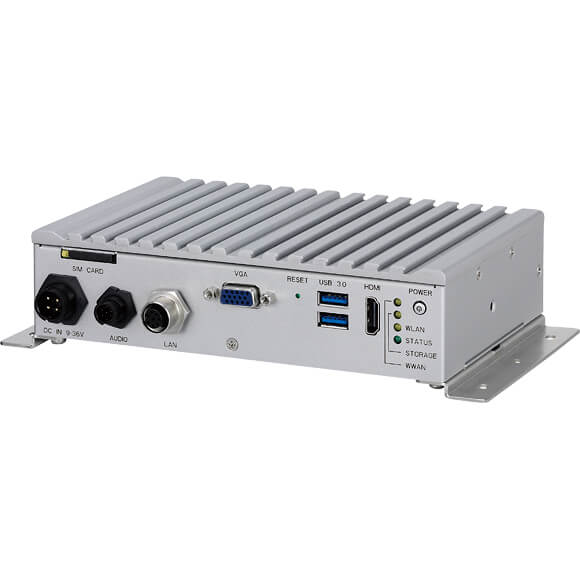

I/O Interface-Front

1 x power button
4 x LED indicators for Status (programmable),Storage, WLAN and WWAN
1 x system reset button
2 x type A USB 3.0 compliant host, supporting system boot up
1 x DB-15 VGA
1 x HDMI
1x external SIM card socket
1 x circular connector for 9~36VDC input with ignition and 20W typical power consumption
1 x circular connector for Audio-In and Audio-Out
1 x M12 connector for 10/100/1000Mbps Ethernet

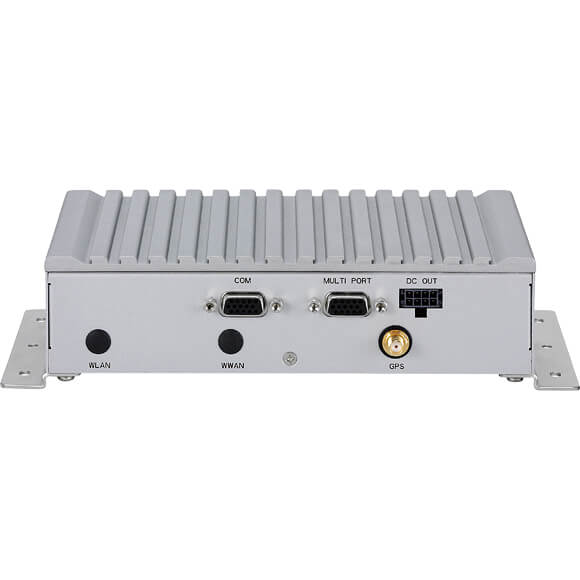

I/O Interface-Rear 1 x 12V/2A DC output, SMBus, power button
1 x DB15 COM port for 4 x RS232 Tx/Rx and 2 x RS485
1 x DB15 for multi port
- 1 x CAN2.0
- 1 x RS232 Tx/Rx
- 1 x odometer and direction for optional DR
- 5 x programmable DIO
   Input voltage (internal type): 5VDC TTL (default)
   Input voltage (source type): 3~24VDC
   Digital output (sink type): 5VDC TTL (default), max current: 20mA
   Digital output (source type): 3~24VDC
3 x Antenna hole for SMA-type antenna (WWAN/WLAN/GPS)
Expandable Storage 1 x 2.5” SSD SATA 3.0
1 x mSATA
Operating System Windows 10
Linux YOCTO(by request)
Power Management Selectable boot-up & shut-down voltage for low power protection
HW design ready for 8-level delay time on/off at user's self configuration
Power on/off ignition, software detectable
Support S3, S4 suspend mode
Dimensions 185mm (W) x 120mm (D) x 45mm (H) (7.3" x 4.7" x 1.8")
1 kg (2.20 lbs)
Construction Aluminum top case with sheet metal
Environment Storage temperatures: -40°C to 85°CRelative humidity: 10% to 90% (non-condensing)Vibration:
Vibration (random): 2g @5~500 Hz
Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck
Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test
Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g
Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75g
Standards/Certifications CE approvalFCC Class A24VDC EN50155 Class TX conformity
