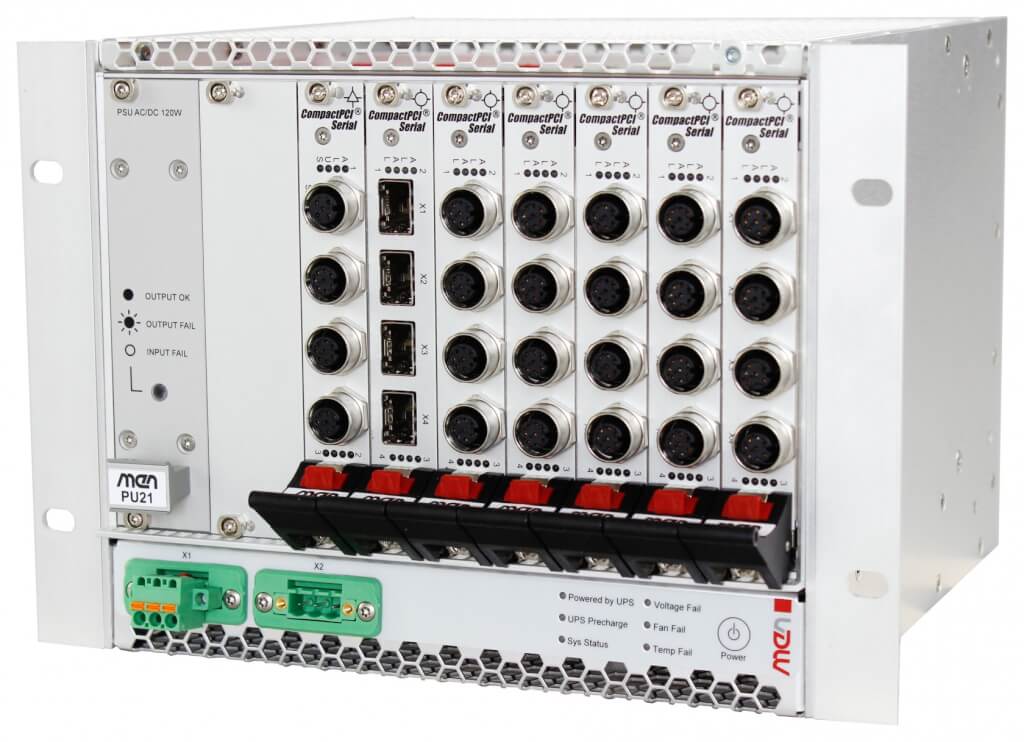

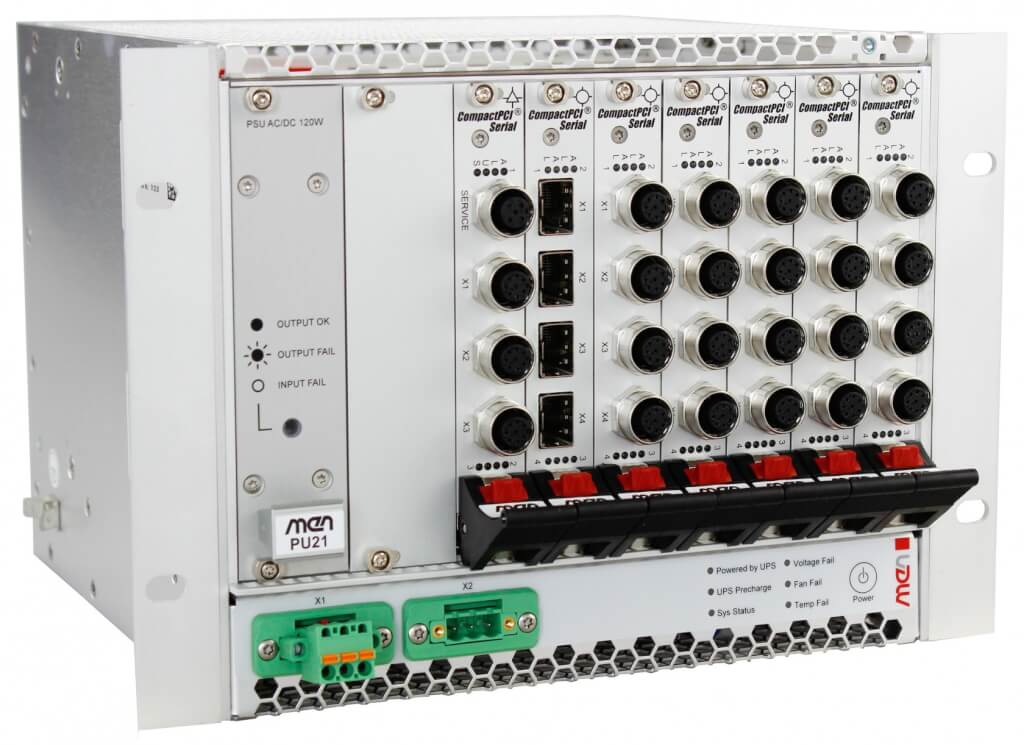

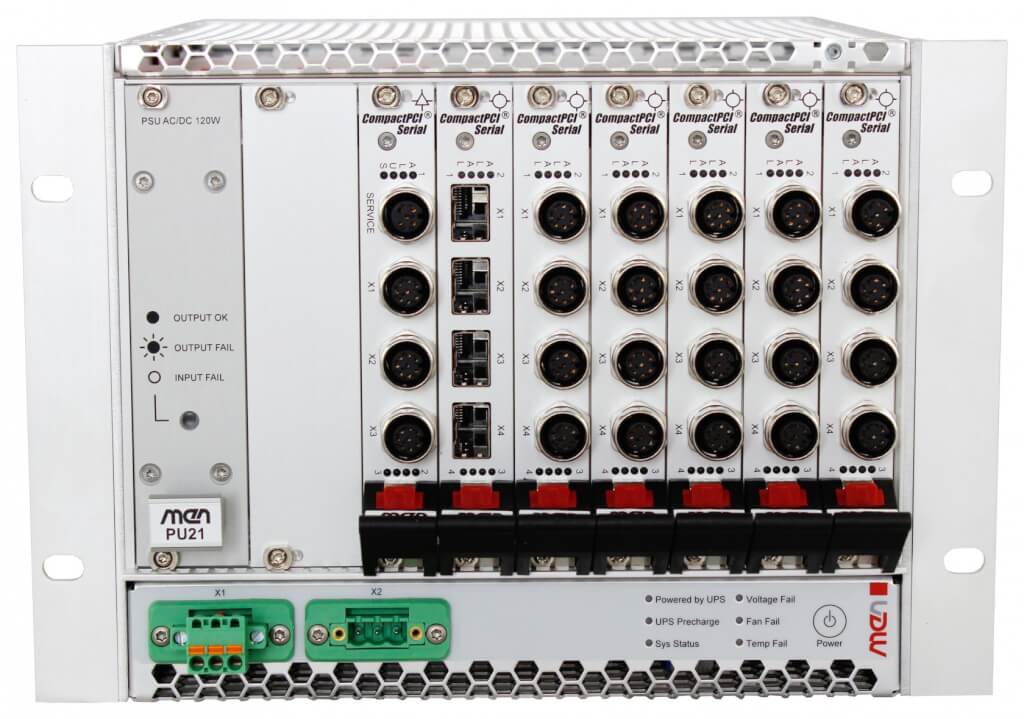

NH30 - Rugged Fully Managed 29 Gbit/s Ethernet Switch

• Compact 4U, 40 HP turn-key Layer 2/3 switch solution
• Rack-mounted or wall-mounted
• Fanless operation or forced-air cooling
• Single or redundant power supplies or uninterruptible power supply (AC or DC)
• Up to six slots for RJ45, M12 (A or X-Coded) or SFP line cards
• PoE+ / non-PoE power sourcing Ethernet ports in mixed configuration
• Switch firmware production-ready installed
• System supervision (temperature, fan, power supply) optional
• EN 50155 class TX compliant (railways)

The NH30 is a turn-key 4U 40 HP network switch platform with carrier grade Layer 2 and Layer 3 VLAN routing capabilities offering a seamless throughput of 29 Gbit/s.
